mpn:
brand:
manufacturer:
MPN:
Description:

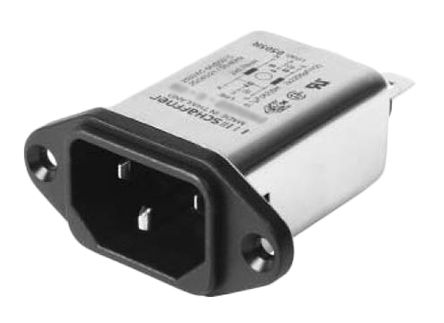

IEC Inlet, 1-Ph, Medical, 15A, Fast-on, NO Resistor, FN 9222 Series
Preferred Price:
7.53
Price:
7.53
Min Simple Price:
3.332
Absolute Min Price:
5.73
Min Price:
5.73
qty:
205
simpleSku:
OTYwMw:::FN9222B-15-06
sku:
OTYwMw::7S:FN9222B-15-06@y0
condition:
11
seller:
Arrow
amzMan:
schaffner emc
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accomodates a Fuse | No |
| Alternate Mfr Part Number | 803781 |
| Approval Agency | CQC, CSA, ENEC, UL |
| Base Product Number | FN9222 |
| Brand | Schaffner |
| Category | Connectors, Interconnects |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades |
| Current Rating | 12 A |
| Current Rating - Appliance Inlet, Current Rating - Circuit Breaker, Fuse Holder, Drawer, Panel Thickness, Switch Features, Voltage Rating - Appliance Inlet | - |
| Current Rating, Current Rating - Filter | 15A |
| Depth | 43.9mm |
| Description | PWR ENT RCPT IEC320-C14 PANEL QC |
| Detailed Description | Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange |
| Digi-Key Part Number | 817-2534-ND |
| Features | Bleed Resistor, Front or Rear Side Mount |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Gender | Male |
| Height | 48mm |
| IEC Connector Type | C14 |
| Inductance | 0.11 mH |
| Ingress Protection, IP Rating | IP40 |
| Leakage Current | 373 ?A |
| Line to Ground Hipot Rating | 2500 VAC |
| Line to Line Hipot Rating | 2000 VAC |
| Manufacturer Product Number | FN9222B-15-06 |
| Manufacturer Standard Lead Time | 16 Weeks |
| Manufacturer, Mfr | Schaffner EMC Inc. |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Flange Mount, Panel Mount, Panel Mount, Flange |
| Number of Positions | 3 |
| Operating Frequency | 0 ? 400Hz, DC to 400 Hz |
| Package | Tray |
| Panel Cutout Dimensions | Rectangular - 28.50mm x 21.50mm |
| Phase | 1 Phase |
| Primary Type | AC, General Purpose |
| Product Status | Active |
| Schaffner Part Number | 298-297 |
| Series | FN 9222, FN 9222 Series |
| Termination | Quick Disconnect, Quick Connect - 0.250" (6.3mm) |
| Termination Method | Faston |
| Type | Filter |
| Version | Medical |
| Voltage Rating | 250 V ac, 250 V |
| Width | 22.5mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | FN 9222B-15/06 | 3.332 | 3.332 | 1 | 205 | Schaffner | 3.332 @ Qty: 1+ | |||
| Verical | FN 9222B-15/06 | 3.365 | 11.441 | 7 | 205 | Schaffner | 3.365 @ Qty: 7+ | |||
| Onlinecomponents.com | FN9222B-15-06 | 3.82 | 3.82 | 1 | 227 | SCHAFFNER EMC | 3.82 @ Qty: 1+ | |||
 | RS Delivers | 882-1587 | 6.876 | 6.876 | 1 | In Stock | Schaffner | 6.876 @ Qty: 1+ | ||
 | Digi-Key | 1997393 | 7.15 | 7.15 | 1 | 64 | Schaffner EMC Inc. | 7.15 @ Qty: 1+ | ||
| us.rs-online.com | 70027533 | 7.35 | 7.35 | 1 | 358 | Schaffner | 7.35 @ Qty: 1+ | |||
 | Newark | 72AC5736 | 7.35 | 7.35 | 1 | 185 | SCHAFFNER | 7.35 @ Qty: 1+ |
