SCHLAGE A10S ORB 605

B000R8HJ36

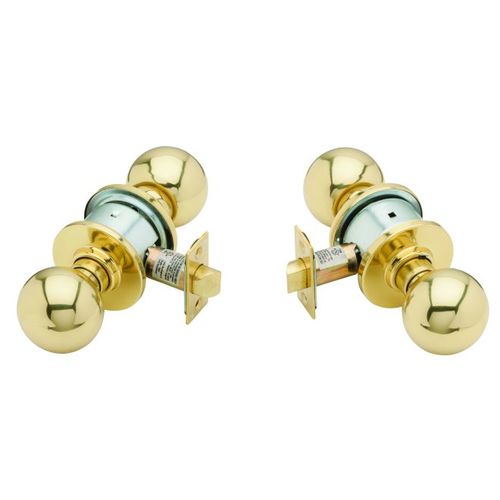

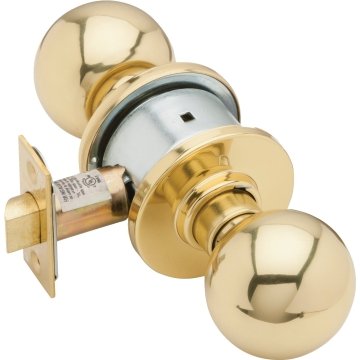

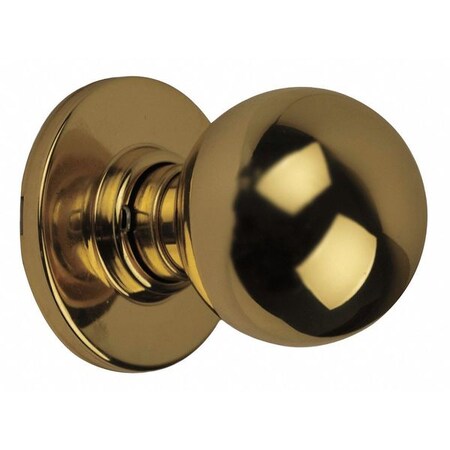

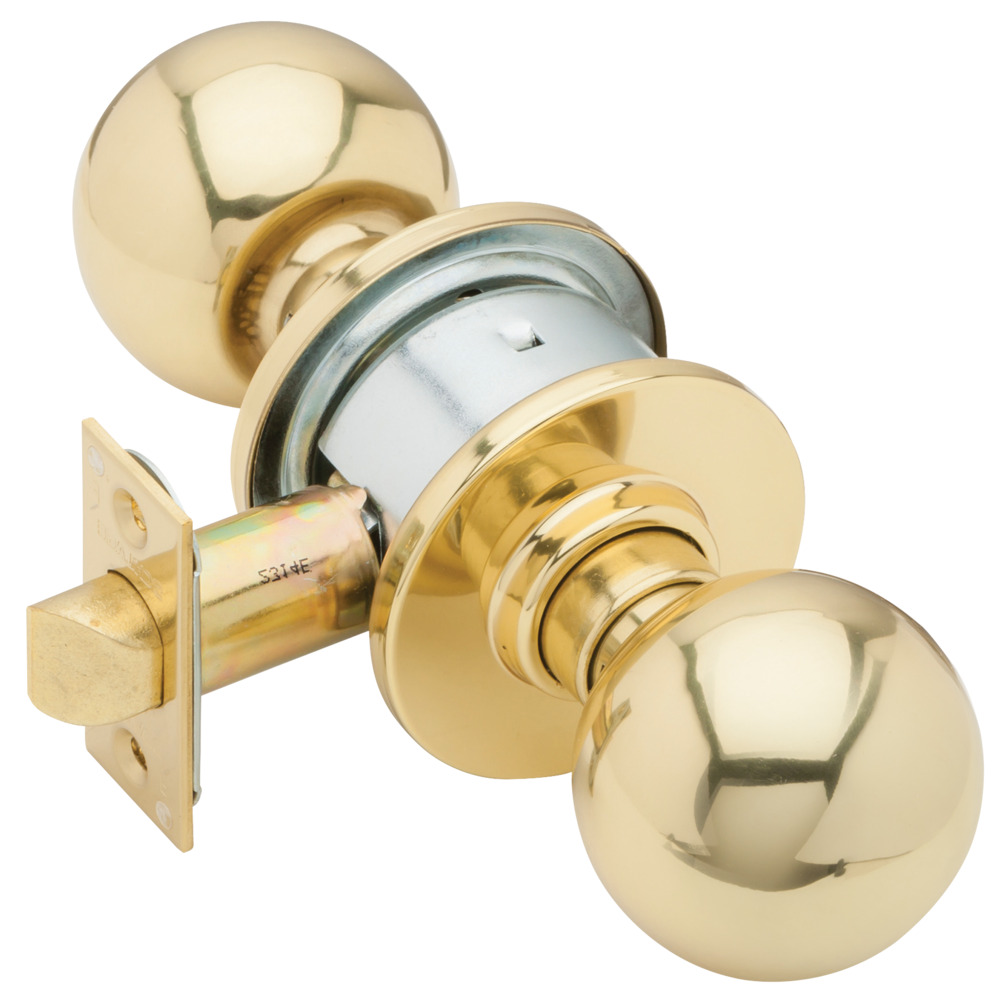

Schlage A10S ORB 605 Orbit Passage Knob, Polished Brass

Schlage A10S ORB 605 Orbit Passage Knob, Polished Brasszoom

Attributes

Key Value
ADA ApprovedFalse
ADA CompliantNo
ANSI FunctionF75
ApplicationSchools; Hospitals; Hot.
Backset2-3/8 in, 2-3/8 Inch, 1.
Backset Size2.75 in.
Bolt Protection1/2 In.
BrandSchlage
Color Code605/US3
Country of OriginMexico
Country of Origin (subj.Mexico
DesignOrbit
Diameter2.13 in.
Door HandingUniversal/Reversible
Door Thickness1.38 - 1.88 in., 1 3/8".
Dust BoxPlastic
Electrical/MechanicalMechanical
FeaturesCold-Rolled Steel, and .
FinishBright Polished Brass, .
Finish DescriptionBright Polished Brass
Finish FamilyPolished Brass
Front MaterialSteel
Front Size1" x 2-1/4"
Function10-Passage
Function DescriptionLatch retracted by knob.
Function FamilyPassage/Hall/Closet
GradeANSI/BHMA Grade 2
HandingReversible
Handle TypeKnob
Height4.380
IncludesHardware
ItemKnob Lockset
KeyingNon-Keyed
Knob Diameter2.1250
Knob MaterialBrass/Steel/Zinc
Knob styleORB-Orbit
Knob Style FamilyBall Knob
Knob/Lever Size2-1/8 Inch
Latch Backset Dim2-3/8 In.
Latch Bolt MaterialBrass
Latch CornerSquare
Latch Number11-068
Latch Throw1/2 Inch
Latch TypeSpring Latch
Length8.250
Lever/Knob DesignORB - Orbit
Ligature ResistantNo
Location TypeCommercial
Lock Face Size2-1/4 In. x 1 In.
Lockset FinishBright Brass
Lockset Fire Rating3 hr
Lockset FunctionPassage
Lockset Grade2
Lockset Handle TypeKnob
Lockset Performance Str.Medium Duty
Manufacturer ParentAllegion
MaterialBrass
Mortise / CylindricalCylindrical
Mortise/CylindricalCylindrical
Package Qty1
Package Quantity1
Product Projection2-7/8 Inch
Product TypeCylindrical Lock
Projection2.8750
Required Door Thickness1-3/8 in and 1-7/8 in
Rose Diameter2-9/16 Inch
Rose/Escutcheon DesignTUL - Tulip
Rose/Escutcheon TrimRound Rose
Security/ANSI GradeGrade 2
SeriesA, A Series
Size MeasureIN
StandardsANSI A156.2, Meets or E.
StrikeT-Strike, 1-1/8 Inch x .
Strike Dim.1-1/8 in x 2-3/4 in
Strike Height2-3/4 In.
Strike Lip1-1/8 Inch
Strike Number10-001
Strike Size1-1/8" x 2-3/4"
Strike TypeT Strike, T-Strike
Strike Width1-1/8 In.
StyleA Orbit
Sub-SeriesCL_Cylindrical_Locks_sc.
Thickness1-3/4 In.
TypeOrbit Lock with 11116 L.
UNSPSC31162801
Warranty3 Year Limited
Weight1.400
Weight MeasureLB
Width3.250

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier

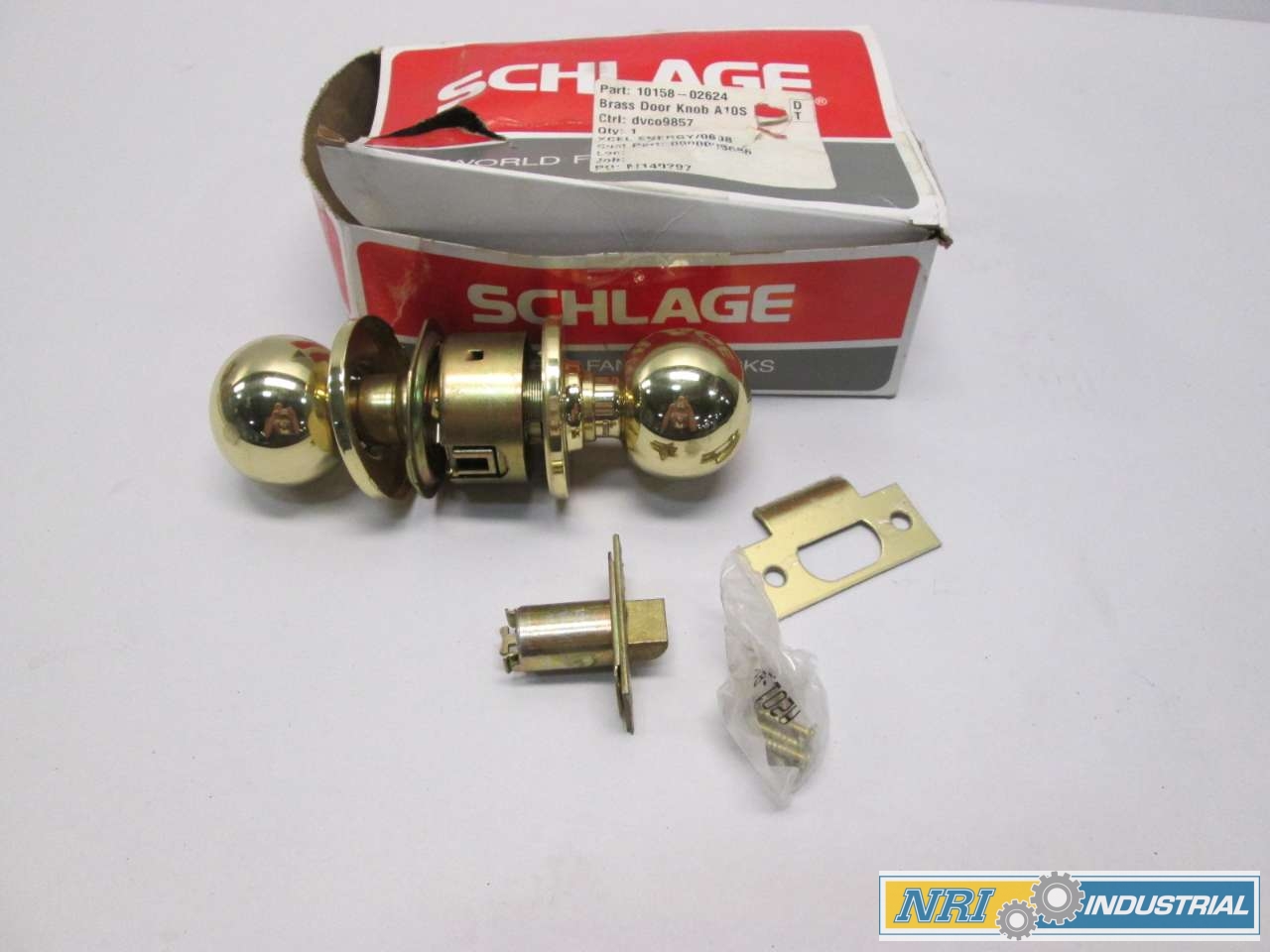

thumbzoomNRI IndustrialD40705338.841In StockSCHLAGE38.84 @ 1
Home Depot10004925077.751In StockSchlage77.75 @ 1
thumbzoomthebuilderssupply.comSCH_A10SORB605102.6155Schlage102.6 @ 1
absupply.netSCHLAGE A10S ORB 605113.37163Schlage113.37 @ 1
thumbzoomZoroG5045406125.791In Stock10Schlage1.9125.79 @ 1
thumbzoomDK HardwareA10S ORB 605151.341In StockSchlage Commercial151.34 @ 1
thumbzoomHD Supply772622207.281In StockSchlage1.4207.28 @ 1
