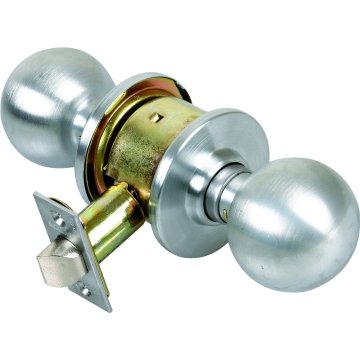

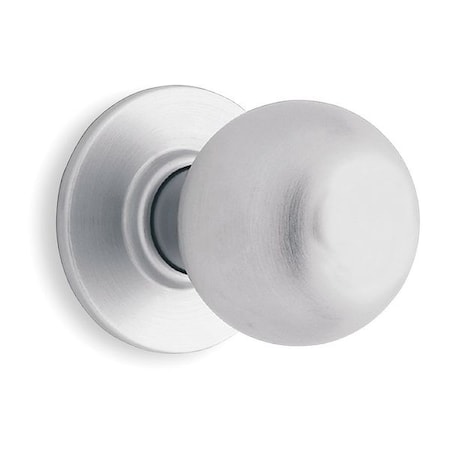

SCHLAGE A10S ORB 626

mpnA10S ORB 626
brandname: Schlage
manufacturername: Schlage

SCHLAGE A10S ORB 626

Brand: SCHLAGE
PartNumber: A10S ORB 626
Model: A10S ORB 626
PackageQuantity: 1
Manufacturer: Schlage
Label: Schlage

Attributes

Key	Value
ADA Approved	False
ADA Compliant	No
ANSI Function	F75
Application	Schools; Hospitals; Hot.
Backset	2-3/8 in, 2-3/8 Inch, 1.
Backset Size	2.3 in.
Bolt Protection	1/2 In.
Brand	Schlage
Color Code	626/US26D
Commercial/Residential	Residential
Country of Origin	Mexico
Country of Origin (subj.	Mexico
Design	Orbit
Door Thickness	1 3/8" - 1 7/8", 1.38 -.
Dust Box	Plastic
Electrical/Mechanical	Mechanical
Features	Cold-Rolled Steel, and .
Finish	Satin Chrome
Finish Description	Satin Chrome
Finish Family	Satin Chrome
Front Material	Steel
Front Size	1" x 2-1/4"
Function	10-Passage
Function Description	Latch retracted by knob.
Function Family	Passage/Hall/Closet
Grade	ANSI/BHMA Grade 2
Handing	Reversible
Handle Type	Knob
Height	3.300
Includes	Hardware
Item	Knob Lockset
Keying	Keyed Different
Keyway	Schlage C123
Knob Diameter	2.1250
Knob Material	Brass/Steel/Zinc
Knob style	ORB-Orbit
Knob Style Family	Ball Knob
Knob/Lever Size	2-1/8 Inch
Latch Backset Dim	2-3/8 In.
Latch Bolt Material	Brass
Latch Corner	Square
Latch Number	11-068
Latch Throw	1/2 Inch
Latch Type	Spring Latch
Length	8.100
Lever/Knob Design	ORB - Orbit
Ligature Resistant	No
Location Type	Commercial
Lock Face Size	2-1/4 In. x 1 In.
Lockset Finish	Satin Chrome
Lockset Fire Rating	3 hr
Lockset Function	Passage
Lockset Grade	2
Lockset Handle Type	Knob
Lockset Performance Str.	Medium Duty
Manufacturer Parent	Allegion
Mortise / Cylindrical	Cylindrical
Number Of Pins	6
Package Qty	1
Package Quantity	1
Product Projection	2-7/8 Inch
Product Type	Cylindrical Lock
Projection	2.8750
Required Door Thickness	1-3/8 in and 1-7/8 in
Rose Diameter	2-9/16 Inch
Rose/Escutcheon Design	TUL - Tulip
Rose/Escutcheon Trim	Round Rose
Security/ANSI Grade	Grade 2
Series	A
Size Measure	IN
Standards	ANSI A156.2, Meets or E.
Strike	T-Strike, 1-1/8 Inch x .
Strike Dim.	1-1/8 in x 2-3/4 in
Strike Height	2-3/4 In.
Strike Lip	1-1/8 Inch
Strike Number	10-001
Strike Size	1-1/8" x 2-3/4"
Strike Type	T Strike, T-Strike
Strike Width	1-1/8 In.
Style	Orbit, A Orbit
Sub-Series	CL_Cylindrical_Locks_sc.
Thickness	1-3/4 In.
UNSPSC	46171503
UPC	043156912056
UPC Code	43156912056
Warranty	3 Year Limited
Weight	1.450
Weight Measure	LB
Width	4.500

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Home Depot	100087585	54.6	1	In Stock	Schlage		54.6 @ 1
thebuilderssupply.com	SCH_A10SORB626	96.12	1	101	Schlage		96.12 @ 1
Zoro	G5045424	123.65	1	23	Schlage	1.9	123.65 @ 1
absupply.net	SCHLAGE CMP. A10S ORB 626	134.41	1	In Stock	Schlage		134.41 @ 1
DK Hardware	A10S ORB 626	141.78	1	In Stock	Schlage Commercial		141.78 @ 1
HD Supply	913210	167.39	1	In Stock	Schlage	1.45	167.39 @ 1
bscsource.com	09290628	172.49	1	In Stock	Schlage		172.49 @ 1
National Supply Network	09290628	191.79	1	In Stock	Schlage		191.79 @ 1
