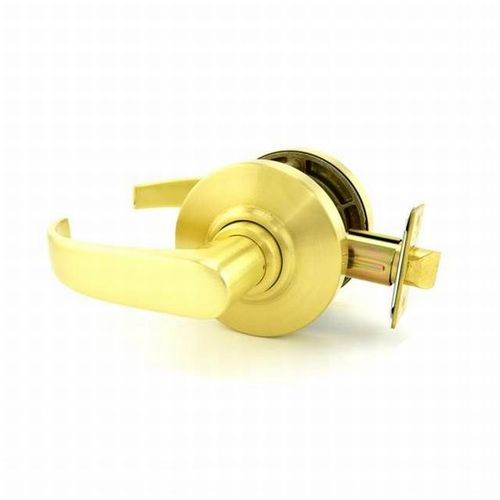

Schlage Commercial AL10S NEP 606

Passage Latch, Both levers always unlocked, 2-3/4" Backset Square Corner, 4-7/8" ANSI Strike. 606 Satin Brass<br>AL SeriesCylindrical locks<p>The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.</p>Specifications: Handing:<ul><li>Non-handed</li></ul> Door thickness:<ul><li>1 3/8" to 1 7/8" (35 mm to 48 mm) standard</li></ul> Backset:<ul><li>2 3/4" (70 mm) standard. 2 3/8" (60 mm)</li></ul> Front:<ul><li>Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard</li></ul> Lock chassis:<ul><li>Steel, zinc dichromated for corrosion resistance</li></ul> Latch bolt:<ul><li>Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions</li></ul> Exposed trim:<ul><li>Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.</li></ul> Strike:<ul><li>ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.</li></ul> Cylinder and keys:<ul><li>6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.</li></ul> Keying options:<ul><li>Interchangeable core and Primus? high security cylinders. Master keying, grand master keying, and construction keying.</li></ul> Warranty:<ul><li>Three-year limited</li></ul> Finishes:<ul><li>605 - Bright brass</li><li>606 - Satin brass</li><li>609 - Antique brass</li><li>612 - Satin bronze</li><li>613 - Oil rubbed bronze</li><li>619 - Satin nickel</li><li>622 - Matte black</li><li>625 - Bright chromium plated</li><li>626 - Satin chromium plated</li><li>626AM - Anti-microbial coating</li><li>643e - Aged bronze</li><li>e = an equivalent finish to the BHMA standard.</li><li>Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.</li></ul>Certifications: ANSI:<ul><li>Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.</li><li>Meets A117.1 Accessibility Code.</li></ul> Federal:<ul><li>Meets FF-H-106C</li></ul> California State Reference Code:<br> (Formerly Title 19, California State Fire Marshal Standard)<ul><li>All levers with a return to door of 1/2" (64 mm) or less comply.</li></ul> UL / cUL:<ul><li>All locks listed for A label single doors, 4' x 8'.</li><li>Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.</li></ul> ADA compliant:<ul><li>Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.</li></ul>
