Description:

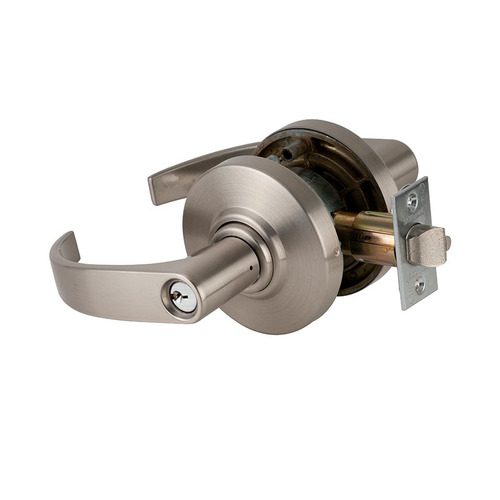

AL Series Office Neptune Lock C Keyway with 11096 Latch 10025 Strike Satin Nickel Finish
Attributes
| Key ^ | Value |
|---|---|
| ANSI Function | F82 - Entry |
| BAA Qualified | Yes |
| Backset | 2-3/4" Backset |
| Base Material | Brass or Bronze |
| Case Height | 10" |
| Case Length | 16.375" |
| Case Volume | 2394.84375 |
| Case Width | 14.625" |
| Color | Satin Nickel Plated Clear Coated |
| Color Code | 619/US15 |
| Cylinder Type, Special Marks | Conventional cylinder |
| Design | Neptune |
| Finish | Satin Nickel |
| Function | Entry / Office |
| Grade | Grade 2 |
| Hand | Not Handed |
| Handing | Reversible |
| Key(s) | Cut |
| Keying | Keyed Different |
| Keyway | S123 |
| Latch Backset Dim | 2-3/4" |
| Latch Number | 11-096 |
| Latch Type | Dead Latch (Guarded) |
| Lever/Knob Design | NEP - Neptune |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Origin | Mexico |
| Package Height | 4.75" |
| Package Length | 9.5" |
| Package Qty | 1 |
| Package Volume | 372.28125 |
| Package Width | 8.25" |
| Rose/Escutcheon Design | 3-7/16 In. Diameter |
| Screws | Combination |
| Strike | ANSI Strike |
| Strike Height | 4-7/8" |
| Strike Number | 10-025 |
| Strike Type | ASA |
| Strike Width | 1-1/4" |
| Thickness | 1-3/8 In. - 1-7/8 In. |
