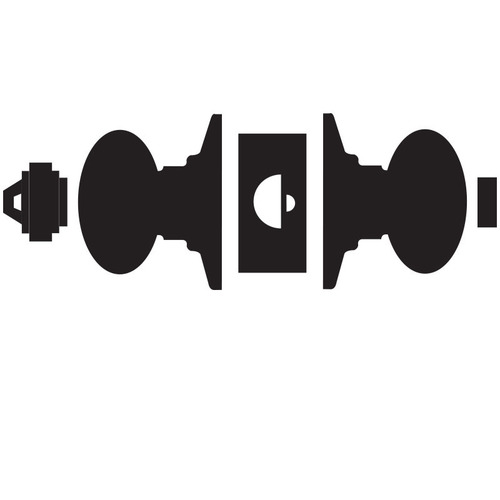

Schlage Commercial D73LD ORB 626

Corridor Lock, Keyed Lock function, Less Cylinder, 2-3/4" Backset Square Corner Deadlatch, 4-7/8" ANSI Strike. 626 Satin Chrome.<br>D SeriesCylindrical Lock<p>Schlage D Series cylindrical locks are knob-only locks built to survive in the toughest environments. The ANSI/BHMA Grade 1 rating allows the D Series to fit in applications like military barracks, back-of-house hospitality and repair/replace instances. Three knob styles and ten finishes make the Schlage D Series the perfect retrofit option.</p><p>Heavy-duty hardware for premium performance.</p><ul><li>Exceeds 800,000-cycle ANSI Grade 1 requirements</li></ul><ul><li>Exceeds ANSI A156.2, Series 4000 Grade 1 lock knob torque requirements</li></ul><ul><li>Heavy-gauge, cold-rolled steel mechanisms are corrosion treated for normal atmosphere conditions</li></ul>Specifications: Handing:<ul><li>Keyed functions of knob designs are field reversible</li></ul> Door thickness:<ul><li>1 3/8" to 2" (35 mm-51 mm) standard</li></ul> Backset:<ul><li>2 3/4" (70 mm) standard. 2 3/8"</li></ul> Faceplate:<ul><li>Brass, bronze or stainless steel. 1 1/8" x 2 1/4" (29 mm x 57 mm) square corner, beveled</li></ul> Lock chassis:<ul><li>Steel, zinc dichromate plated for corrosion resistance</li></ul> Latch bolt:<ul><li>Brass, 1/2" (12 mm) throw, deadlocking on keyed and exterior functions. 3/4" (19 mm) throw, anti-friction latch available for pairs of fire doors.</li></ul> Exposed trim:<ul><li>Wrought brass, bronze or stainless steel</li></ul> Strike:<ul><li>ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard. Optional strikes, lip lengths and ANSI strike box available</li></ul> Cylinder and keys:<ul><li>6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock</li></ul> Keying options:<ul><li>Full size interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying</li></ul> Warrant:<ul><li>Three-year limited warranty</li></ul> Finishes:<ul><li>605 - Bright brass</li><li>606 - Satin brass</li><li>609 - Antique brass</li><li>612 - Satin bronze</li><li>613 - Oil rubbed bronze</li><li>625 - Bright chromium plated</li><li>626 - Satin chromium plated</li><li>629 - Bright stainless steel</li><li>630 - Satin stainless steel*</li><li>643e - Aged bronze</li><li>e = an equivalent finish to the BHMA standard.</li><li>*Not available on Orbit or Tulip knob designs.</li></ul>Certifications: ANSI:<ul><li>Meets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.</li></ul> Federal:<ul><li>Meets FF-H-106C Series 161.</li></ul> UL / cUL:<ul><li>All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.</li></ul> ADA compliant:<ul><li>Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.</li></ul>
