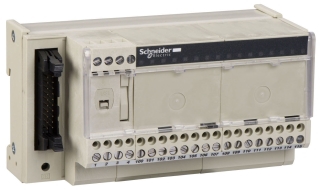

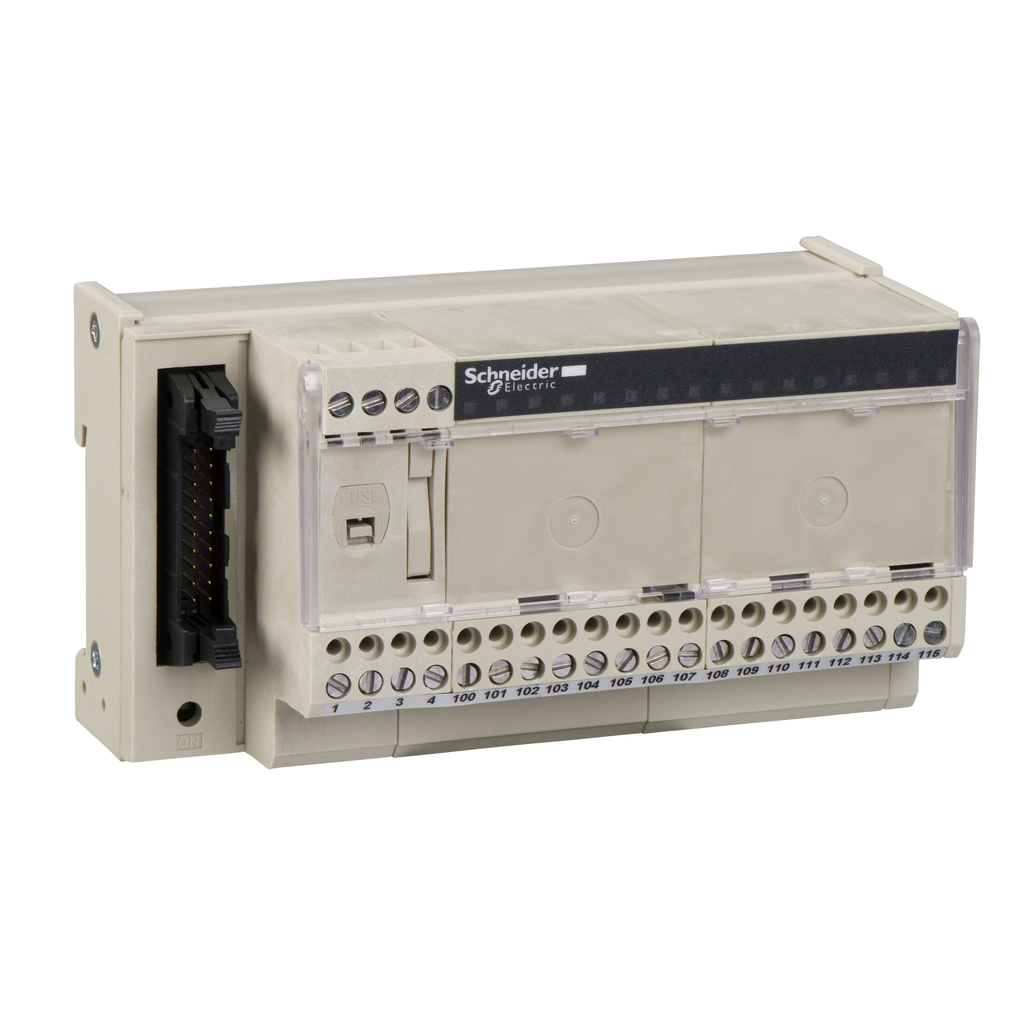

SCHNEIDER ELECTRIC ABE7H16R11
SCHNEIDER ELECTRICzoom

SCHNEIDER ELECTRIC ABE7H16R11

mpn:
ABE7-H16R11
brand:
SCHNEIDER%20ELECTRIC
manufacturer:
SCHNEIDER%20ELECTRIC
MPN:
ABE7-H16R11
Weight:
0.6062712205
Weight:
0.62 LB
Preferred Price:
114.6
Price:
114.6
Min Simple Price:
62.628
Absolute Min Price:
88.93
Min Price:
88.93
Dimensions:
[7.0, 6.0, 5.0]
qty:
21
simpleSku:
DY0NDY:::ABE7-H16R11
sku:
DY0NDY::S6:ABE7-H16R11@y0
condition:
11
seller:
RS Delivers
amzMan:
schneider electric
HazMat:
False
DropShip:
False

Attributes

Key ^Value
[Ui] Rated Insulation Voltage2000 V
[Us] Rated Supply Voltage19...30 V IEC 61131-2
Ambient Air Temperature For Operation-5-60 ?C IEC 61131-2
Ambient Air Temperature For Storage-40-80 ?C IEC 61131-2
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Capacity16 CHANNELS
Catalog NumberABE7H16R11
China Rohs RegulationX
Circularity ProfileENVEOLI1212029EN
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm? AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm? AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm? AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm? AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm? AWG 24...AWG 14) solid
Connector TypeHE-10
Country of OriginLatvia, LV - Latvia
Current Per Channel0.5 A
Depth67 mm
Dimensions4.92 in W x 2.64 in D
ECCNEAR99
Enclosure, Ip Degree Of ProtectionIP2X CONFORMING TO IEC 60529
Environmental DisclosureENVPEP121229EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Fixing Modeby clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
FunctionInput/Output
Gross Weight0 lbs
GTIN03389110544947
Installation CategoryII IEC 60664-1
Item Type, Product Or Component TypePassive discrete I/O sub-base
Made in USA, Polarity DistributionNo
Maximum Current Per Output Common, Maximum Supply Current, Output1.8 A
Mercury Free, Reach Free Of Svhc, Rohs Exemption InformationYes
ModuleChannel and LED per Channel
MountingBy clips 35 mm symmetrical DIN rail);by screws solid plate with fixing kit)
Net Weight0.274 kg
Number Of Channels, Number of Terminals16
Number Of Horizontal Rows, Number Of Terminal Per Channel1
Output Amperage=1.8 A
Packaging1 per Package
Pin Number20 pins
Pollution Degree2 IEC 60664-1
Power Supply19...30 V IEC 61131-2;DC
Product CertificationsDNV || BV || UL || GL || CSA || LROS (Lloyds register of shipping) || EAC
Product IncludesLED, Screw Type Terminal
Range Of ProductModicon ABE7
Rating5.31 (Torque) lb?in
Reach RegulationFree of Substances of Very High Concern above the threshold
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Incandescent Wire750 ?C IEC 60695-2-11
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
SeriesABE7, ABE Series
Shock Resistance15 gn 11 ms IEC 60068-2-27
Short-Circuit Protection2 A internal fuse, 5 x 20 mm, fast blow PLC end)
Special FeaturesScrew type terminals, 1 x 0.09...1 x 1.5 mm? AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm? AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm? AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm? AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm? AWG 24...AWG 14) solid
StandardBV, CSA, DNV, GL, LROS, UL
Status Led1 LED per channel (Green) channel status || 1 LED (Green) power ON
Sub BrandADVANTYS
Sub-Base TypeI/O sub-base
Suitable For Use WithQuantum? Automation Platform
Supply Circuit TypeDC
Sustainable Offer StatusGreen Premium product
Temperature Rating23...140 Degrees F (-5...60 Degrees C)
Tightening Torque0.6 N.m flat ? 3.5 mm
Torque Rating5.31, 5.31 in-lb
TypePassive
UNSPSC32151603
UPC, UPC Code785901544944
Use WithProgrammable Logic Controller
Vibration Resistance2 gn 10-150 Hz)IEC 60068-2-6
Voltage Drop On Power Supply Fuse0.3 V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width125 mm, 4.92
Wire Clamp TypeScrew

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
RS Delivers253-239162.62862.6281In StockSchneider Electric62.628 @ Qty: 1+
thumbzoomNex InstrumentABE7H16R1169.069.01In Stock31Schneider Electric69.0 @ Qty: 1+
RadwellABE7-H16R11163.0163.01In StockSCHNEIDER%20ELECTRIC163.0 @ Qty: 1+
thumbzoomcappusa.com4810543165.92165.921In StockSchneider Electric165.92 @ Qty: 1+
thumbzoomgordonelectricsupply.comABE7H16R11185.59185.591In Stock10SQUARE D185.59 @ Qty: 1+
thumbzoomstandardelectricsupply.com330567194.51194.511In StockSquare D (Schneider Electric)194.51 @ Qty: 1+
thumbzoomGalcoABE7H16R11-SQD194.72194.721In StockSquare D194.72 @ Qty: 1+
Digi-Key16614089206.28206.281In Stockschneider-electric206.28 @ Qty: 1+
Graybar22060295207.2207.21In StockSquare D (Schneider Electric)207.2 @ Qty: 1+
us.rs-online.com70378940218.59218.591In StockSchneider Electric218.59 @ Qty: 1+
thumbzoomcrescentelectric.com59696219.42219.421In StockSchneider Electric219.42 @ Qty: 1+
thumbzoomNewark17C7495234.11234.111In StockSCHNEIDER ELECTRIC234.11 @ Qty: 1+
thumbzoommayerelectric.comSQDABE7H16R11279.13279.131In StockSCHNEIDER ELECTRIC0.6028279.13 @ Qty: 1+
thumbzoomNational Supply Network69681229297.48297.481In StockSchneider Electric297.48 @ Qty: 1+
industrialrefrigerationparts.comABE7H16R1134087.534087.51In StockSchneider Electric34087.5 @ Qty: 1+
B00CONP2S6
174.01 USD

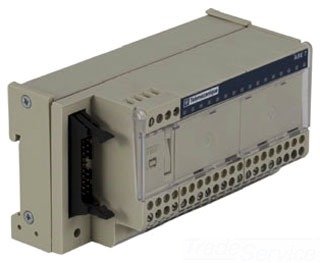

SCHNEIDER ELECTRIC ABE7H16R11

SCHNEIDER ELECTRIC ABE7H16R11 Telefast 2 Module-16 Chan I/O Discrete Sig.

SCHNEIDER ELECTRIC ABE7H16R11 Telefast 2 Module-16 Chan I/O Discrete Sig.zoom
