Attributes
| Key ^ | Value |
|---|---|
| Acceleration Adjustment, Ramp Time | 1 to 60 sec |
| Accepts Input Control Signal | Remote Contact |
| Application, For Use With | Compressors, Conveyors, Fans, Pumps |
| Bypass Included | Yes |
| Communication Port | Modbus |
| Control Method | Remote |
| Control Voltage | 120V AC |
| Country of Origin (subject to change) | Mexico |
| Depth, Overall Depth | 12.65 in |
| Display, Display Type | 7 Segment |
| Enclosure Rating, Enclosure Rating (merch) | NEMA 3R |
| Enclosure Type | UL Type 3R Outdoor Use |
| Features | Reduced Voltage Starting and Soft Stopping of Standard Three Phase Asynchronous Induction Motors for Application Requirements Up to 400 hp at 460 V |
| Frequency | 60Hz |
| Height, Overall Height | 31.92 in |
| HP @ 3 Phase - 208V | 25 hp |
| Includes | Pilot Light |
| Input Voltage | 208 V AC |
| Inputs/Outputs | 3 |

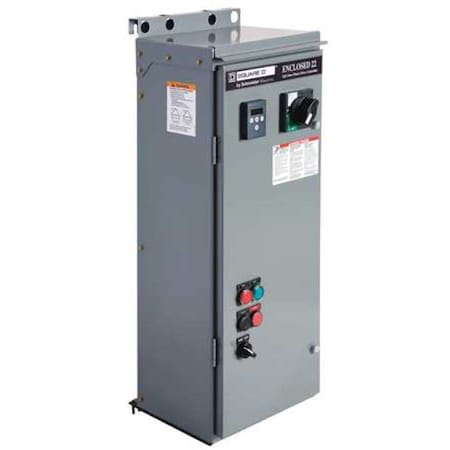

| Item | Combination Soft Start |
| Output Current | 74.8 A |
| Output Power | 25 hp @ 3 Phase, 208V AC |
| Output Voltage | 208V AC |
| Overall Width, Width | 11.3 in |
| Phase | Three |
| Protects | Circuit Breaker |
| Standards | UL Listed |
| Start Type | Torque ramp, Current limit, Booster start-up pulse |
| Start/Stop Control | Manual |
| Starting Torque | Adjustable |
| Stop Time | Freewheel,Torque decel |
| With Bypass / No Bypass | With Bypass |
