Schneider Electric 9001K1L35LRRH13

B00CONKLW8

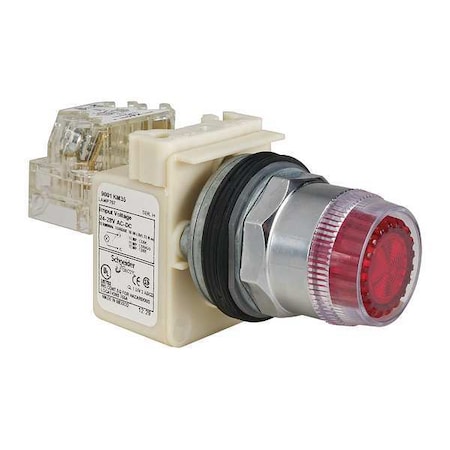

SCHNEIDER ELECTRIC 9001K1L35LRRH13 Pushbutton 600-Vac 10-Amp 30-Mm T-K Electrical Box

SCHNEIDER ELECTRIC 9001K1L35LRRH13 Pushbutton 600-Vac 10-Amp 30-Mm T-K Electrical Boxzoom

Attributes

Key Value
ActionStandard, Momentary
Actuatorspring return;Red flush.
Actuator ColorRed
Actuator TypeRound
Amperage Rating10
Basic MaterialMetal
BezelChrome Plated Metal
BrandSchneider Electric
Catalog Number9001K1L35LRRH13
ColorRed
ConditionNew
ConnectionScrew clamp terminals 1.
Contact Configuration1 C/O
Contact Form1NO/1NC, 1NO ; 1NC
Contact Rating10A @ 600V AC, AC15 - D.
Contact Type1NO/1NC
ContactsSPDT
Country of OriginMexico
Country of Origin (subj.Mexico
Current (A)10 A
Current Rating10 A
EnclosureNEMA 1-NEMA 12-NEMA 13-.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family SeriesSquare D Switches
Gross Weight0 lbs
Head MaterialMetal
IlluminationIlluminated
IndicatorBA 9S,HIGH LUMINOSITY L.
Insulation250 V 3)IEC 60947-1
IP Rating66, IP66
ItemIlluminated Push Button
Item Number9001K1L35LRRH13
Item TypeIlluminated push-button
Lamp Module TypeFull Voltage
Lamp Module Voltage24V AC/DC
Lamp TypeLED
Lamp Voltage24V AC/DC
Lens/Button ColorRed
Lens/Button ShapeRound Flush
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number9001K1L35LRRH13
MaterialMetal
MountingPanel Mount
Mounting Hole Size22 mm
NEMA Contact Rating Des.A600/Q600
NEMA RatingNEMA 1, NEMA 2, NEMA 3R.
Net Weight0 lbs
Nominal Lamp Voltage24 VAC, 24 VDC
Nominal Mounting Size30 mm
Number of Operators1
Operating Temperature-25-70 A Degrees C
OperationMaintained, Momentary
Product TypeIlluminated Push Button
Replacement LampMfr. No. 65088-052-13
Size30 mm
Special FeaturesFULL GUARD IN PLASTIC
Standard50 GN IEC 60068-2-27,7 .
StandardsCE, CSA, UL
Sub Brand9001K
Terminal ConnectionPressure Plate
Terminal TypeScrew
TerminationScrew
Type of OperatorRound Guarded Button
UPC785901550471
UPC Code785901550471
Voltage24 to 28V AC/DC
Voltage Rating24...28 V;24...28 V AC/.
Warranty DescriptionContractual Warranty:18.
Weight2.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomblackhawksupply.com9001K1L35LRRH13138.041In StockSquare D138.04 @ 1
thumbzoomindustrialrefrigerationparts.com9001K1L35LRRH13146.871In StockSquare D2.0146.87 @ 1
thumbzoomGalco9001K1L35LRRH13-SQD157.091In StockSquare D157.09 @ 1
thumbzoomZoroG6373832162.021In Stock30Schneider Electric0.5162.02 @ 1
thumbzoomgordonelectricsupply.com9001K1L35LRRH13202.01In Stock10SQUARE D202.0 @ 1
thumbzoommostelectric.com9001K1L35LRRH13229.711In StockSQUARE D/TELEMECANIQUE229.71 @ 1
thumbzoomsustainablesupply.comC1197383255.71In StockSchneider Electric0.5255.7 @ 1
industrialautomationparts.comAE-008871263.461In StockSchneider Electric263.46 @ 1
us.rs-online.com71121144276.2911Schneider Electric276.29 @ 1
thumbzoomcrescentelectric.com277632383.131In StockSchneider Electric383.13 @ 1
