Schneider Electric 9001KP8G31

B00CONO3TK

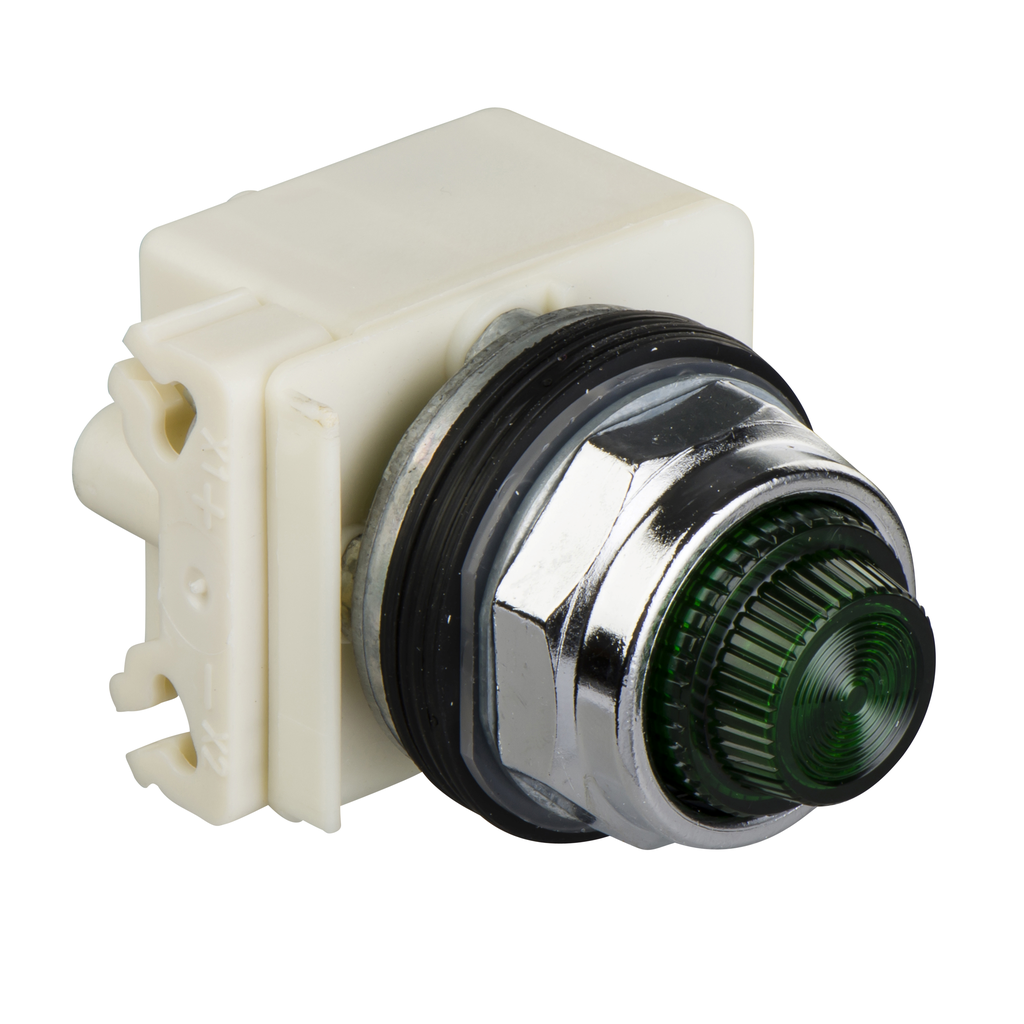

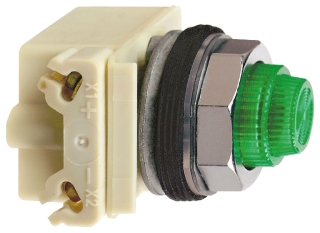

SCHNEIDER ELECTRIC 9001KP8G31 Pilot Light 277-Volt Ac 30Mm Type K Plus Options Electrical Box

SCHNEIDER ELECTRIC 9001KP8G31 Pilot Light 277-Volt Ac 30Mm Type K Plus Options Electrical Boxzoom

Attributes

Key Value
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 2)IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV IEC 60947-1
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Application9001K
Bezel Materialmetal
BrandSquare D by Schneider E.
Bulb BaseBA 9s
Cad Overall Depth42 mm
Cad Overall Height70 mm
Cad Overall Width54 mm
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.green
Catalog Number9001KP8G31
CategoryOptoelectronics
China Rohs RegulationX
Colorgreen
Color Familygreen
Connectionscrew clamp terminals, .
Connection Typescrew clamp terminals, .
Connections - Terminalsscrew clamp terminals, .
Country of OriginMX - Mexico, Mexico
Depth42 mm
Device Short Name9001K
Diameter30 mm
ECCNEAR99
Environmental ConditionsNEMA 1-NEMA 12-NEMA 13-.
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
FinishCHROMIUM PLATED METAL
Height70 mm
IEC RatingIP66 IEC 60529
Ip Degree Of ProtectionIP66 IEC 60529
Item TypePilot light;Fresnel
Lamp Typeincandescent
Lens Typefresnel glass
Light Block Supplyvia integral transforme.
Light Sourceincandescent bulb, inca.
Made in USANo
ManufacturerSchneider Electric
Materialmetal
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Net Weight0.21 kg
Operating Positionany position
Operating Temperature-25-70 A Degrees C
Operator Shaperound
Overvoltage Categoryclass II IEC 61140
PackageBox
Product CertificationsUL 508 || NEMA
Product Or Component Ty.pilot light
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony 9001K
Rated Voltage277 V
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Series*, Harmony 9001K
ShapeSquare, Round;Fresnel g.
Shape Of Screw Headcross slotted
Shape Of Signaling Unit.round
Shock Resistance50 gn IEC 60068-2-27
Short-Circuit Protection10 A cartridge fuse IEC.
Size1.18
Special FeaturesIP66 CONFORMING TO IEC .
Standard50 GN IEC 60068-2-27,7 .
StandardsEN/IEC 60947-5-4 || UL .
Sub Brand9001K
Sustainable Offer StatusGreen Premium product
Tightening Torque0.8-0.8 N.m IEC 60947-1
UNSPSC39121534
UPC785901033226
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width54 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9001KP8G31134.091In Stock10SQUARE D134.09 @ 1
Digi-Key17158152137.741In Stock12Schneider Electric137.74 @ 1
thumbzoommostelectric.com9001KP8G31152.141In StockSQUARE D/TELEMECANIQUE152.14 @ 1
us.rs-online.com72305387152.851In StockSquare D152.85 @ 1
thumbzoommayerelectric.comSQD9001KP8G31160.081In StockSQUARE D0.462160.08 @ 1
Graybar22057248171.361In StockSquare D (Schneider Electric)171.36 @ 1
thumbzoomNewark16B9301189.351In StockSCHNEIDER ELECTRIC189.35 @ 1
thumbzoomcrescentelectric.com7306253.751In StockSquare D by Schneider Electric253.75 @ 1
