mpn:
brand:
manufacturer:
MPN:
Description:

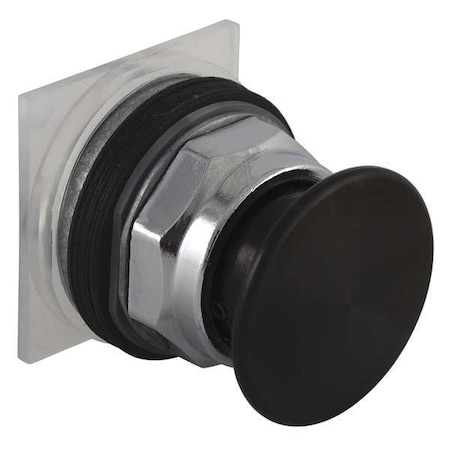

9001K Series, Black Push Button Head, Momentary, 31mm Cutout
Weight:
0.01875
Weight:
0.01875 LB
Preferred Price:
120.8
Price:
120.8
Min Simple Price:
66.0128
Absolute Min Price:
93.73
Min Price:
93.73
Dimensions:
[3.0, 3.0, 3.0]
qty:
21
simpleSku:
Mjc3MA:::9001KR24BM
sku:
Mjc3MA::4A:9001KR24BM@y0
condition:
11
seller:
Graybar
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accessory Group | Type K and SK Accessories |
| Action | SPRING RETURN, Momentary Push |
| Actuator | Black mushroom ? 40 mm, unmarked; spring return;Mushroom ? 40 mm;Spring return |
| Actuator Type | Mushroom 30 mm |
| Ambient Air Temperature For Storage | -40-70?C |
| Application | Contact block 9001KA.. |
| Basic Material, Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Brand | Square D by Schneider Electric |
| Brand, Manufacturer | Schneider Electric |
| Cad Overall Depth | 70 mm |
| Cad Overall Height | 45 mm |
| Cad Overall Width | 45.5 mm |
| Catalog Number, Mpn | 9001KR24BM |
| Color, Color Family, Indicator | Black |
| Contact Configuration | Without contact block |
| Country of Origin | MX - Mexico, Mexico |
| Current Stock | 3 |
| Device Short Name, Sub Brand | 9001K |
| ECCN | EAR99 |
| Enclosure | NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 6 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR) |
| Family Name | Harmony 9001K/SK/KX Family |
| Head Material | Aluminum-Zinc Alloy |
| IEC Rating | IP66 |
| International Shipping, Made in USA | No |
| IP Rating | 66 |
| Item Type, Product Or Component Type | head for push-button |
| Item, Product Type | Push Button Operator |
| Lead Time | Expected to ship in 1-2 business days |
| Legend | No Legend |
| Mounting Diameter, Size | 30 mm |
| Mounting Hole Size | 30 |
| Mounting, Mounting Type | Panel Mount |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6 |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| No. of Positions | 2-Position |
| Number of Operators | 1 |
| Operating Temperature | -25-70 A Degrees C |
| Operation | Momentary |
| Operator Additional Information | screw-on metal with set screw |
| Operator Shape | Round |
| Primary Type | Pushbutton |
| Series | Harmony 9001K Series, Harmony |
| Size | 30 MM,45 MM,45.5 MM,70 MM, 30mm |
| SKU | ZO-G4583381 |
| Special Features | SCREW-IN WITH SET SCREW SECURITY |
| Standard | 50 GN IEC 60068-2-27,7 GN 2-500 HZ)IEC 60068-2-6,EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C 4520-JIS C 852-UL 508-CSA C22.2 NO 14,IP66 IEC 60529,NEMA-UL 508 |
| Standards | CE, CSA, UL |
| SubCategory | Electrical |
| Termination | Screw |
| Type of Operator | 40mm Mushroom Head |
| UNSPSC | 39122216 |
| UPC, UPC Code | 785901594864 |
| Voltage Rating | 600V |
| Warranty Description | Contractual Warranty:18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Graybar | 25145794 | 66.0128 | 66.0128 | 1 | In Stock | Square D (Schneider Electric) | 66.0128 @ Qty: 1+ | |||
 | Zoro | G4583381 | 69.99 | 69.99 | 1 | 16 | Schneider Electric | 0.3 | 69.99 @ Qty: 1+ | |
 | simsupply.com | ZO-G4583381 | 82.94 | 82.94 | 1 | 3 | Schneider Electric | 82.94 @ Qty: 1+ | ||
| us.rs-online.com | 70343221 | 92.73 | 92.73 | 1 | 1 | Square D | 92.73 @ Qty: 1+ | |||
| standardelectricsupply.com | 2328895 | 94.13 | 94.13 | 1 | In Stock | Square D | 94.13 @ Qty: 1+ | |||
| Newark | 34M1391 | 111.38 | 111.38 | 1 | In Stock | SCHNEIDER ELECTRIC | 111.38 @ Qty: 1+ | |||
 | crescentelectric.com | 79259 | 149.27 | 149.27 | 1 | In Stock | Square D by Schneider Electric | 149.27 @ Qty: 1+ |
