CAI - SCHNEIDER ELECTRIC 9001KR2RH6

B07J5V11CN

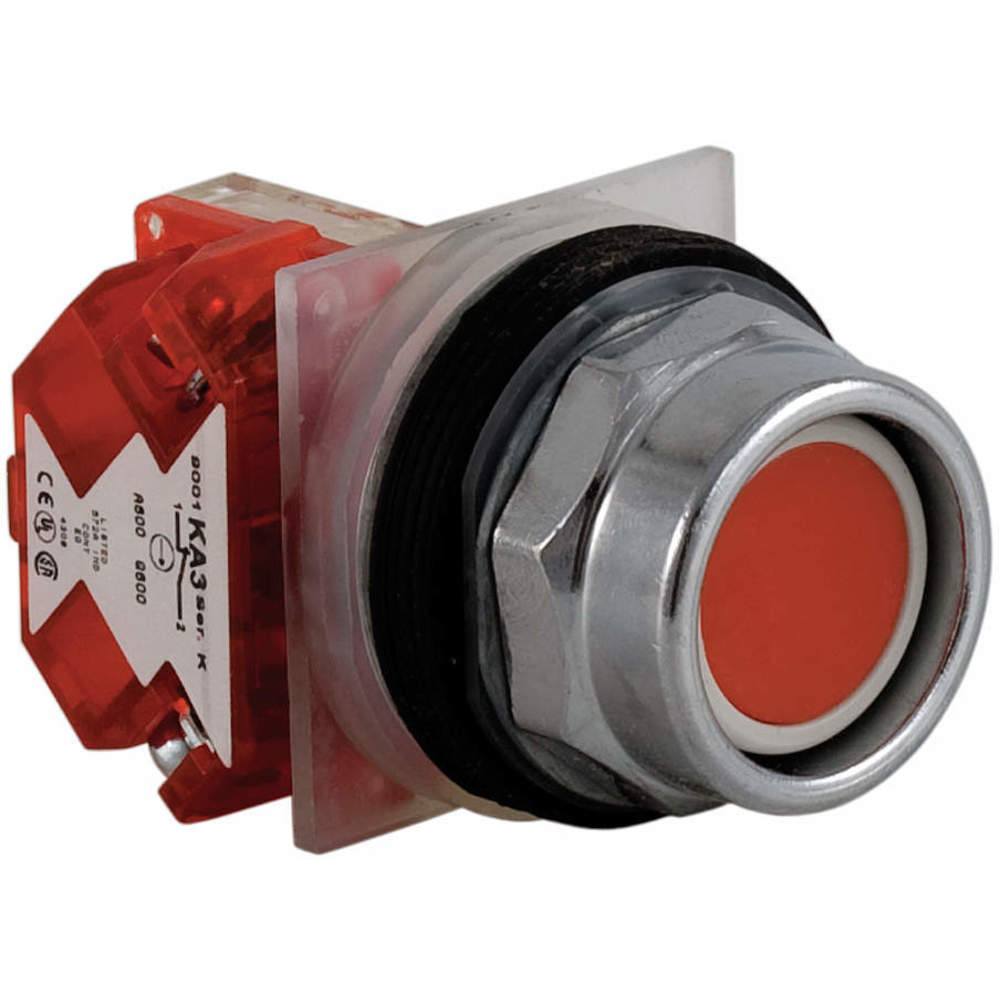

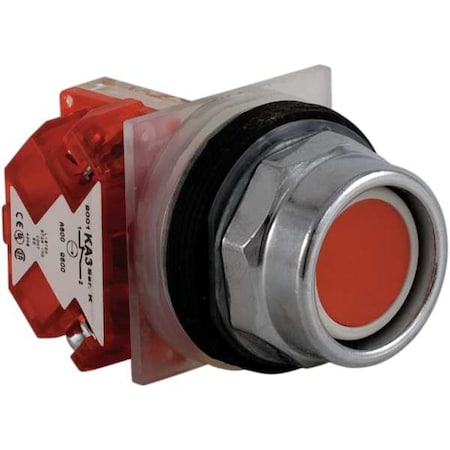

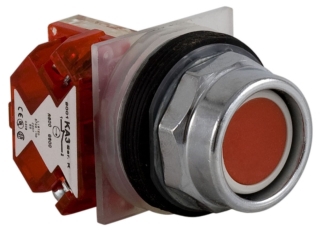

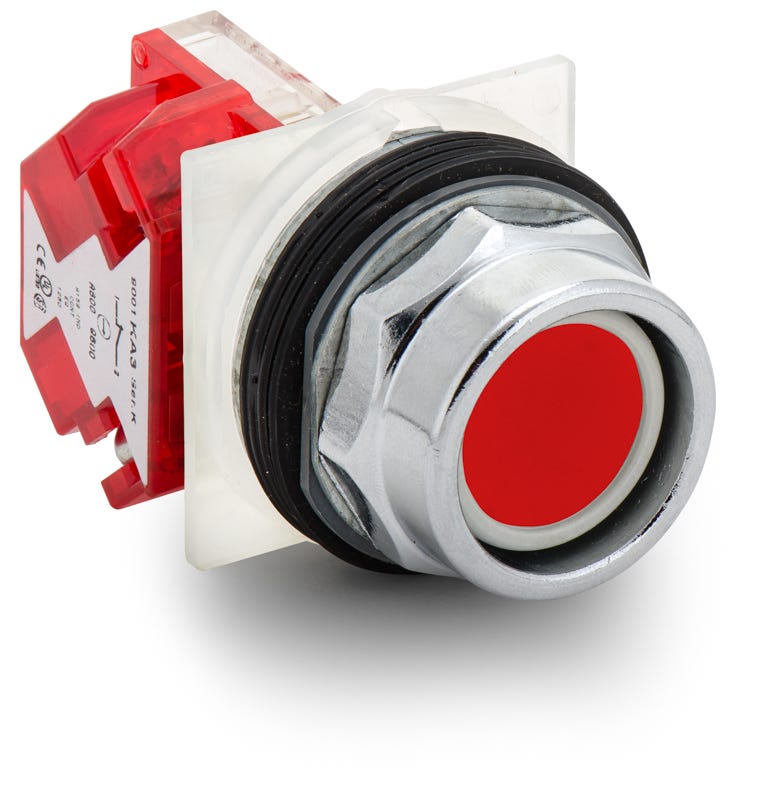

Schneider Electric Non-Illuminated Push Button, Type of Operator: Extended Button, Size: 30mm, Action: Momentary Push

Schneider Electric Non-Illuminated Push Button, Type of Operator: Extended Button, Size: 30mm, Action: Momentary Pushzoom

Attributes

Key Value
ActionMomentary Push
ActuationSpring Return
Actuator ColorRed
Actuator TypeRound Flush 30mm, Round.
Amperage10A
Amperage Rating10A
ApprovalsCCN, CE, CSA, UL
Basic MaterialMetal
BezelChrome, Chrome Plated Z.
Bezel MaterialMetal
Body Stylestandard
BrandSchneider Electric
Catalog Number9001KR2RH6
CategorySwitches
CircuitSPST-NC
ColorRed
Color - Actuator/CapRed
Color FamilyRed
Connection Typescrew clamp terminals
Connections - Terminalsscrew clamp terminals
Contact Form1NC
Contact Operation1 NC, standard
Contact Rating10A @ 600V AC
ContactsSilver Alloy, 1NC
Country of OriginMX - Mexico, Mexico
Current Rating10 A
Current Rating (Amps)-
DescriptionPUSH BUTTON 600VAC 10A .
Detailed DescriptionPushbutton Switch SPST-.
Diameter30 mm
Digi-Key Part Number4008-9001KR2RH6-ND
ECCNEAR99
Electrical Life-
Family SeriesSquare D Switches, Harm.
FeaturesFinger-Safe Terminals, -
Gross Weight0.29 lbs
Gtin785901033691
Head MaterialMetal
Head TypeRound
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
IP Rating66, IP66
ItemNon-Illuminated Push Bu.
Item Number9001KR2RH6
Item TypePush-button
Knob Stylerecessed
LegendNo legend
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number575515
Manufacturer Product Nu.9001KR2RH6
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Life-
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount, Front, Pan.
Mpn9001KR2RH6
NEMA Contact Rating Des.A600/Q600
Nema RatingNEMA 1/2/3/3R/4/6/12/13
NEMA RatingNEMA 4, 1, 12, 13, 2, 3.
Net Weight0.27 lbs
Nominal Mounting Size30 mm
Number of Operators1
Operating Temperature-
OperationMomentary
Operator Size (mm)30 mm
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Product SeriesHarmony 9001K
Product StatusActive
Product TypeNon-Illuminated Push Bu.
Series9001K, Harmony 9001K Se.
Size30 mm
Special FeaturesEXTENDED METALLIC GUARD
StandardNEMA-UL LISTED FILE E42.
StandardsCE, CSA, UL
Sub BrandK
Switch FunctionOn-Off
Terminal ConnectionPressure Plate
Terminal TypeScrew, Screws
TerminationScrew
Termination StyleScrew Terminal
TypePush Button, standard
Type of OperatorExtended Button
UNSPSC39122216
Upc785901033691
UPC785901033691
UPC Code785901033691
Voltage600V
Voltage Rating600 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9001KR2RH636.941In StockSchneider Electric36.94 @ 1
thumbzoomZoroG222994543.4513Schneider Electric0.2843.45 @ 1
thumbzoomGalco9001KR2RH6-SQD47.7111Square D0.2947.71 @ 1
thumbzoomblackhawksupply.com9001KR2RH649.491In StockSquare D49.49 @ 1
thumbzoomgordonelectricsupply.com9001KR2RH658.091In Stock10SQUARE D58.09 @ 1
Graybar2205396077.81761In StockSquare D (Schneider Electric)77.8176 @ 1
AmazonSCB007ICBQLK85.261In StockSchneider Electric85.26 @ 1
thumbzoommostelectric.com9001KR2RH698.45122SQUARE D/TELEMECANIQUE98.45 @ 1
us.rs-online.com70060353101.341In StockSchneider Electric101.34 @ 1
thumbzoomRaptor SuppliesAG7DDW117.33292351In StockSCHNEIDER ELECTRIC117.3329235 @ 1
thumbzoomDigi-Key17162663120.571In StockSchneider Electric120.57 @ 1
thumbzoomNewark16B9367127.461In StockSCHNEIDER ELECTRIC127.46 @ 1
thumbzoomcrescentelectric.com44274164.191In StockSchneider Electric164.19 @ 1
