Schneider Electric 9001SKS42BH2

B00CON9926

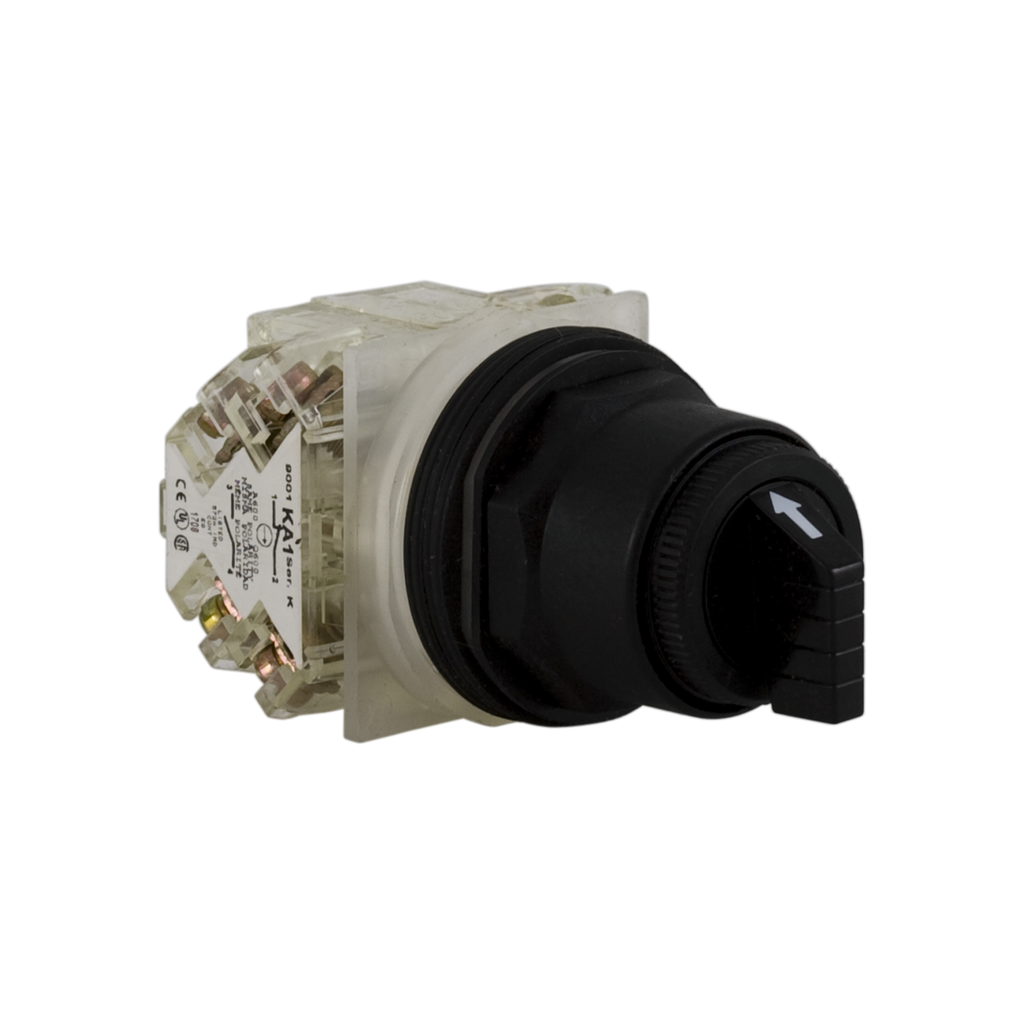

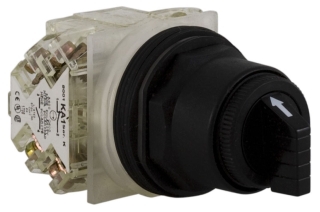

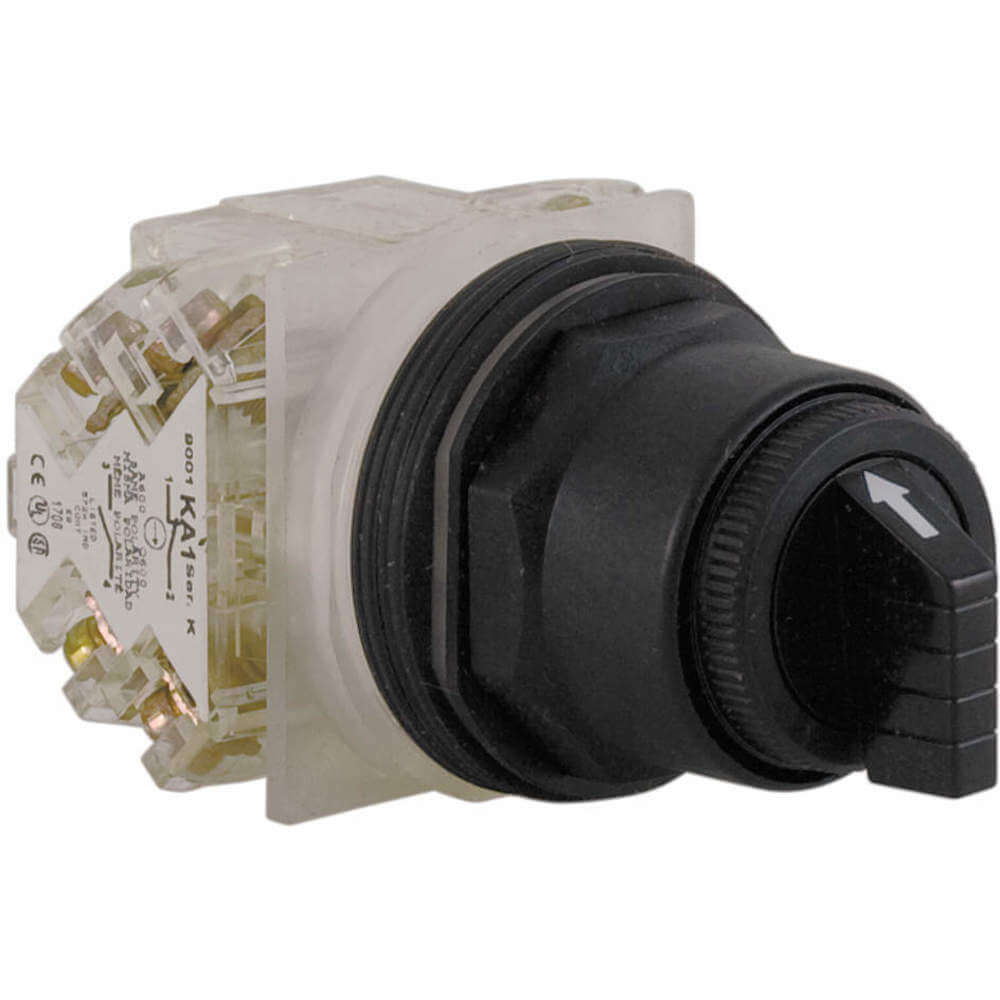

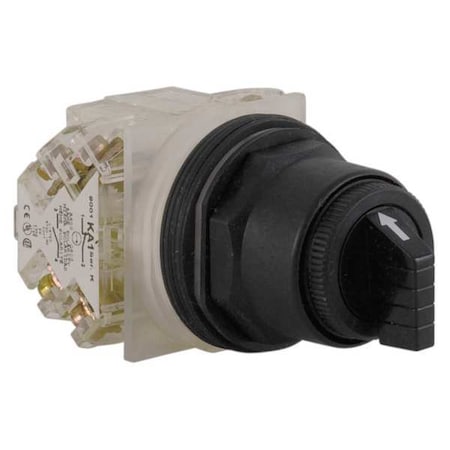

SCHNEIDER ELECTRIC 9001SKS42BH2 Selector Switch 600-Vac 10-Amp 30Mm Sk Electrical Box

SCHNEIDER ELECTRIC 9001SKS42BH2 Selector Switch 600-Vac 10-Amp 30Mm Sk Electrical Boxzoom

Attributes

Key Value
ActionMaintained / Maintained.
Actuator3 positions;Standard ha.
Actuator ColorBlack
Actuator TypeKnob
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage Rating10
Approval AgencyCE, CSA, UL
Basic MaterialPlastic
BezelPlastic
Bezel ColorChrome
Bezel MaterialPlastic
Body StyleStandard
BrandSquare D, Schneider Ele.
California Proposition .Nickel compounds, which.
CamB
Cam Profile2
Cap/Operator Or Lens Co.Black
Catalog Number9001SKS42BH2
CategorySwitches
China Rohs RegulationX
CircuitDPDT
ColorBlack
Color FamilyBlack
ConnectionSCREW CLAMP
Contact Configuration2 C/O
Contact Form2NO/2NC, 2 NC + 2 NO
Contact Rating10A @ 600V AC, AC15 - D.
ContactsSilver Alloy
Contacts Type And Compo.2 C/O
Country of OriginMX - Mexico, Mexico
Current Rating10 A
Current Rating (Amps)-
Current Stock9
Depth Behind Flange-
DescriptionSELECTOR SWITCH 600VAC .
Detailed DescriptionSelector Switch 3 Posit.
Device Presentationcomplete product
Device Short Name9001SK
Digi-Key Part Number4008-9001SKS42BH2-ND
ECCNEAR99
Electrical Life-
Electrical Shock Protec.class II IEC 61140
EnclosureNEMA 1/2/3/3R/4/4X/6/12.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Environmental DisclosureENVPEP120820EN
Eu Rohs DirectivePro-active compliance (.
Features-
GTIN00785901043706
Head TypeRound
IlluminationNon-Illuminated
Illumination ColorNone
Illumination Type, Color-
Illumination Voltage (N.-
Ingress ProtectionIP66 - Dust Tight, Wate.
International ShippingNo
Ip Degree Of ProtectionIP66 IEC 60529
IP Rating65
ItemNon-Illuminated Selecto.
Item Typeselector switch
Key RemovalNo Key
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9001SKS42BH2
Manufacturer Standard L.1 Weeks
MaterialPlastic
Mechanical Life-
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 ; 1.18 mm ; in
Mounting TypePanel Mount
Mpn9001SKS42BH2
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1/2/3/3R/4/4X/6/12.
NEMA Rating12, 13, 3, 3R, 4, 4X
Number of Positions3
Operating Temperature-25?C ~ 70?C, -25-70 A .
OperationMaintained
Operator Head MaterialPolycarbonate
Operator Position Infor.3 positions
Operator Profilestandard handle
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Position3
Product CertificationsUL listed file E42259 C.
Product Or Component Ty.selector switch
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony 9001SK
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Series9001SKS Series, Harmony.
Size30 mm, 1.18
SKUZO-G7069921
Special FeaturesPLASTIC,SELECTOR SWITCH
StandardIP66 IEC 60529,UL LISTE.
StandardsCE Marked, CSA Certifie.
Sub Brand9001SK
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-On, Maintained
Switch Operation @ Posi.XOOX
Switch Operation @ Posi.XOXO
Switch Operation @ Posi.OXXO
Switch Operation @ Posi.No Fourth Position
TerminationScrew
Termination StyleScrew Terminal
Toxic Heavy Metal FreeYes
TypeSelector, Standard
Type Of Operatorstay put
Type of OperatorLever
UNSPSC39122216
UPC785901043706
UPC Code785901043706
Voltage Rating600V, 600 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7069921106.99134Schneider Electric0.25106.99 @ 1
Graybar22097270128.26241In StockSquare D (Schneider Electric)128.2624 @ 1
thumbzoomsimsupply.comZO-G7069921133.8219Schneider Electric133.82 @ 1
thumbzoomgordonelectricsupply.com9001SKS42BH2140.591In Stock10SQUARE D140.59 @ 1
thumbzoommostelectric.com9001SKS42BH2151.15194SQUARE D/TELEMECANIQUE151.15 @ 1
Grainger45J169152.51220SCHNEIDER ELECTRIC152.5 @ 1
standardelectricsupply.com190297158.981In StockSquare D158.98 @ 1
thumbzoommayerelectric.comSQD9001SKS42BH2163.231In StockSQUARE D163.23 @ 1
Newark17B560182.41In StockSQUARE D BY SCHNEIDER ELECTRIC182.4 @ 1
thumbzoomDigi-Key17161281185.131In StockSchneider Electric185.13 @ 1
thumbzoomsustainablesupply.comC1197515185.291In StockSchneider Electric0.25185.29 @ 1
us.rs-online.com70060482185.511Square D185.5 @ 1
thumbzoomNational Supply Network69652840187.491In StockSchneider Electric187.49 @ 1
thumbzoomRaptor SuppliesAH9WGU250.7780341In StockSCHNEIDER ELECTRIC250.778034 @ 1
thumbzoomcrescentelectric.com59968262.641In StockSquare D262.64 @ 1
