mpn:
brand:
manufacturer:
MPN:
Description:

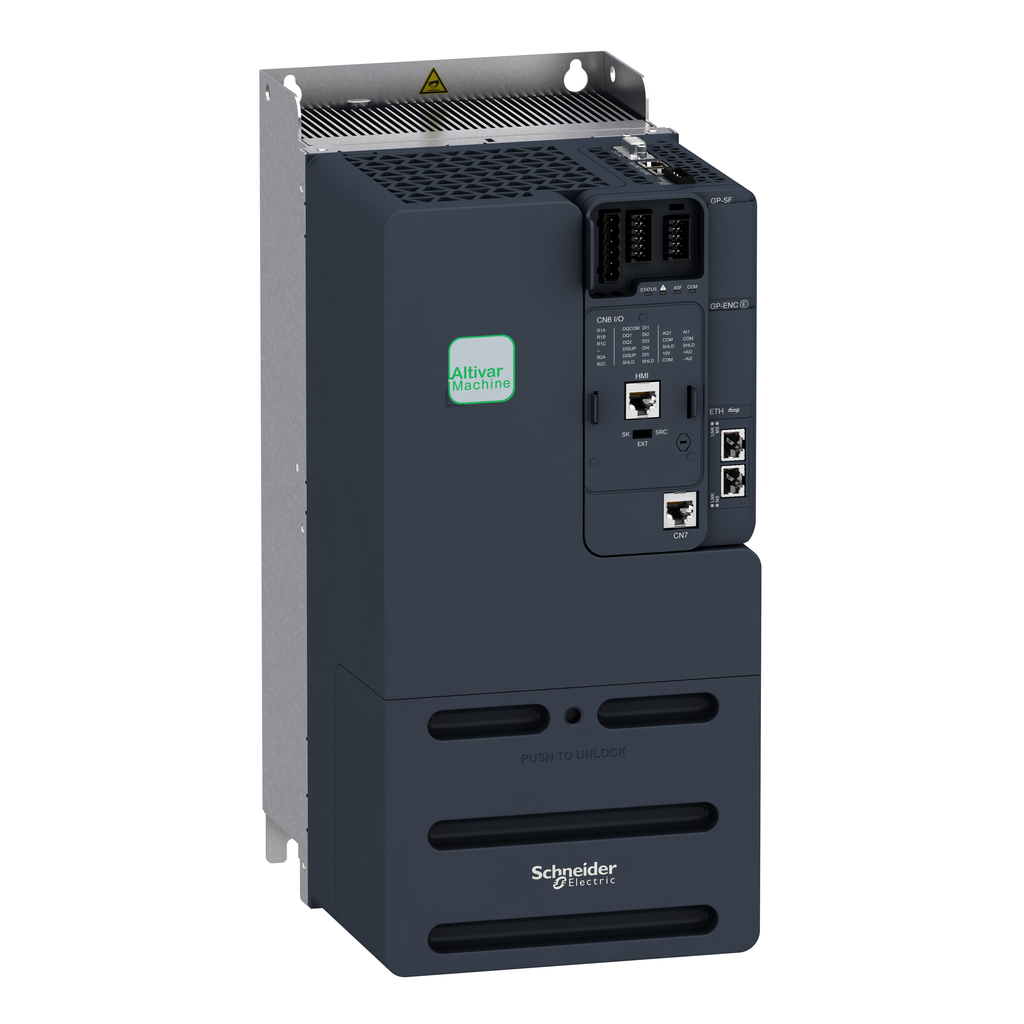

ACDrive, ATV340, Ethernet, 380-480VAC, 3P, 20HP HD/25HP ND, IP20
Weight:
1.565625
Weight:
1.565625 LB
Preferred Price:
3065.64
Price:
3065.64
Min Simple Price:
1732.0
Absolute Min Price:
2459.44
Min Price:
2459.44
Dimensions:
[23.0, 14.0, 13.0]
qty:
21
simpleSku:
MTUyMQ:::ATV340D15N4E
sku:
MTUyMQ::31:ATV340D15N4E@y0
condition:
11
seller:
Nex Instrument
amzMan:
schneider
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| 4 Quadrant Operation Possible | true |
| [Us] Rated Supply Voltage | 380...480 V - 15...10 % |
| Acceleration And Deceleration Ramps | linear adjustable separately from 0.01...9999 s || S, U or customized |
| Ambient Air Temperature For Operation | -15-50 ?C without derating vertical position) || 50-60 ?C with derating factor vertical position) |
| Analogue Input Number | 2 |
| Analogue Input Type | AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits |
| Analogue Output Number | 2 |
| Analogue Output Type | software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits |
| Apparent Power | 28.3 kVA 480 V normal duty) || 29.7 kVA 480 V heavy duty) |
| Application | machine, Industrial Process and Utilities |
| Asynchronous Motor Control Profile | optimized torque mode || variable torque standard || constant torque standard |
| Base Load Current At High Overload | 32.0 A |
| Base Load Current At Low Overload | 39.0 A |
| Brake Chopper Integrated | true |
| Braking To Standstill | by DC injection |
| Brand | Schneider Electric |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number | ATV340D15N4E |
| Category | Motors, Actuators, Solenoids and Drivers |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1609006EN |
| Communication | Modbus serial;Modbus TCP;EtherNet/IP;2-wire RS 485 |
| Communication Port Protocol | Modbus serial || Modbus TCP || EtherNet/IP |
| Condition | New |
| Connector Type | 3 RJ45 |
| Continuous Output Current | 39 A 4 kHz normal duty || 32 A 4 kHz heavy duty |
| Control / Drive Type | Variable Frequency Drive (VFD) |
| Control Method | Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard |
| Country of Origin | Indonesia, 00 - Unknown |
| Current - Output | 39A |
| Data Format | 8 bits, configurable odd, even or no parity |
| Depth | 249.0 mm, 9.8 in |
| Description | VARIABLE SPEED DRIVE, ALTIVAR MA |
| Detailed Description | Variable Frequency Drive (VFD) Supply 39A 380 ~ 480V Load |
| Digi-Key Part Number | 4008-ATV340D15N4E-ND |
| Digital Readout | No |
| Discrete Input Logic | 16 preset speeds |
| Discrete Input Number | 5 |
| Discrete Input Type | PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V) || DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm || programmable |
| Discrete Output Number | 2.0 |
| Discrete Output Type | programmable output DQ1, DQ2 30 V DC 100 mA |
| Display Type | None |
| Dynamic Braking | No |
| ECCN | EAR99 |
| Electrical Connection | screw terminal 0.2...2.5 mm? control || screw terminal 6...25 mm? line side || screw terminal 6...25 mm? DC bus || screw terminal 4...25 mm? motor, control screw terminal 0.2...2.5 mm? AWG 24...AWG 12 || line side screw terminal 6...25 mm? AWG 8...AWG 3 || DC bus screw terminal 6...25 mm? AWG 8...AWG 3 || motor screw terminal 4...25 mm? AWG 10...AWG 3 |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 ?s - 8/20 ?s surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 |
| Emc Filter | class C3 EMC filter integrated |
| Enclosure Rating | NEMA 1 |
| Environmental Class (During Operation) | class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3 |
| Environmental Disclosure | ENVPEP1609006EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Family Series | Square D Miscellaneous |
| Features | - |
| For Use With | Three-phase supply voltage: 380...480 V 50/60 Hz |
| For Use With/Related Products | - |
| Gross Weight | 0 lbs |
| GTIN | 03606480967061 |
| Height | 15.16 in, 385.0 mm |
| Horse Power | 25 |
| Input Frequency | 50/60 Hz |
| Input Phase | 1 |
| Input Phase AC | Three |
| Input Type | Analog, Discrete |
| Input Voltage | 380...480 V - 15...10 %, 480V AC |
| Interface | RS-485 |
| Ip Degree Of Protection | IP20 |
| Item | variable speed drive |
| Item Number | ATV340D15N4E |
| Item Type | Variable speed drive;3 RJ45 |
| Line Current | 37.4 A 380 V normal duty) || 30.2 A 480 V normal duty) || 44.9 A 380 V heavy duty) || 35.7 A 480 V heavy duty), 44.9 A 380 V without line choke heavy duty) || 35.7 A 480 V without line choke heavy duty) || 42.4 A 380 V with external line choke normal duty) || 34.1 A 480 V with external line choke normal duty) || 45.5 A 380 V with external line choke heavy duty) || 36.0 A 480 V with external line choke heavy duty) |
| Made in USA | No |
| Manufacturer | Square D, Schneider Electric |
| Manufacturer Product Number | ATV340D15N4E |
| Manufacturer Standard Lead Time | 2 Weeks |
| Marking | CE |
| Max. HP | 20 hp, 25 hp |
| Max. Output Amps | 42.9 A, 48 A, 52.7 A, 58 A |
| Maximum Acceleration Under Shock Impact (During Operation) | 70 m/s? at 22 ms |
| Maximum Acceleration Under Vibrational Stress (During Operation) | 5 m/s? at 9...200 Hz |
| Maximum Deflection Under Vibratory Load (During Operation) | 1.5 mm at 2...9 Hz |
| Maximum Horse Power Rating | 25 hp normal duty || 20 hp heavy duty |
| Maximum Output Frequency | 0.599 kHz |
| Maximum Output Voltage | 480 V |
| Maximum Switching Current | relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2C resistive, cos phi = 1 5 A 30 V DC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC |
| Maximum Transient Current | 42.9 A 60 s normal duty) || 48 A 60 s heavy duty) || 52.7 A 2 s normal duty) || 58 A 2 s heavy duty) |
| Mercury Free | Yes |
| Method Of Access | slave Modbus RTU || slave Modbus TCP |
| Mfr | Schneider Electric |
| Minimum Switching Current | relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC |
| Motor Power Kw | 18.5 kW normal duty || 15 kW heavy duty |
| Motor Slip Compensation | automatic whatever the load || not available in permanent magnet motor law || can be suppressed || adjustable |
| Motor Type | AC Motor |
| Mounting | cabinet mount |
| Mounting Mode | cabinet mount |
| Mounting Type | Chassis Mount |
| Net Weight | 9.5 kg, 0 lbs |
| Nominal Output Current | 32.0 A |
| Nominal Switching Frequency | 4 kHz |
| Number Of Addresses | 1-247 |
| Number of Motors | 1 |
| Operating Temperature | -15?C ~ 60?C |
| Output Voltage | 480V AC |
| Overall Depth | 9 3/4 in |
| Overall Height | 5 1/8 in |
| Overall Width | 7 1/8 in |
| Overvoltage Category | class III |
| Package | Box |
| Permitted Relative Humidity (During Operation) | class 3K5 according to EN 60721-3 |
| Phase | 3, 3 phase |
| Physical Interface | 2-wire RS 485 |
| Pollution Degree | 2 IEC 61800-5-1, 2 |
| Power Dissipation In W | natural convection 18 W 380 V 4 kHz heavy duty) || forced convection 346 W 380 V 4 kHz heavy duty) || natural convection 21 W 380 V 4 kHz normal duty) || forced convection 411 W 380 V 4 kHz normal duty) |
| Product Certifications | UL || CSA || T?V || EAC || CTick |
| Product Or Component Type | variable speed drive |
| Product Specific Application | machine |
| Product Status | Active |
| Prospective Line Isc | 22 kA |
| Protection | Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection |
| Protection Type | thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent between motor phases drive || short-circuit between motor phase and earth drive || short-circuit between motor phases drive || motor phase loss drive || DC Bus overvoltage drive || line supply overvoltage drive || line supply undervoltage drive || input supply loss drive || exceeding limit speed drive || break on the control circuit drive |
| Range Of Product | Altivar Machine ATV340 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Regulation Loop | adjustable PID regulator |
| Relay Output Number | 2 |
| Relay Output Type | relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles |
| Rohs Exemption Information | Yes |
| Series | Altivar 340, Altivar, Altivar ATV340 |
| Special Features | Screw terminal 0.2...2.5 mm? control;screw terminal 6...25 mm? line side;screw terminal 6...25 mm? DC bus;screw terminal 4...25 mm? motor;Optimized torque mode;variable torque standard;constant torque standard;Control screw terminal 0.2...2.5 mm? AWG 24...AWG 12;line side screw terminal 6...25 mm? AWG 8...AWG 3;DC bus screw terminal 6...25 mm? AWG 8...AWG 3;motor screw terminal 4...25 mm? AWG 10...AWG 3;16 preset speeds;Thermal protection motor;safe torque off motor;motor phase loss motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent drive;output overcurrent between motor phase and earth drive;output overcurrent between motor phases drive;short-circuit between motor phase and earth drive;short-circuit between motor phases drive;motor phase loss drive;DC Bus overvoltage drive;line supply overvoltage drive;line supply undervoltage drive;input supply loss drive;exceeding limit speed drive;break on the control circuit drive |
| Standard | IP20 |
| Standards | EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1, IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C |
| Supply Frequency | 50...60 Hz +/- 5 % |
| Sustainable Offer Status | Green Premium product |
| Switching Frequency | 2...16 kHz adjustable || 7...16 kHz with derating factor |
| Synchronous Motor Control Profile | reluctance motor || permanent magnet motor |
| Transmission Frame | RTU |
| Transmission Rate | 4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s |
| Type | Module |
| Type Of Polarization | no impedance |
| UNSPSC | 39121029 |
| UPC | 785901742968 |
| UPC Code | 785901742968 |
| Upgradeability | Upgraded components available |
| Variant | standard version |
| Voltage - Load | 380 ~ 480V |
| Voltage - Supply | - |
| Volume Of Cooling Air | 128.0 m3/h |
| Wattage - Load | 15000 W |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Weight | 2.000000, - |
| Width | 7.09 in, 180.0 mm |
| With Line Contactor / No Line Contactor | With Line Contactor |
| With Safety Function Safe Brake Management (Sbc/Sbt) | true |
| With Safety Function Safe Direction (Sdi) | false |
| With Safety Function Safe Operating Stop (Sos) | false |
| With Safety Function Safe Position (Sp) | false |
| With Safety Function Safe Programmable Logic | false |
| With Safety Function Safe Speed Monitor (Ssm) | false |
| With Safety Function Safe Stop 1 (Ss1) | true |
| With Safety Function Safe Torque Off (Sto) | true |
| With Safety Function Safely Limited Position (Slp) | false |
| With Safety Function Safely Limited Speed (Sls) | true |
| With Sft Fct Safe Stop 2 (Ss2) | false |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Nex Instrument | ATV340D15N4E | 1732.0 | 1732.0 | 1 | In Stock | Schneider Electric | 1732.0 @ Qty: 1+ | ||
 | Digi-Key | 16612552 | 3128.39 | 3128.39 | 1 | In Stock | Schneider Electric | 3128.39 @ Qty: 1+ | ||
 | blackhawksupply.com | ATV340D15N4E | 3159.0 | 3159.0 | 1 | In Stock | Square D | 3159.0 @ Qty: 1+ | ||
 | Newark | 57AC0272 | 3180.99 | 3180.99 | 1 | In Stock | SCHNEIDER ELECTRIC | 3180.99 @ Qty: 1+ | ||
| RS Delivers | 181-4515 | 3202.968 | 3202.968 | 1 | In Stock | Schneider Electric | 3202.968 @ Qty: 1+ | |||
 | industrialrefrigerationparts.com | ATV340D15N4E | 3234.82 | 3234.82 | 1 | In Stock | Square D | 2.0 | 3234.82 @ Qty: 1+ | |
| industrialautomationparts.com | AE-009519 | 3251.1 | 3251.1 | 1 | In Stock | Schneider Electric | 3251.1 @ Qty: 1+ | |||
| standardelectricsupply.com | 2327786 | 3324.92 | 3324.92 | 1 | In Stock | Schneider Electric | 3324.92 @ Qty: 1+ | |||
 | mayerelectric.com | SQDATV340D15N4E | 3460.48 | 3460.48 | 1 | In Stock | SQUARE D | 20.9 | 3460.48 @ Qty: 1+ | |
 | Zoro | G0199616 | 3843.99 | 3843.99 | 1 | In Stock | Schneider Electric | 25.05 | 3843.99 @ Qty: 1+ | |
 | Galco | ATV340D15N4E-SQD | 3875.63 | 3875.63 | 1 | In Stock | Square D | 3875.63 @ Qty: 1+ | ||
| Graybar | 26044541 | 3921.792 | 3921.792 | 1 | In Stock | Square D (Schneider Electric) | 3921.792 @ Qty: 1+ | |||
| us.rs-online.com | 71104734 | 4262.8 | 4262.8 | 1 | 1 | Schneider Electric | 4262.8 @ Qty: 1+ | |||
 | crescentelectric.com | 955295 | 4706.26 | 4706.26 | 1 | In Stock | Schneider Electric | 4706.26 @ Qty: 1+ |
