| Ambient Air Temperature For Operation | 0-60 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Communication Service | Global Data || Modbus TCP messaging || security |
| Control Type | RESET push-button cold restart |
| Current Consumption | 90 mA 24 V DC |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility |
| Environmental Disclosure | ENVPEP070204EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Integrated Connection Type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair |
| Ip Degree Of Protection | IP20 |
| Local Signalling | for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for data rate (ETH 100) 1 LED (red) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red) |
| Marking | CE |
| Memory Description | supplied Flash memory card (BMXRWSC016M) |
| Mercury Free, Rohs Exemption Information | Yes |
| Module Format | standard |
| Net Weight | 0.2 kg |
| Port Ethernet | 10BASE-T/100BASE-TX |

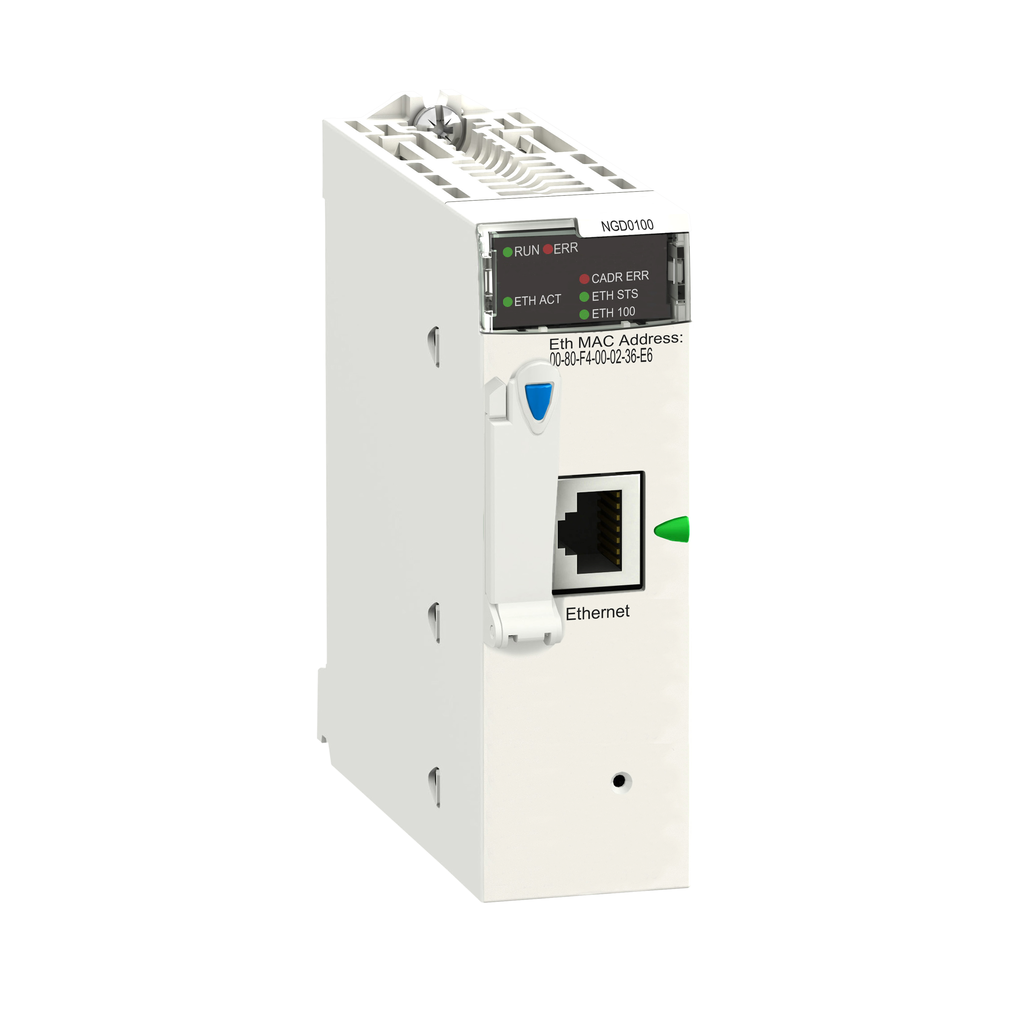

| Product Or Component Type | Ethernet TCP/IP network module |
| Protective Treatment | TC |
| Range Of Product | Modicon M580 |
| Relative Humidity | 10-95 % without condensation |
| Supply | internal power supply via rack |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
