| Ambient Air Temperature For Operation | -25-70 ?C |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI0702004EN |
| Communication Service | bandwidth management || Modbus TCP messaging || DNP3/DNP3 IP protocol || IEC 60870-5 -101/-104 protocol || time stamped events management || external modem management (serial, PSTN, GSM, GPRS/3G) || data logging in CSV files || Email/SMS notifications || web server, rack viewer, data editor || BootP, DHCP, FDR client || SMTP server, FTP client/server, NTP client, SNMP agent, || automatic events backup on power loss || multi-protocols support in a single module (master and slave) || transparent events routing from remote slaves to SCADA |
| Concept | Transparent Ready |
| Current Consumption | 95 mA 24 V DC |
| Directives | 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive |
| Environmental Characteristic | gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2 |
| Environmental Disclosure | ENVPEP070204EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Integrated Connection Type | Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 || serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30 |
| Ip Degree Of Protection | IP20 |
| Local Signalling | for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red) || for download in progress (DL) 1 LED (red) || for serial communication (SER COM) 1 LED (yellow) || for data rate (ETH LINK) 1 LED (green) |
| Marking | CE |
| Memory Description | supplied Flash SD memory card (BMXRWS128MWF) 128000 kB |
| Memory Usage | activating the standard web server || user web pages storage || data logging CSV files storage |
| Mercury Free, Reach Free Of Svhc, Rohs Exemption Information | Yes |
| Module Format | standard |
| Net Weight | 0.2 kg |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Product Certifications | CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 |

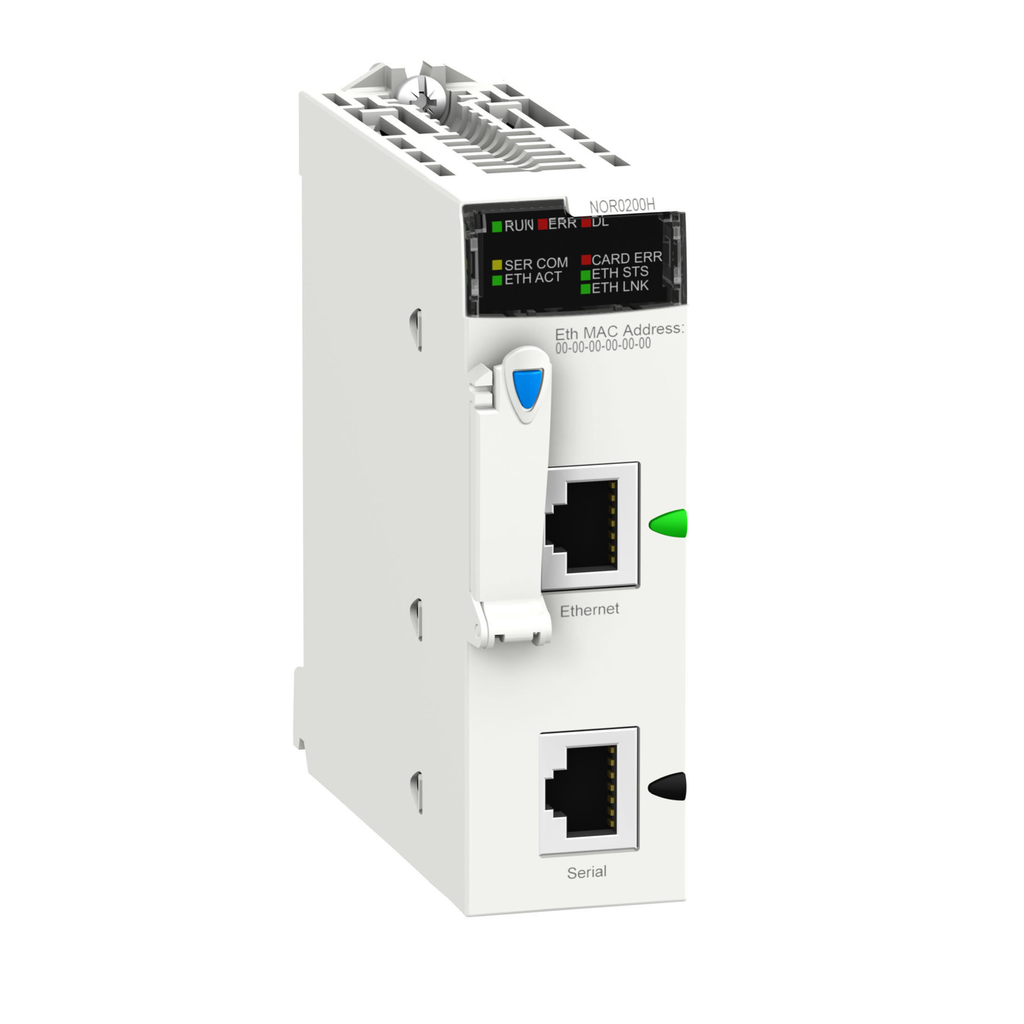

| Product Or Component Type | Ethernet/Serial RTU module |
| Product Specific Application | for standard & severe environments |
| Protective Treatment | conformal coating |
| Range Of Product | Modicon X80 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Relative Humidity | 10-95 % without condensation |
| Standards | EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 || EN/IEC 61850-3 || EN/IEC 60079-0 |
| Supply | internal power supply via rack |
| Sustainable Offer Status | Green Premium product |
| Warranty | 18 months |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
