Schneider Electric BRS39AW661ACA

B01BRSCZ9M

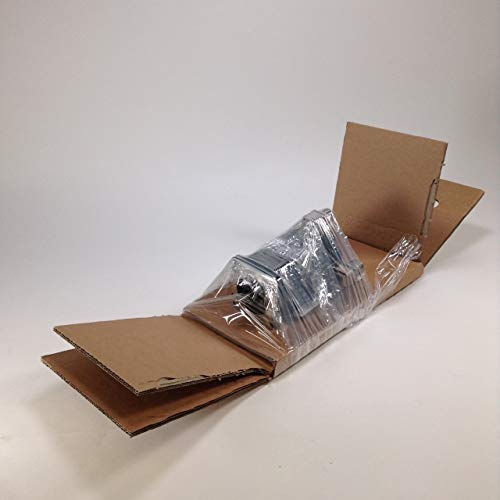

Schneider Electric BRS39AW661ACA 3PH Stepper Motor Lexium SD3 New NFP

Schneider Electric BRS39AW661ACA 3PH Stepper Motor Lexium SD3 New NFPzoom

Attributes

Key Value
Accuracy Error+/- 6 arc min
Ambient Air Temperature.-25-40 ?C
Ambient Air Temperature.-25-70 ?C
Angular Acceleration200000 rad/s?
BrandSchneider Electric
California Proposition .Lead and lead compounds.
Catalog NumberBRS39AW661ACA
Centring Collar Depth2 mm
Centring Collar Diameter60 mm
China Rohs RegulationX
Circle Diameter Of The .98.99 mm
Country of OriginGermany
Device Short NameBRS3
Electrical Connectionconnector
Environmental DisclosureENVPEP111101EN
Eu Rohs DirectivePro-active compliance (.
Feedback Typesingle turn encoder
Holding Brakewithout
Holding Torque4.8 N.m
Ip Degree Of Protectiontotal except shaft bush.
Length141 mm
Line Rated Current5.8 A
Made in USANo
ManufacturerSchneider Electric
Maximum Axial Force Fa175 N tensile force) ||.
Maximum Mechanical Speed3000 rpm
Maximum Radial Force Fr110 N first shaft end) .
Maximum Starting Freque.5.3 kHz
Mercury FreeYes
Motor Flange Size85 mm
Motor Type3-phase stepper motor
Mounting Holes Diameter6.5 mm
Mounting Supportflange
Net Weight3.2 kg
Nominal Torque4 N.m
Number Of Motor Poles6
Number Of Mounting Holes4
Product Or Component Ty.motion control motor
Pvc FreeYes
Range CompatibilityLexium SD3
Reach RegulationReference contains Subs.
Relative Humidity15-85 % without condens.
Resistance0.55 Ohm winding)
Resolution1.8 ?, 0.9 ?, 0.72 ?, 0.
Rohs Exemption Informat.Yes
Rotor Inertia2.2 kg.cm?
Second Shaftwithout second shaft end
Service Life In Hours20000 h bearing)
Shaft Diameter12 mm
Shaft Endwoodruff key
Shaft Length30 mm
Speed Feedback Resoluti.10000 points/turn
StandardsIEC 60072-1 || EN 50347
Supply Voltage Limits230-230 V AC || 325-325.
Sustainable Offer StatusGreen Premium product
Temperature ClassF winding IEC/EN 60034-1
Time Constant9 ms
Type Of Coolingnatural convection
Vibration Resistance20 m/s? maximum || A EN.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellBRS39AW661ACA1672.011In StockSCHNEIDER ELECTRIC1672.01 @ 1
gordonelectricsupply.comBRS39AW661ACA1695.01In Stock10SQUARE D1695.0 @ 1
us.rs-online.com722587552095.041In StockSchneider Electric2095.04 @ 1
thumbzoommayerelectric.comSQDBRS39AW661ACA2213.341In StockSQUARE D7.042213.34 @ 1
thumbzoomcrescentelectric.com11589012387.041In StockSchneider Electric2387.04 @ 1
