Schneider Electric CA2KN22B7

B001ZUQJH2

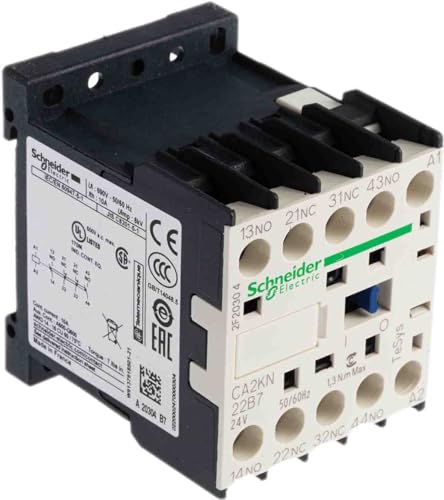

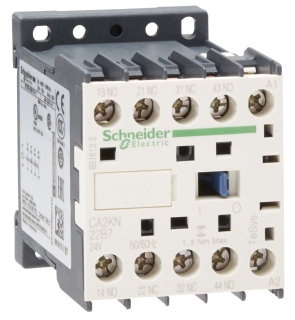

IEC Control Relay, 2NO/2NC, 24VAC, 10A

IEC Control Relay, 2NO/2NC, 24VAC, 10Azoom

Attributes

Key Value
[Ith] Conventional Free.10 A (at 50 ?C)
[Uc] Control Circuit Vo.24 V AC 50/60 Hz
[Ui] Rated Insulation V.690 V IEC 60947 || 750 .
AC Contact Rating - Rel.10 A @ 120/240/480/600V.
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
Applicationcontrol circuit
ApprovalsCSA, UL
Associated Fuse Rating10 A gG conforming to I.
Body Depth - Relay2.24 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberCA2KN22B7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Coil Rating30VA Inrush, 4.5VA Seal.
Coil Voltage24 VAC
Coil Volts24V AC
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration2 NO, 2 NC, 2 NO + 2 NC.
Contact Current Rating10 A
Contact Form2NO/2NC
Contact Form - Relay(2) SPST-NC, (2) SPST-NO
Contact MaterialSilver Nickel
Contact Voltage Rating24 VAC
Contactor Applicationcontrol circuit
Control Circuit TypeAC 50/60 Hz
Control Voltage24
Country of OriginID - Indonesia, Indones.
DC Contact Rating - Rel.2.00A @ 125/250/600V, 2.
Depth0.079 in, 57 mm
Device Short NameCA2K
Dimensions58 x 45 x 57 mm
ECCNEAR99
EnclosureIP2X
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Control Relays
Flame RetardanceV1 conforming to UL 94 .
Gross Weight0.4 lbs
Heat Dissipation1.3-1.3 W
Height58 mm
Hold-In Power Consumpti.4.5-4.5 VA (at 20 ?C)
Hz50/60
Hz - Electrical50 Hz, 60 Hz
Immunity To Microbreaks2 ms
Inrush Power In Va30-30 VA (at 20 ?C)
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A IEC 60947
ItemIEC Control Relay
Item - RelayIEC Style Control Relay
Item NumberCA2KN22B7
Item TypeControl Relay
Length2.283 in
Low Power ConsumptionNo
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number535277
Maximum Operating Rate10000 cyc/h
Maximum Operating Tempe.50 C
Mechanical Durability10 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Operating Tempe.-25 C
Minimum Switching Curre.5 mA
Minimum Switching Volta.17 V
MountingDin Rail/Panel, DIN Rai.
Mounting - RelayDIN Rail, Surface
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount
Net Weight0.0624 lbs, 0.18 kg
Nominal Coil Voltage24 VAC
Non Overlap Distance0.5 mm
Number of Pins - Relay10
Number of Poles4
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles10000 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time10...20 ms coil de-ener.
Overall Height - Relay2.28 in
Pole Contact Composition2 NO + 2 NC
Power Consumption - Rel.4.5 VA
Power Rating30 VA
Primary TypeControl Relay
Product CertificationsCB Scheme || CCC || UL .
Product NameTeSys CAK
Product Or Component Ty.Control Relay
Protective TreatmentTC IEC 60068
RangeTeSys
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Response TimeDrop Out: 8 msec, Pick .
Rohs Exemption Informat.Yes
SeriesTeSys K Series, TeSys K
Size2.24
StandardCSA-UL,IP2X,V1 UL 94-RE.
StandardsCE, CSA, UL, BS 5424 ; .
Sub BrandTeSys CAK;CA2K
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-25 to 50 C
Terminal TypeScrew Clamp
TerminationScrew, Screw Clamp
Thermal Current (A)10 A
Tightening Torque1.3 N.m screw clamp ter.
Toxic Heavy Metal FreeYes
UNSPSC39122331
UPC785901898696
UPC Code785901898696
Utilisation CategoryDC-13 || AC-15
Voltage Rating24 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 45 mm
