Schneider CA2KN22M7

B0028YJGL0

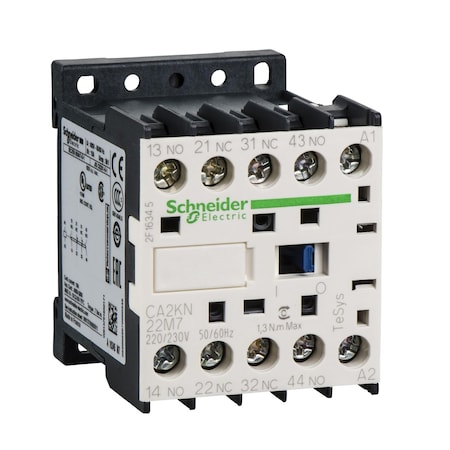

Schneider CA2KN22M7 TeSys K Control Relay - 2 NO + 2 NC - 220.230 V AC Coil

Schneider CA2KN22M7 TeSys K Control Relay - 2 NO + 2 NC - 220.230 V AC Coilzoom

Attributes

Key Value
[Ith] Conventional Free.10 A 50?C, 10 A 50 ?C
[Uc] Control Circuit Vo.220...230 V AC 50/60 Hz
[Ui] Rated Insulation V.690 V IEC 60947 || 750 .
Ambient Air Temperature.-25-50?C, -25-50 ?C
Ambient Air Temperature.-50-80 ?C, -50-80?C
Applicationcontrol circuit
Associated Fuse Rating10 A gG IEC 60947 || 10.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberCA2KN22M7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration2 NO + 2 NC
Contactor Applicationcontrol circuit
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.drop-out 0.2 to 0.75 Uc.
Country of OriginIndonesia
Depth57 mm
Device Short NameCA2K
EnclosureIP2X
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Flame RetardanceV1 conforming to UL 94 .
Heat Dissipation1.3-1.3 W
Height58 mm
Hold-In Power Consumpti.4.5-4.5 VA 20 ?C), 4.5-.
Immunity To Microbreaks2 ms
Inrush Power In Va30-30 VA 20 ?C), 30-30 .
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A IEC 60947
ItemControl Relay 600Vac 10.
Item Typecontrol relay
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate10000 cyc/h
Mechanical Durability10 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA
Minimum Switching Volta.17 V
MountingRail Plate
Mounting Supportrail || plate
Net Weight0.18 kg
Non Overlap Distance0.5 mm
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles10000 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time10...20 ms coil de-ener.
Pole Contact Composition2 NO + 2 NC
Product CertificationsCB Scheme || CCC || UL .
Product NameTeSys CAK
Product Or Component Ty.control relay
Protective TreatmentTC IEC 60068
RangeTeSys
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Size2.24
StandardCSA-UL,IP2X,V1 UL 94-RE.
StandardsEN/IEC 60947-4-1 || GB/.
Sub BrandTeSys CAK;CA2K
Sustainable Offer StatusGreen Premium product
Tightening Torque1.3 N.m screw clamp ter.
Toxic Heavy Metal FreeYes
UPC785901898757
UPC Code785901898757
Utilisation CategoryAC-15 || DC-13
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB0028YJGL030.01In StockSchneider30.0 @ 1
thumbzoomZoroG057001137.751In StockSchneider Electric0.4137.75 @ 1
us.rs-online.com7112342138.1211Schneider Electric38.12 @ 1
thumbzoommayerelectric.comSQDCA2KN22M741.221In StockSCHNEIDER ELECTRIC0.39641.22 @ 1
thumbzoommostelectric.comCA2KN22M742.991In StockSQUARE D/TELEMECANIQUE42.99 @ 1
thumbzoomkempstoncontrols.co.ukCA2KN22M745.10741951In StockSchneider45.1074195 @ 1
thumbzoomNewark15B681248.161In StockSCHNEIDER ELECTRIC48.16 @ 1
thumbzoomsustainablesupply.comC299489751.051In StockSchneider Electric0.4151.05 @ 1
thumbzoomNational Supply Network6966267459.551In StockSchneider Electric59.55 @ 1
thumbzoomcrescentelectric.com25074263.211In StockSchneider Electric63.21 @ 1
