CAI - SCHNEIDER ELECTRIC CA2KN22U7

B07J2W3683

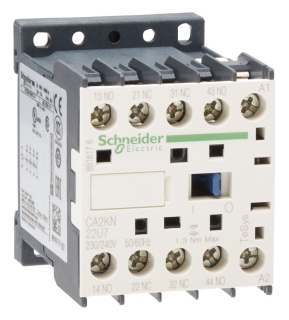

Schneider Electric IEC Style Control Relay, 240VAC, 10A @ 120/240/480/600V, 2.00A @ 125/250/600V, 10 Pins

Schneider Electric IEC Style Control Relay, 240VAC, 10A @ 120/240/480/600V, 2.00A @ 125/250/600V, 10 Pinszoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120/240/480/600V
ApplicationControl circuit
ApprovalsCSA, UL
Body Depth - Relay2.24 in
Body Height - Relay2.28 in
Body Width - Relay1.77 in
BrandSchneider Electric
Catalog NumberCA2KN22U7
Coil Rating30VA Inrush, 4.5VA Seal.
Coil Voltage230 VAC, 240 VAC
Coil Volts240V AC
Connectionscrew clamp terminals 1.
Contact Amp Rating (Res.10A
Contact Configuration2 NO + 2 NC, 2NO, 2NC
Contact Form2NO/2NC
Contact Form - Relay(2) SPST-NC, (2) SPST-NO
Contact MaterialSilver Nickel
Country of OriginIndonesia
DC Contact Rating - Rel.2.00A @ 125/250/600V
Depth57 mm
EnclosureIP2X
Family NameTeSys Family
Family SeriesSquare D Control Relays
Gross Weight0 lbs
Height58 mm
Hz50/60
Hz - Electrical50 Hz, 60 Hz
ItemIEC Control Relay
Item - RelayIEC Style Control Relay
Item NumberCA2KN22U7
Item TypeControl relay
Low Power ConsumptionNo
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number526434
MountingDin Rail/Panel, DIN Rai.
Mounting - RelayDIN Rail, Surface
Net Weight0 lbs
Nominal Coil Voltage240 VAC
Number of Pins - Relay10
Operating Cycles10000 CYC/H
Operating Temperature-25-50 A Degrees C
Overall Height - Relay2.28 in
Power Consumption - Rel.4.5 VA
SeriesTeSys K Series
Size2.24
StandardCSA-UL,IP2X,V1 UL 94-RE.
StandardsCE, CSA, UL
Sub BrandTeSys CAK;CA2K
TerminationScrew
Thermal Current (A)10 A
UPC785901150718
UPC Code785901150718
Warranty DescriptionContractual Warranty:18.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark79C532136.01In StockSCHNEIDER ELECTRIC36.0 @ 1
thumbzoomgordonelectricsupply.comCA2KN22U737.291In Stock10SQUARE D37.29 @ 1
thumbzoomZoroG089565739.5513Schneider Electric0.3539.55 @ 1
thumbzoommostelectric.comCA2KN22U742.9919SQUARE D/TELEMECANIQUE42.99 @ 1
thumbzoomGalcoCA2KN22U7-SQD43.011In StockSquare D43.01 @ 1
RS Delivers758-86643.224129Schneider Electric43.224 @ 1
thumbzoomkempstoncontrols.co.ukCA2KN22U743.55430311Schneider43.554303 @ 1
thumbzoomblackhawksupply.comCA2KN22U747.81In StockSquare D47.8 @ 1
us.rs-online.com7037903349.7511Schneider Electric49.75 @ 1
AmazonSCB078F14TNM50.21In StockSchneider50.2 @ 1
thumbzoomsustainablesupply.comC118398754.411In StockSchneider Electric0.3554.41 @ 1
thumbzoomcrescentelectric.com14271063.211In StockSchneider Electric63.21 @ 1
thumbzoomNational Supply Network6966265867.771In StockSchneider Electric67.77 @ 1
thumbzoomRaptor SuppliesAH2QKX83.2425751In StockSCHNEIDER ELECTRIC83.242575 @ 1
industrialrefrigerationparts.comCA2KN22U71887.091In StockSchneider Electric1887.09 @ 1
