Schneider Electric DF143NC

mpnDF143NC
brandname: SCHNEIDER ELECTRIC
manufacturername: SCHNEIDER ELECTRIC

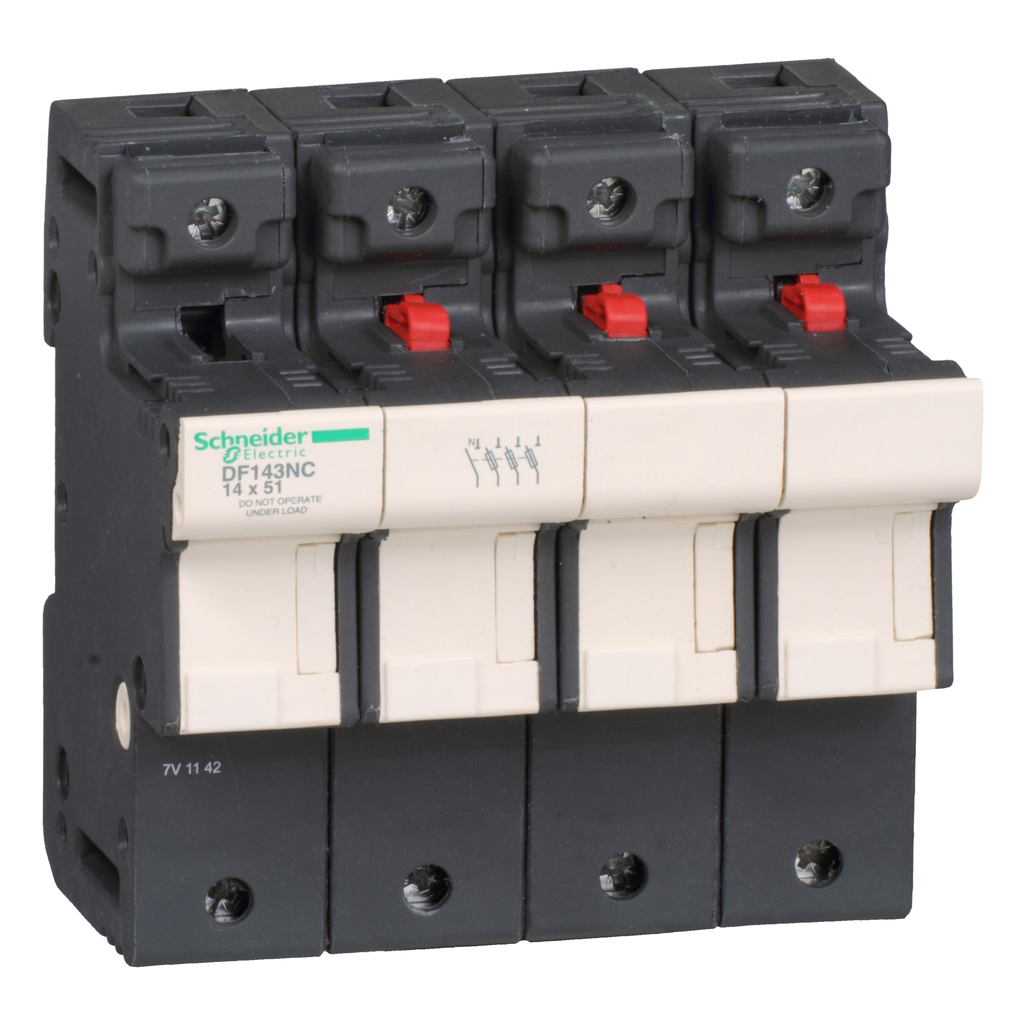

Schneider Electric DF143NC Fuse Holder New NFP

Brand: Schneider Electric
PartNumber: DF143NC
Model: DF143NC
PackageQuantity: 1
Binding: Misc.
Manufacturer: Schneider Electric
Label: Schneider Electric

Attributes

Key	Value
[Ie] Rated Operational .	50 A
[Ipk] Rated Peak Withst.	15 kA with tubular link.
[Ue] Rated Operational .	690 V AC \|\| 690 V DC
[Ui] Rated Insulation V.	690 V AC
[Uimp] Rated Impulse Wi.	8 kV
Ambient Air Temperature.	-20-60 ?C with derating.
Ambient Air Temperature.	-40-80 ?C
California Proposition .	Cancer - www.P65Warning.
Category	Circuit Protection
China Rohs Regulation	Pro-active China RoHS d.
Compatibility Code	DF14
Connections - Terminals	screw clamp terminals 1.
Contact Finish	-
Contact Material	-
Control Type	toggle
Current Rating (Amps)	50 A
Depth	76.5 mm
Description	FUSEHOLDER 600V 50AMP 3.
Detailed Description	Fuse Holder 50 A 690V 3.
Device Composition	tubular link locked in .
Device Short Name	DF14
Digi-Key Part Number	4008-DF143NC-ND
Environmental Disclosure	ENVPEP2010021EN
Eu Rohs Directive	Compliant
Fire Resistance	960 ?C IEC 60695-2-1
For Use With/Related Pr.	14mm x 51mm
Fuse Size	14 x 51 mm, 0.551" W x .
Fuse Type	, aM \|\| , gG, Cartridge
Fuseholder Type	Holder
Height	110.8 mm
Ip Degree Of Protection	IP20 conforming to IEC .
Manufacturer	SCHNEIDER ELECTRIC
Manufacturer Product Nu.	DF143NC
Manufacturer Standard L.	1 Weeks
Mercury Free	Yes
Mfr	SCHNEIDER ELECTRIC
Mounting	for DIN rail mounting
Mounting Position	vertical +/- 23?)
Mounting Support	35 mm symmetrical DIN r.
Mounting Type	DIN Rail
Net Weight	0.570 kg
Number of Circuits	3
Number of poles	3+N
Orientation	Vertical
Package	Box
Poles Description	3P + N
Product Certifications	IEC \|\| UL Recognized \|\|.
Product Compatibility	DF3EA fuse cartridge st.
Product Name	TeSys DF
Product Or Component Ty.	fuse carrier
Product Status	Active
Protective Treatment	TH
Quantity Per Set	set of 1
Range	TeSys
Reach Free Of Svhc	Yes
Reach Regulation	Free of Substances of V.
Rohs Exemption Informat.	Yes
Series	-
Short-Circuit Withstand	120 kA 400 V IEC 60947-.
Standards	EN/IEC 60947-3 \|\| EN/IE.
Sustainable Offer Status	Green Premium product
Termination Style	Screw Terminal
Tightening Torque	3.5 N.m
Toxic Heavy Metal Free	Yes
Type of fuse accessories	fuse base
Voltage	690V
Warranty	18 months
Weee	The product must be dis.
Width	105 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
RS Delivers	482-875	59.508	1	9		Schneider Electric		59.508 @ 1
kempstoncontrols.co.uk	DF143NC	63.4096125	1	In Stock		Schneider		63.4096125 @ 1
TME	DF143NC	85.53	1	1		SCHNEIDER ELECTRIC		85.53 @ 1
standardelectricsupply.com	2371046	103.86	1	In Stock		Square D (Schneider Electric)		103.86 @ 1
Newark	67AH8837	105.07	1	In Stock		SQUARE D BY SCHNEIDER ELECTRIC		105.07 @ 1
Radwell	DF143NC	106.83	1	In Stock		SCHNEIDER ELECTRIC		106.83 @ 1
gordonelectricsupply.com	DF143NC	108.59	1	In Stock	10	SQUARE D		108.59 @ 1
mayerelectric.com	SQDDF143NC	113.39	1	In Stock		SCHNEIDER ELECTRIC	1.254	113.39 @ 1
Digi-Key	16718335	143.5	1	In Stock		Schneider Electric		143.5 @ 1
