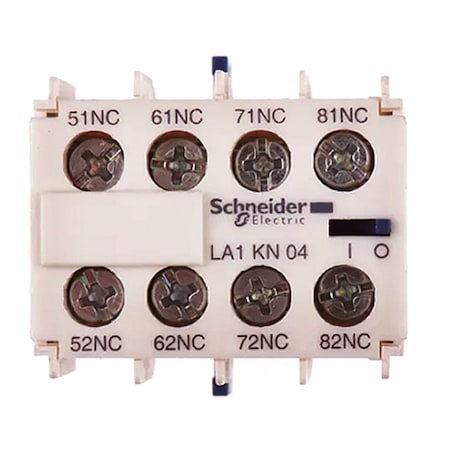

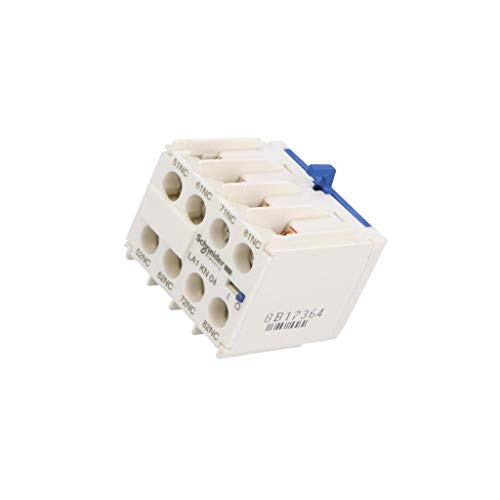

Schneider Electric LA1KN04

B00DLT1EXO

SCHNEIDER ELECTRIC

SCHNEIDER ELECTRICzoom

Attributes

Key Value
[Ith] Conventional Free.10 A 50 ?C
[Ue] Rated Operational .690 V AC 25...400 Hz
[Ui] Rated Insulation V.690 V IEC 60947-5-1 || .
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
Amps10 A
ApplicationTeSys K LC1K;TeSys K CA.
Auxiliary Contacts Oper.instantaneous
BrandSchneider Electric
Catalog NumberLA1KN04
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileN/A
Componentauxiliary contact block
Connectionscrew clamp terminals 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration4 NC;Instantaneous, 4NC
Contact Current Rating10 A
Contact Form4NC
Contact Rating10 A 50 A Degrees C
Control Voltage600
Country of OriginID - Indonesia, Indones.
Depth35 mm
Device Short NameLA1
ECCNEAR99
Environmental Character.normal environment
Environmental DisclosureENVPEP2106022
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Family SeriesSquare D Miscellaneous
FeaturesMercury Free, Toxic Hea.
For Use WithTeSys K LC1K, TeSys K C.
Gross Weight0 lbs
Height30 mm
Insulation Resistance> 10 MOhm
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemContactor+Relay Aux Con.
Item NumberLA1KN04
Item Typeauxiliary contact block
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number583225
Mercury FreeYes
Minimum Switching Curre.5 mA
Minimum Switching Volta.17 V
MountingFront, Clip
Mounting LocationFront
Mounting StyleFront Mount
Net Weight0 lbs, 0.045 kg
Non Overlap Distance0.5 mm
Number of Contacts4
Number of NC Aux. Conta.4
Operating Altitude6561.68 ft (2000 m)
Operating Temperature-25-50 A Degrees C
Package Quantity1
Permissible Short-Time .80 A 1 s || 60 A 500 ms.
Pole Contact Composition4 NC
Product CertificationsCB Scheme || CCC || UL .
Product NameTeSys K
Product Or Component Ty.auxiliary contact block
Product TypeContactor+Relay Aux Con.
Protective TreatmentTC IEC 60068
RangeTeSys
Range CompatibilityTeSys K LC1K || TeSys K.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesTeSys Micra Series, TeS.
Size1.38
Special Featuresnormal environment
StandardIECEE CB Scheme;UL;CSA;.
StandardsEN/IEC 60947-5-1 || UL .
Starter Actionsinstantaneous
Starter Amperage10 Amp
Starter Auxiliary Conta.4 NC
Starter ModelLA1
Sub BrandTeSys K
Sub ComponentTeSys K Auxiliary Conta.
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Terminal
Tightening Torque1.3 N.m Philips No 2 ||.
Toxic Heavy Metal FreeYes
UNSPSC39121529
UPC785901898672
UPC Code785901898672
Voltage690V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width38 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELA1KN0412.53190SCHNEIDER ELECTRIC12.53 @ 1
thumbzoomGalcoLA1KN04-SQD16.781In StockSquare D16.78 @ 1
steinerelectric.com3512418.341In StockSquare D?18.34 @ 1
thumbzoomZoroG315644118.891In StockSchneider Electric0.0918.89 @ 1
thumbzoommayerelectric.comSQDLA1KN0419.111In StockSCHNEIDER ELECTRIC0.09919.11 @ 1
thumbzoomNewark15B958619.471In StockSCHNEIDER ELECTRIC19.47 @ 1
thumbzoomsustainablesupply.comC303923419.971In StockSchneider Electric0.0919.97 @ 1
RS Delivers279-631520.076149Schneider Electric20.076 @ 1
thumbzoomkempstoncontrols.co.ukLA1KN0420.2240351In StockSchneider20.224035 @ 1
rspsupply.comSCHNEIDER LA1KN0420.361In StockSchneider Electric20.36 @ 1
us.rs-online.com7037919521.3716Schneider Electric21.37 @ 1
thumbzoomcrescentelectric.com3754623.321In StockSchneider Electric23.32 @ 1
Graybar9607427623.59841In StockSquare D (Schneider Electric)23.5984 @ 1
thumbzoomblackhawksupply.comLA1KN0424.751In StockSquare D24.75 @ 1
thumbzoomNational Supply Network6952708330.431In StockSchneider Electric30.43 @ 1
industrialrefrigerationparts.comLA1KN04484.341In StockSchneider Electric484.34 @ 1
