Schneider Electric LC1D093BD

Schneider Electric LC1D093BD

mpn:
LC1D093BD
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
LC1D093BD
Description:

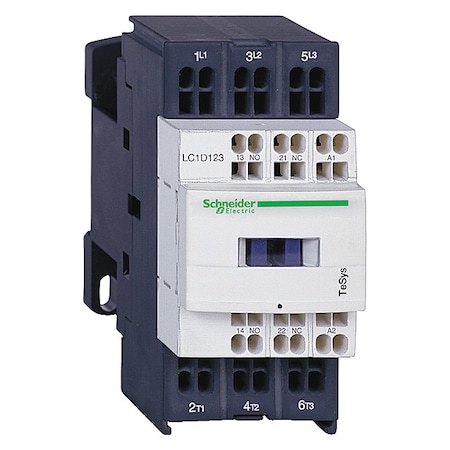

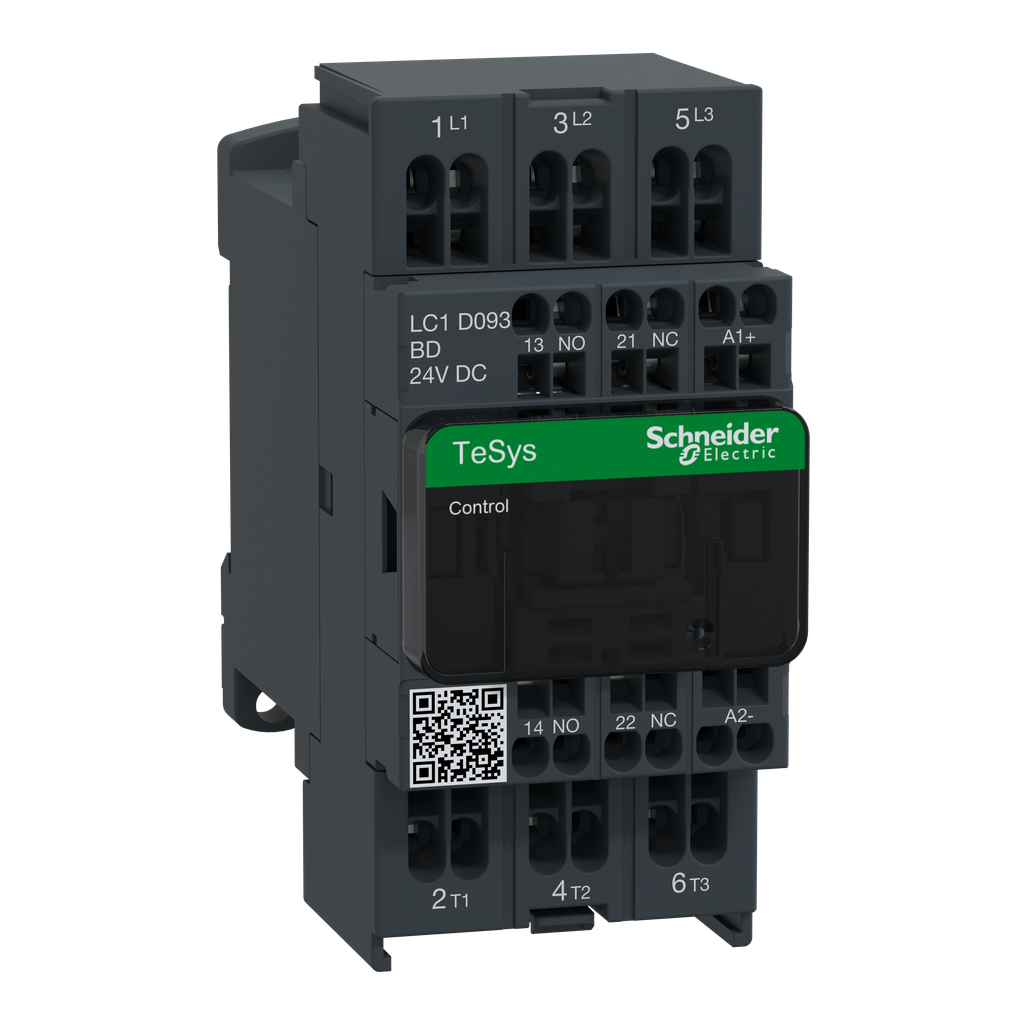

Non-Reversing Contactor, 24VDC, 9A, 3P, DIN Rail, TeSys Deca Series
Weight:
0.23
Weight:
0.23 LB
Preferred Price:
145.79
Price:
145.79
Min Simple Price:
79.67
Absolute Min Price:
113.13
Min Price:
113.13
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NTcwNA:::LC1D093BD
sku:
NTcwNA::A8:LC1D093BD@y0
condition:
11
seller:
TME
amzMan:
schneider electric
HazMat:
False
DropShip:
False

Attributes

Key ^Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time Withstand Current105 A 40 ?C - 10 s power circuit || 210 A 40 ?C - 1 s power circuit || 30 A 40 ?C - 10 min power circuit || 61 A 40 ?C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 16 A 60 ?C power circuit
[Uc] Control Circuit Voltage, Coil Voltage, Coil Volts24 V DC
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
ApplicationMotor Control, Resistive Load, Resistive load;motor control
ApprovalsCSA, IEC, UL
Aux. Contact Configuration1NO/1NC
Auxiliary Contact Composition1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Average Impedance2.5 mOhm - Ith 16 A 50 Hz power circuit
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog Number, Item NumberLC1D093BD
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
Coil Power Rating5.4-5.4 W 20 A Degrees C
Coil Technology, Special Featuresbuilt-in bidirectional peak limiting diode suppressor
Coil Voltage, Nominal Coil Voltage24 Vdc
Compatibility Code, Device Short Name, SeriesLC1D
ConnectionPower circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;power circuit spring terminals 2 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 2 2.5-2.5 mm? flexible without cable end
Connections - Terminalspower circuit spring terminals 1 2.5-2.5 mm? flexible without cable end || power circuit spring terminals 2 2.5-2.5 mm? flexible without cable end || control circuit spring terminals 1 2.5-2.5 mm? flexible without cable end || control circuit spring terminals 2 2.5-2.5 mm? flexible without cable end
Contact CompatibilityM4
Contact Configuration1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Contact Current Rating, Full Load Amps-Inductive, UL Motor Switching (AC3)9 A
Contact Operation, Poles3NO
Contact Rating10 A 60 A Degrees C SIGNALLING CIRCUIT-16 A 60 A Degrees C POWER CIRCUIT
Contactor Applicationresistive load || motor control
Contactor TypeNon-Reversing
Control Circuit TypeDC standard
Control Circuit Voltage Limits0.1...0.25 Uc -40-70 ?C drop-out DC || 0.7...1.25 Uc -40-60 ?C operational DC || 1...1.25 Uc 60-70 ?C operational DC
Control Voltage24 V
Country of OriginID - Indonesia, Indonesia
Depth95 mm
ECCNEAR99
Environmental AttributesMercury Free, PVC Free, Pollution Degree 3
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, TeSys Series
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Resistive, General Purpose (AC1)20 A
Fuse Amps10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit)
Gross Weight1.21 lbs
Height99 mm
Hold-In Power Consumption In W5.4-5.4 W 20 ?C
HP @ 1 Phase - 240V, Max HP 230/240V 1PH, Single-Phase HP Rating (Max.)1 hp
HP @ 3 Phase - 208V, HP @ 3 Phase - 240V, Max HP 200/208V 3PH, Max HP 230/240V 3PH2 hp
HP @ 3 Phase - 480V, Max HP 460/480V 3PH5 hp
HP @ 3 Phase - 575V7 1/2 hp
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling circuit
Ip Degree Of ProtectionIP20 front face IEC 60529
Irms Rated Making Capacity250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
ItemIEC Magnetic Contactor
Item Type, Product Or Component Typecontactor
Made in USANo
ManufacturerSquare D
Manufacturer Part Number536578
Max HP 575/600V 3PH7.5 hp
Max. Inductive Amps (AC3)9A
Max. Resistive Amps (AC1)20A
Maximum Horse Power Rating1 hp 230/240 V at AC 50/60 Hz for 1 phase || 2 hp 200/208 V at AC 50/60 Hz for 3 phase || 2 hp 230/240 V at AC 50/60 Hz for 3 phase || 5 hp 460/480 V at AC 50/60 Hz for 3 phase || 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase || 0.33 hp 115 V at AC 50/60 Hz for 1 phase
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
Mercury Free, Pvc Free, Rohs Exemption InformationYes
Minimum Switching Current5 mA signalling circuit
Minimum Switching Voltage17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 50/60 Hz AC-3) || 4 kW 380...400 V AC 50/60 Hz AC-3) || 4 kW 415 V AC 50/60 Hz AC-3) || 4 kW 440 V AC 50/60 Hz AC-3) || 5.5 kW 500 V AC 50/60 Hz AC-3) || 5.5 kW 660...690 V AC 50/60 Hz AC-3) || 2.2 kW 220...230 V AC 50/60 Hz AC-3e) || 4 kW 380...400 V AC 50/60 Hz AC-3e) || 4 kW 415 V AC 50/60 Hz AC-3e) || 4 kW 440 V AC 50/60 Hz AC-3e) || 5.5 kW 500 V AC 50/60 Hz AC-3e) || 5.5 kW 660...690 V AC 50/60 Hz AC-3e) || 2.2 kW 400 V AC 50/60 Hz AC-4)
MountingRail Plate
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount
Net Weight0.48 kg, 1.13 lbs
Non-Overlap Time1.5 ms, 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Number of Poles, Pollution Degree3
Operating Altitude0...9842.52 ft (0...3000 m)
Operating Cycles, Signalling Circuit Frequency25...400 Hz
Operating Temperature-40-70 A Degrees C AT UC,-5-60 A Degrees C
Operating Time53.55...72.45 ms closing || 16...24 ms opening
Overvoltage CategoryCAT III, III
Permissible Ambient Air Temperature Around The Device-40-60 ?C || 60-70 ?C with derating
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per Pole1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
Product CertificationsCCC || GL || BV || LROS (Lloyds register of shipping) || CSA || RINA || DNV || UL || GOST || UKCA
Product SeriesTeSys
Protective Coverwith
Protective TreatmentTHIEC 60068-2-30
Range Of ProductTeSys Deca
Rated Breaking Capacity250 A 440 V power circuit IEC 60947
Rated Voltage690V AC, 300V DC
Reach RegulationReference contains Substances of Very High Concern above the threshold
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
SeriesTeSys D, TeSys Deca Series
Size45 MM,80 MM,95 MM
StandardCCC;GL;BV;LROS (Lloyds register of shipping);CSA;RINA;DNV;UL;GOST;UKCA;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CCC, GL, BV, LROS, CSA, RINA, DNV, UL, GOST, UKCA, THIEC 60068-2-30, CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
TerminationScrew
Time Constant28 ms
TypeIEC Contactor
UNSPSC39121529
UPC, UPC Code785901197614
Utilisation CategoryAC-1 || AC-4 || AC-3 || AC-3e
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Wattage1.56 W AC-1-0.2 W AC-3
Width45 mm
Working HeightUp to 9842.52 ft
