Description:

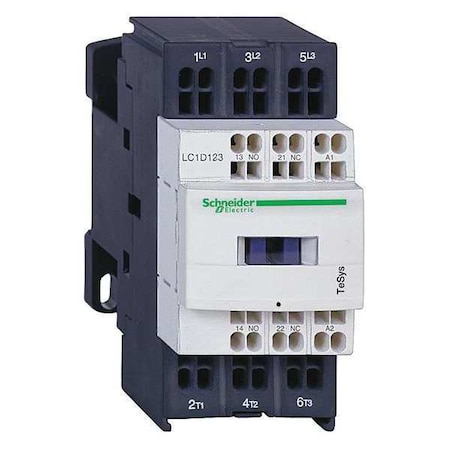

IEC Magnetic Contactor, Full Load Amps-Inductive 9 A, Coil Volts 24 V DC
Attributes
| Key ^ | Value |
|---|---|
| Aux. Contact Configuration | 1NO/1NC |
| Coil Volts | 24 V DC |
| Depth | 95 mm |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Full Load Amps-Inductive | 9 A |
| Full Load Amps-Resistive | 20 A |
| Fuse Amps | 10 A (Signalling Circuit), 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit) |
| Height | 99 mm |
| HP @ 1 Phase - 240V | 1 hp |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V | 2 hp |
| HP @ 3 Phase - 480V | 5 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| Includes Protective Cover | Yes |
| IP Rating | IP20 |
| Item | IEC Magnetic Contactor |
| Non-Overlap Time | 1.5 ms |
| Number of Poles | 3 |
| Rated Breaking Capacity | 250 A @ 440V |
| Rated Insulation Volts | 600/690V |
| Series | LC1D |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, UL, GOST, CSA, CCC, GL, BV, LROS, DNV, RINA, UKCA, THIEC 60068-2-30 |
| Width | 45 mm |
| Working Height | Up to 9842.52 ft |
