mpn:
brand:
manufacturer:
MPN:
Weight:
0.051875
Weight:
0.83 LB
Preferred Price:
167.93
Price:
167.93
Min Simple Price:
91.77
Absolute Min Price:
130.31
Min Price:
130.31
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
DY0NDY:::LC1D093G7
sku:
DY0NDY::SU:LC1D093G7@y0
condition:
11
seller:
hvacdiscountstore.com
amzMan:
square d/telemecanique
HazMat:
False
DropShip:
False

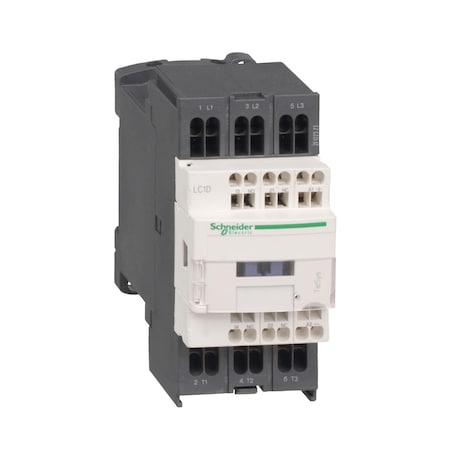

Attributes
| Key ^ | Value |
|---|---|
| 3-Phase HP Rating (Max.) | 7.5hp |
| Application | Motor Control, Resistive Load, Motor control;resistive load |
| Approvals | CCC, CSA, UL |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts | 1NO, 1NC |
| Brand, Manufacturer | Schneider Electric |
| Catalog Number, Item Number | LC1D093G7 |
| Coil Power Rating | 7.5-7.5 VA 60 HZ 0.3 20 A Degrees C)-7-7 VA 50 HZ 0.3 20 A Degrees C) |
| Coil Voltage | 120 V AC 50/60 Hz, 120 VAC |
| Coil Volts | 120 V AC |
| Connection | Power circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;power circuit spring terminals 2 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 1 2.5-2.5 mm? flexible without cable end;control circuit spring terminals 2 2.5-2.5 mm? flexible without cable end |
| Contact Configuration | 3 NO, 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Contact Current Rating, Full Load Amps-Inductive, General Purpose (AC1) | 9 A |
| Contact Operation | Resistive Load |
| Contact Rating | 10 A 60 A Degrees C SIGNALLING CIRCUIT-16 A 60 A Degrees C POWER CIRCUIT |
| Control Circuit Voltage Limits | Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70?C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60?C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60?C 60 Hz), 1 to 1.1 Uc (at 60 to 70?C 50/60 Hz) |
| Control Voltage | 120 V |
| Country of Origin | ID - Indonesia, Indonesia |
| Depth | 86 mm |
| ECCN | EAR99 |
| Family Series | Square D Contactors, TeSys Series |
| Features, Special Features | Without Built-In Suppressor Module |
| Full Load Amps-Resistive | 20 A |
| Gross Weight | 0 lbs |
| Height | 80 mm |
| HP @ 1 Phase - 240V, Max HP 230/240V 1PH | 1 hp |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V, Max HP 200/208V 3PH, Max HP 230/240V 3PH | 2 hp |
| HP @ 3 Phase - 480V, Max HP 460/480V 3PH | 5 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| IP Rating | IP20 |
| Item | IEC Magnetic Contactor |
| Item Type | Contactor |
| Made in USA | No |
| Manufacturer | Square D |
| Manufacturer Part Number | 533099 |
| Max HP 115V 1PH | 0.33 hp |
| Max HP 575/600V 3PH | 7.5 hp |
| Max. Inductive Amps (AC3) | 9A |
| Max. Resistive Amps (AC1) | 25A |
| Mounting | Rail Plate |
| Mounting Type | Panel Mount |
| Net Weight | 0.71 lbs |
| Non-Overlap Time | 1.5 ms |
| Number of Poles | 3 |
| Operating Cycles | 25...400 Hz |
| Operating Temperature | -40-70 A Degrees C AT UC,-5-60 A Degrees C |
| Overvoltage Category | CAT III |
| Poles | 3NO |
| Product Series | TeSys |
| Series | TeSys D, LC1D, TeSys Deca Series |
| Size | 45 MM,80 MM,86 MM |
| Standard | GOST;DNV;UL;GL;BV;CCC;CSA;LROS (Lloyds register of shipping);RINA;UKCA;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1 |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GOST, DNV, UL, GL, BV, CCC, CSA, LROS, RINA, UKCA, THIEC 60068-2-30 |
| Sub Brand | TeSys D;TeSys Deca |
| Termination | Spring Cage |
| Type | IEC Contactor |
| UL Motor Switching (AC3) | 25 A |
| UNSPSC | 39121529 |
| UPC | 785901197249 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 1.56 W AC-1-0.2 W AC-3 |
| Width | 45 mm |
| Working Height | Up to 9842.52 ft |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| hvacdiscountstore.com | SCH--LC1D093G7 | 91.77 | 91.77 | 1 | In Stock | SCHNEIDER ELECTRIC (SQUARE D) | 91.77 @ Qty: 1+ | |||
 | cappusa.com | 1649178 | 96.53 | 96.53 | 1 | In Stock | Schneider Electric | 96.53 @ Qty: 1+ | ||
 | gordonelectricsupply.com | LC1D093G7 | 97.09 | 97.09 | 1 | In Stock | 10 | SQUARE D | 97.09 @ Qty: 1+ | |
 | mostelectric.com | LC1D093G7 | 98.93 | 98.93 | 1 | In Stock | SQUARE D/TELEMECANIQUE | 98.93 @ Qty: 1+ | ||
| us.rs-online.com | 71414333 | 106.83 | 106.83 | 1 | 2 | Schneider Electric | 106.83 @ Qty: 1+ | |||
 | blackhawksupply.com | LC1D093G7 | 107.88 | 107.88 | 1 | In Stock | Square D | 107.88 @ Qty: 1+ | ||
 | Galco | LC1D093G7-SQD | 111.38 | 111.38 | 1 | In Stock | Square D | 0.71 | 111.38 @ Qty: 1+ | |
 | Zoro | G0850459 | 111.99 | 111.99 | 1 | In Stock | Schneider Electric | 0.83 | 111.99 @ Qty: 1+ | |
| Newark | 79C9484 | 121.83 | 121.83 | 1 | In Stock | SCHNEIDER ELECTRIC | 121.83 @ Qty: 1+ | |||
 | sustainablesupply.com | C3039945 | 124.04 | 124.04 | 1 | In Stock | Schneider Electric | 0.83 | 124.04 @ Qty: 1+ | |
| Graybar | 22004891 | 126.336 | 126.336 | 1 | In Stock | Square D (Schneider Electric) | 126.336 @ Qty: 1+ | |||
 | Voomi Supply | LC1D093G7 | 133.37 | 133.37 | 1 | In Stock | SCHNEIDER ELECTRIC | 133.37 @ Qty: 1+ | ||
 | midwestapplianceparts.com | LC1D093G7-SQ-P | 137.61 | 137.61 | 1 | In Stock | Squared | 137.61 @ Qty: 1+ | ||
| ptacsolutions.com | LC1D093G7 | 152.42 | 152.42 | 1 | 1 | Schneider Electric (Square D) | 152.42 @ Qty: 1+ | |||
 | crescentelectric.com | 369620 | 168.22 | 168.22 | 1 | In Stock | Schneider Electric | 168.22 @ Qty: 1+ | ||
| industrialrefrigerationparts.com | LC1D093G7 | 1000.97 | 1000.97 | 1 | In Stock | Schneider Electric | 1000.97 @ Qty: 1+ |
