Schneider Electric LC1D096BD

B00CONO8UO

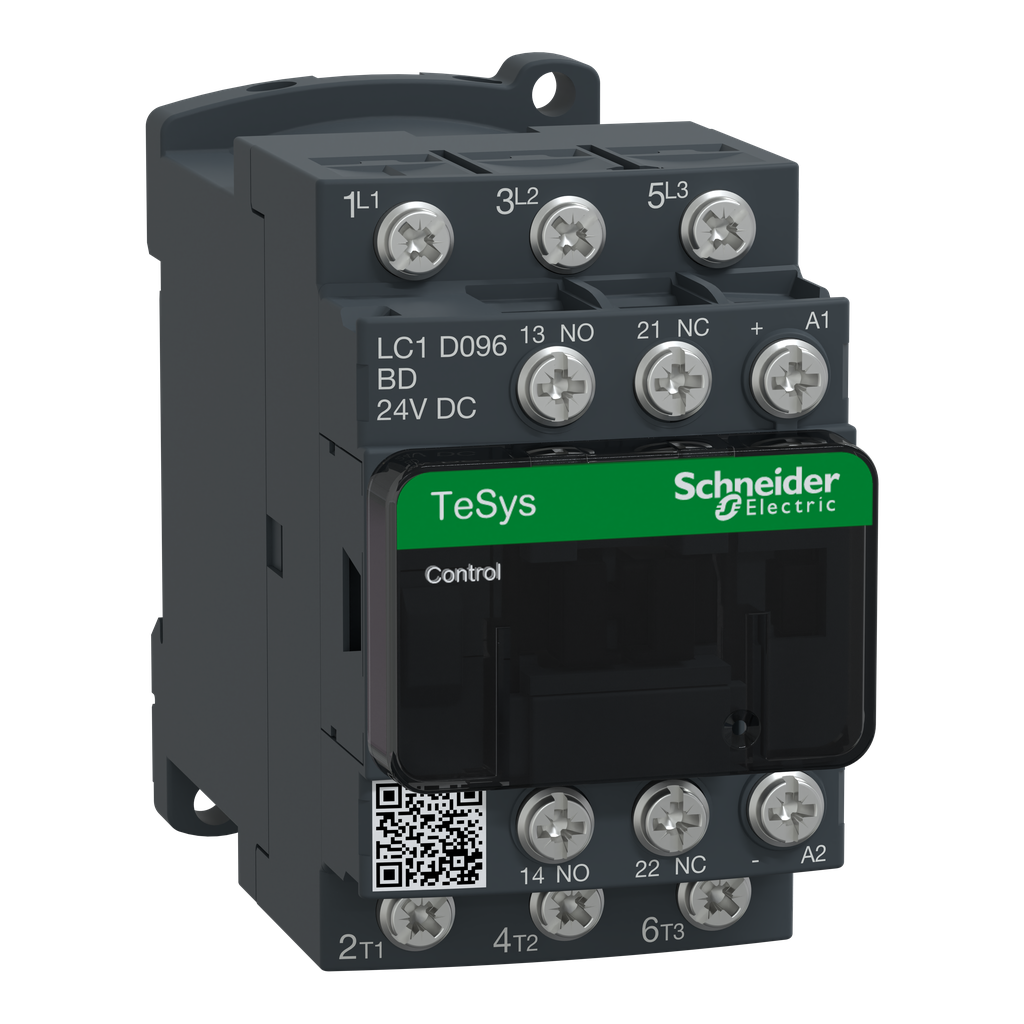

SCHNEIDER ELECTRIC Contactor 600-Vac 9-Amp Iec Plus Options LC1D096BD Interface Relay-Electromechanical

SCHNEIDER ELECTRIC Contactor 600-Vac 9-Amp Iec Plus Options LC1D096BD Interface Relay-Electromechanicalzoom

Attributes

Key Value
3-Phase HP Rating (Max.)7-1/2 hp
[Icw] Rated Short-Time .105 A 40 ?C - 10 s powe.
[Ith] Conventional Free.25 A 60 ?C power circui.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ApplicationMotor control;resistive.
ApprovalsCSA, IEC, UL
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts1NO, 1NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSCHNEIDER ELECTRIC
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D096BD
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 exposure to da.
Coil Power Rating5.4-5.4 W 20 A Degrees C
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 Vdc
Compatibility CodeLC1D
ConnectionControl circuit lugs-ri.
Connections - Terminalscontrol circuit lugs-ri.
Contact CompatibilityM4
Contact Configuration3 NO, 1 NO + 1 NC;3 NO;.
Contact Current Rating9 A
Contact Operation3NO
Contact Rating25 A 60 A Degrees C POW.
Contactor Applicationmotor control || resist.
Contactor seriesTeSys D
Contactor TypeNon-Reversing
Contacts configurationNO x3
Control Circuit TypeDC standard
Control Circuit Voltage.0.1...0.25 Uc -40-70 ?C.
Control voltage24V DC
Control Voltage24 V
Country of OriginID - Indonesia, Indones.
Depth95 mm
Device Short NameLC1D
ECCNEAR99
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
General Purpose (AC1)20 A
Gross Weight1.185 lbs
GTIN03389110805932, 0078590.
Height77mm, 77 mm
Hold-In Power Consumpti.5.4-5.4 W 20 ?C
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Integrated auxiliary co.NC + NO
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
Item NumberLC1D096BD
Item Typecontactor
Leadsscrew terminals
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part Number589193
Max HP 200/208V 3PH2 hp
Max HP 230/240V 1PH1 hp
Max HP 230/240V 3PH2 hp
Max HP 460/480V 3PH5 hp
Max HP 575/600V 3PH7.5 hp
Max. Inductive Amps (AC.9A
Max. operating current9A
Max. Resistive Amps (AC.20A
Maximum Horse Power Rat.1 hp 230/240 V at AC 50.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
Mountingfor DIN rail mounting,,.
Mounting Supportplate || rail
Mounting TypePanel Mount
Net Weight0.48 kg, 1.115 lbs
Nominal Coil Voltage24 Vdc
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 Hz
Operating Temperature-40-70 A Degrees C AT U.
Operating Time53.55...72.45 ms closin.
Overvoltage CategoryIII
Permissible Ambient Air.-40-60 ?C || 60-70 ?C w.
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.56 W AC-1 || 0.2 W AC.
Product CertificationsCCC || RINA || BV || CS.
Product Or Component Ty.contactor
Product SeriesTeSys
Protective Coverwith
Protective TreatmentTHIEC 60068-2-30
Pvc FreeYes
Range Of ProductTeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .1 hp
Size45 MM,77 MM,95 MM
Special Featuresbuilt-in bidirectional .
StandardCCC;RINA;BV;CSA;DNV;LRO.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Switching capacity4kW
TerminationScrew
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant28 ms
Type of contactor3-pole
UL Motor Switching (AC3)9 A
UNSPSC39121529
UPC785901805939
Utilisation CategoryAC-3 || AC-4 || AC-1 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.56 W AC-1-0.2 W AC-3
Width45mm, 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELC1D096BD84.7312SCHNEIDER ELECTRIC84.73 @ 1
Newark89H500491.44256In StockSCHNEIDER ELECTRIC91.44 @ 256
RS Delivers188-4712112.704118Schneider Electric112.704 @ 1
thumbzoomkempstoncontrols.co.ukLC1D096BD113.5451071In StockSchneider113.545107 @ 1
standardelectricsupply.com2261132119.171In StockSchneider Electric119.17 @ 1
us.rs-online.com71414342120.1613Schneider Electric120.16 @ 1
thumbzoomblackhawksupply.comLC1D096BD132.181In StockSquare D132.18 @ 1
thumbzoommayerelectric.comSQDLC1D096BD133.421In StockSCHNEIDER ELECTRIC1.056133.42 @ 1
Graybar22087982140.91841In StockSquare D (Schneider Electric)140.9184 @ 1
thumbzoomcrescentelectric.com540526143.891In StockSchneider Electric143.89 @ 1
thumbzoomGalcoLC1D096BD-SQD151.071In StockSquare D1.185151.07 @ 1
industrialrefrigerationparts.comLC1D096BD512.221In StockSchneider Electric512.22 @ 1
