Schneider LC1D096BL

B00JF2O0YG

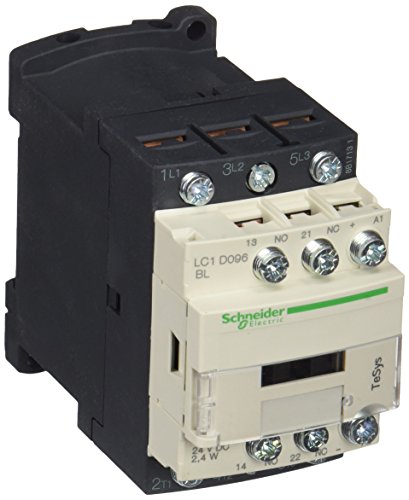

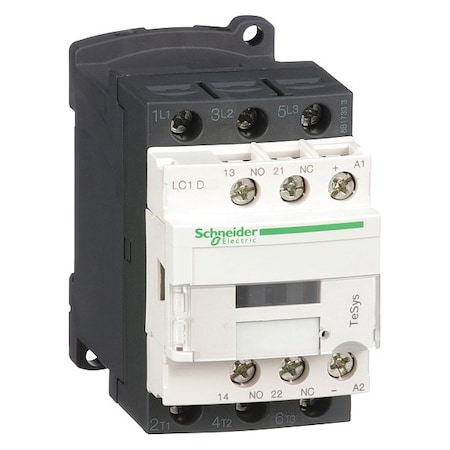

SCHNEIDER LC1D096BL 24V-DC 5HP AC CONTACTOR

SCHNEIDER LC1D096BL 24V-DC 5HP AC CONTACTORzoom

Attributes

Key Value
ApplicationResistive load;motor co.
ApprovalsCCC, CSA, UL
Auxiliary Contacts1NO, 1NC
BrandSchneider Electric
Catalog NumberLC1D096BL
Coil Power Rating2.4-2.4 W 20 A Degrees C
Coil Voltage24 V DC, 24 VDC
Coil Volts24 V DC
ConnectionControl circuit lugs-ri.
Contact Configuration3 NO, 1 NO + 1 NC;3 NO;.
Contact Current Rating9 A
Contact Rating25 A 60 A Degrees C POW.
Control Voltage24 V
Country of OriginID - Indonesia, Indones.
Country of Origin (subj.Multiple
ECCNEAR99
Family SeriesSquare D Contactors, Te.
Full Load Amps-Inductive9 A
General Purpose (AC1)9 A
Gross Weight1.19 lbs
GTIN03389110808551
ItemIEC Magnetic Contactor
Item NumberLC1D096BL
Item TypeContactor
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number606236
Max HP 115V 1PH0.33 hp
Max HP 200/208V 3PH2 hp
Max HP 230/240V 1PH1 hp
Max HP 230/240V 3PH2 hp
Max HP 460/480V 3PH5 hp
Max HP 575/600V 3PH7.5 hp
MountingRail;plate
Mounting TypePanel Mount
Net Weight1.06 lbs
Nominal Coil Voltage24 VDC
Number of Poles3
Operating Cycles25...400 Hz
Operating Temperature-40-70 A Degrees C AT U.
Poles3NO
Product SeriesTeSys
SeriesTeSys D, TeSys Deca Ser.
Size45 MM,77 MM,95 MM
Special FeaturesBuilt-in bidirectional .
StandardBV;GL;UL;GOST;RINA;CCC;.
Sub BrandTeSys D;TeSys Deca
TerminationScrew
TypeIEC Contactor
UL Motor Switching (AC3)25 A
UNSPSC39121529
UPC785901642497
Warranty DescriptionContractual Warranty:18.
Wattage1.56 W AC-1-0.2 W AC-3

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELC1D096BL46.661In StockSCHNEIDER ELECTRIC46.66 @ 1
AmazonTPB00CONN6YI108.211In Stock2SCHNEIDER ELECTRIC108.21 @ 1
thumbzoomblackhawksupply.comLC1D096BL133.861In StockSquare D133.86 @ 1
us.rs-online.com71414345139.071387Schneider Electric139.07 @ 1
thumbzoomGalcoLC1D096BL-SQD140.9611Square D1.19140.96 @ 1
thumbzoomsustainablesupply.comC3040000142.181In StockSchneider Electric1.22142.18 @ 1
thumbzoomZoroG0569506152.131In Stock42Schneider Electric1.22152.13 @ 1
Graybar25043255159.9361In StockSquare D (Schneider Electric)159.936 @ 1
thumbzoomNewark20K1128163.45117SCHNEIDER ELECTRIC163.45 @ 1
thumbzoommostelectric.comLC1D096BL169.5914SQUARE D/TELEMECANIQUE169.59 @ 1
thumbzoomNational Supply Network69530814178.421In StockSchneider Electric178.42 @ 1
thumbzoomcrescentelectric.com193660212.95110Schneider Electric212.95 @ 1
