Schneider Electric LC1D326BD

B00CONH25C

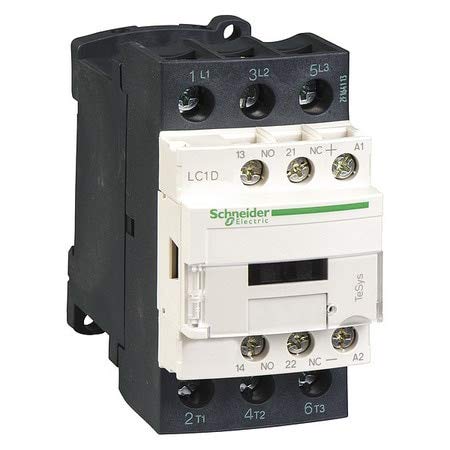

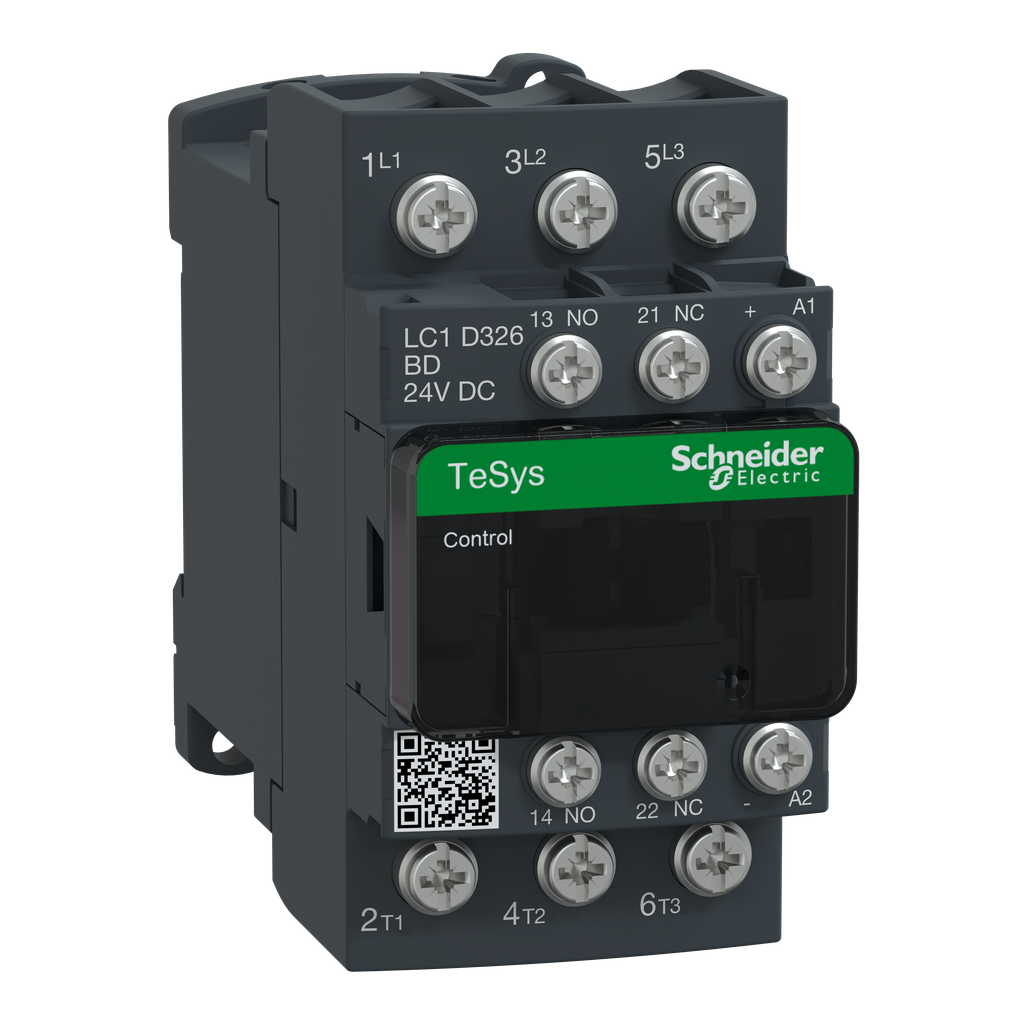

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326BD Busway End Tap Box

SCHNEIDER ELECTRIC Contactor 600-Vac 32-Amp Iec Plus Options LC1D326BD Busway End Tap Boxzoom

Attributes

Key Value
3-Phase HP Rating (Max.)25 hp
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 50 A 50 Hz.
BrandSCHNEIDER ELECTRIC
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D326BD
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1102029EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating5.4-5.4 W 20 A Degrees .
Coil Technologybuilt-in bidirectional .
Coil Voltage24 V DC, 24 Vdc, 24, 24.
Coil Volts24 V DC
Compatibility CodeLC1D
ConnectionControl circuit lugs-ri.
Connection typeRing Tongue
Contact CompatibilityM4
Contact Configuration3NO, 3 NO, 1 NO + 1 NC;.
Contact Current Rating32 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationresistive load || motor.
Contactor seriesTeSys D
Contactor TypeNon-Reversing
Contacts configurationNO x3
Control Circuit TypeDC standard
Control Circuit Voltage.0.1...0.25 Uc -40-70 ?C.
Control voltage24V DC
Control Voltage24 V
Country of OriginFR - France, France
Country of Origin (subj.France
Depth101 mm
Device Short NameLC1D
Dimensions1.77 in W x 3.98 in D x.
ECCNEAR99
Enclosure TypeOpen
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Frequency Rating50/60, 50/60 Hz
Full Load Amps-Inductive32 A
GTIN03389110807967
Height85 mm, 85mm
Hold-In Power Consumpti.5.4-5.4 W 20 ?C
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Integrated auxiliary co.NC + NO
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Item Typecontactor
Leadsscrew terminals
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Max. Inductive Amps (AC.32A
Max. operating current32A
Max. Resistive Amps (AC.50A
Maximum Horse Power Rat.2 hp 115 V at AC 50/60 .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw7.5 kW 220...230 V AC 5.
Mountingfor DIN rail mounting,,.
Mounting Supportrail || plate
Mounting typeSurface
Mounting TypePanel Mount
Net Weight0.535 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles30000000, 30000000 Cycl.
Operating Temperature-4 to 140, -4 to 140 de.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per P.2 W AC-3 || 5 W AC-1 ||.
Product CertificationsRINA || GL || UL || DNV.
Product Or Component Ty.contactor
Protective Coverwith
Pvc FreeYes
RangeTeSys || TeSys Deca
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity550 A 440 V power circu.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Single-Phase HP Rating .5 hp
Size101 MM,45 MM,85 MM
Special Featuresbuilt-in bidirectional .
StandardRINA;GL;UL;DNV;BV;CSA;C.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Switching capacity15kW
Terminal TypeLug
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant28 ms
TypeLC1D D-Line, IEC Contac.
Type of contactor3-pole
UNSPSC39121529
UPC785901807964
Utilisation CategoryAC-3 || AC-4 || AC-1 ||.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage5/2, 5/2 W, 2 W AC-3-5 .
Width45mm, 45 mm
