Schneider Electric LC1D80004G7

B00CONJM5K

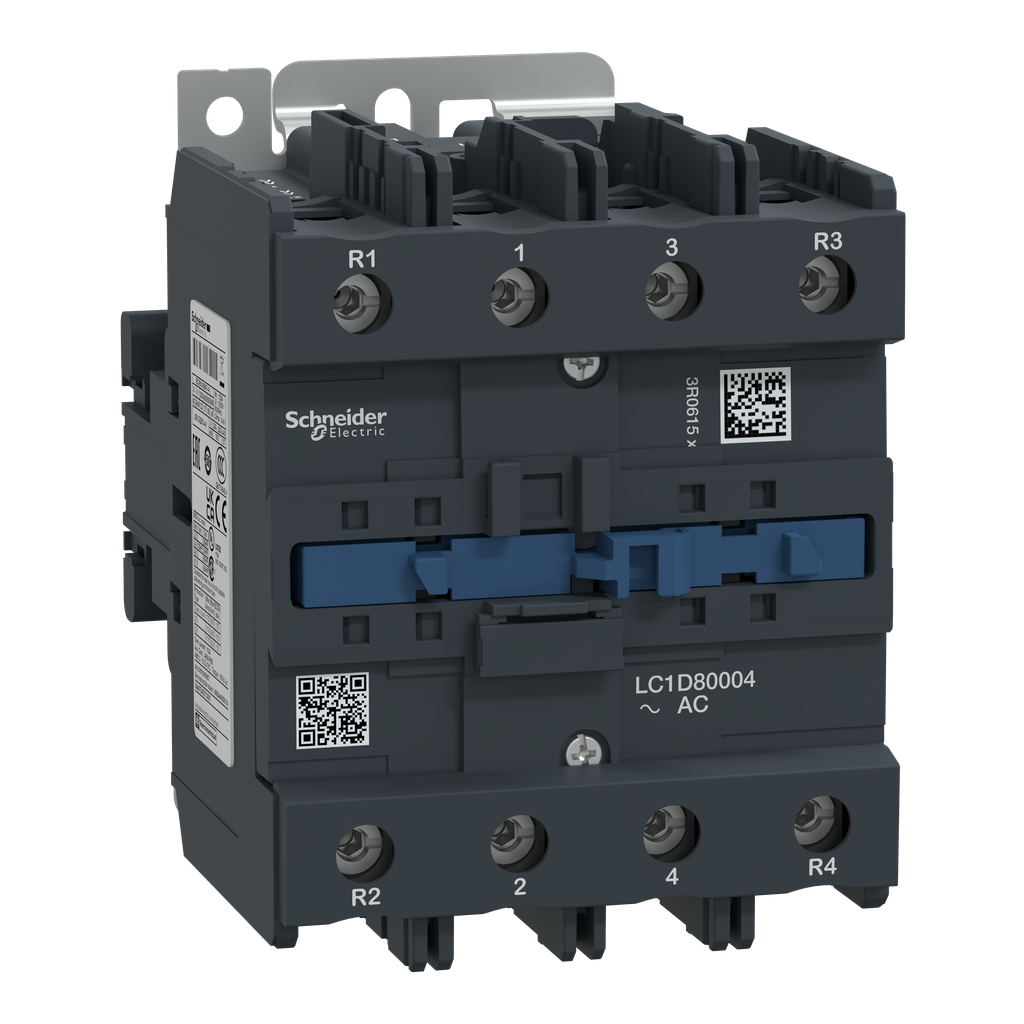

SCHNEIDER ELECTRIC Contactor 575-Vac 80-Amp Iec Plus Options LC1D80004G7 Lever Operating

SCHNEIDER ELECTRIC Contactor 575-Vac 80-Amp Iec Plus Options LC1D80004G7 Lever Operatingzoom

Attributes

Key Value
[Icw] Rated Short-Time .640 A 40 ?C - 10 s powe.
[Ith] Conventional Free.125 A 60 ?C power circu.
[Uc] Control Circuit Vo.120 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 600 V CSA.
[Uimp] Rated Impulse Wi.8 kV IEC 60947
Applicationresistive load
Average Impedance0.8 mOhm - Ith 125 A 50.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC1D80004G7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileN/A
Climatic WithstandIACS E10 exposure to da.
Coil Power Rating26-26 VA 60 HZ 0.3 20 A.
Coil Technologywithout built-in suppre.
Coil Voltage120 V AC 50/60 Hz
Compatibility CodeLC1D
ConnectionControl circuit screw c.
Connections - Terminalscontrol circuit screw c.
Contact CompatibilityM1
Contact Configuration4 NO
Contact Rating125 A 60 A Degrees C PO.
Contactor Applicationresistive load
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.85...1.1 Uc -40-55 ?C.
Country of OriginCzech Republic
Depth125 mm
Device Short NameLC1D
Environmental DisclosureENVPEP110205EN
Eu Rohs DirectiveCompliant
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Heat Dissipation6-10 W 50/60 Hz
Height127 mm
Hold-In Power Consumpti.26-26 VA 60 Hz 0.3 20 ?.
Inrush Power In Va245-245 VA 60 Hz 0.75 2.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.1100 A 440 V power circ.
Item Typecontactor
Made in USANo
ManufacturerSchneider Electric
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability4 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Motor Power Kw22 kW 220...230 V AC 50.
MountingRail Plate
Mounting Supportrail || plate
Net Weight1.76 kg
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles3600 CYC/H 60 A Degrees.
Operating Temperature-40-70 A Degrees C AT U.
Operating Time20...35 ms closing || 6.
Overvoltage CategoryIII
Permissible Ambient Air.-40-60 ?C || 60-70 ?C w.
Pole Contact Composition4 NO
Poles Description4P
Pollution Degree3
Power Dissipation Per P.12.5 W AC-1
Product CertificationsLROS (Lloyds register o.
Product Or Component Ty.contactor
Protective Coverwithout
Protective TreatmentTHIEC 60068-2-30
Pvc FreeYes
RangeTeSys
Range Of ProductTeSys Deca
Rated Breaking Capacity1100 A 440 V power circ.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
Size125 MM,127 MM,96 MM
Special Featureswithout built-in suppre.
StandardLROS (Lloyds register o.
StandardsCSA C22.2 No 14 || EN 6.
Sub BrandTeSys D;TeSys Deca
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.2 N.m.
Toxic Heavy Metal FreeYes
UPC785901756491
Utilisation CategoryAC-1 || AC-3 || AC-3e |.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage12.5 W AC-1
WeeeThe product must be dis.
Width96 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark33M9231451.521In StockSCHNEIDER ELECTRIC451.52 @ 1
thumbzoomgordonelectricsupply.comLC1D80004G7545.01In Stock10SQUARE D545.0 @ 1
thumbzoomRadwellLC1D80004G7580.01In StockSCHNEIDER ELECTRIC SQUARE D580.0 @ 1
thumbzoommayerelectric.comSQDLC1D80004G7590.21In StockSCHNEIDER ELECTRIC3.872590.2 @ 1
thumbzoomAllfusesLC1D80004G7667.7412Square D667.74 @ 1
SuperbreakersLC1D80004G7776.3914Square D776.39 @ 1
thumbzoomcrescentelectric.com393718846.881In StockSchneider Electric846.88 @ 1
