Schneider Electric LC2D09BL

B00CONJPUW

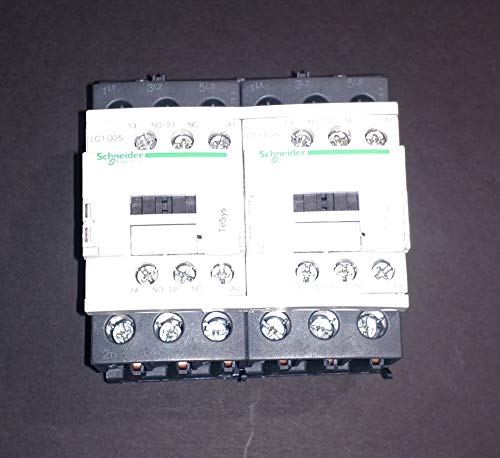

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9-Amp Iec LC2D09BL Soft Start 208-690Vac 250Amp Ats48

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 9-Amp Iec LC2D09BL Soft Start 208-690Vac 250Amp Ats48zoom

Attributes

Key Value
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationResistive load;motor co.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSCHNEIDER ELECTRIC
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D09BL
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating2.4 W, 7-1/2 hp at 575 .
Coil Technologybuilt-in bidirectional .
Coil Voltage24, 24/690 VAC, 300 VDC.
Coil Volts24 V DC
ConnectionPOWER CIRCUIT SCREW CLA.
Connection typeScrew Clamp
Connections - Terminalspower circuit screw cla.
Contact Configuration3NO, 1 NO + 1 NC
Contact Current Rating9 A
Contact Rating10/60 A at 600 VAC, 25/.
Contact typeReversing
Contactor Applicationresistive load || motor.
Contactor seriesTeSys D
Contacts configurationNO x3
Control Circuit TypeDC low consumption
Control Circuit Voltage.0.1...0.3 Uc -40-70 ?C .
Control voltage24V DC
Control Voltage24 V
Country of OriginFR - France, France
Depth95 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
Dimensions77 mm H x 90 mm W x 95 .
ECCNEAR99
Electrical ConnectionScrew Clamp Terminals
Enclosure TypeOpen
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors
Fire RatingUL 94 V1
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating25 to 400, 60 Hz
Full Load Amps-Inductive9 A
Full Load Amps-Resistive25 A
General Purpose (AC1)25 A
Gross Weight0 lbs
Height77mm, 77 mm
Hold-In Power Consumpti.2.4-2.4 W 20 ?C
HP @ 1 Phase - 240V1 hp
HP @ 3 Phase - 208V2 hp
HP @ 3 Phase - 240V2 hp
HP @ 3 Phase - 480V5 hp
HP @ 3 Phase - 575V7 1/2 hp
Inrush Power In W2.4-2.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Integrated auxiliary co.NC + NO
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A 440 V power circu.
ItemIEC Magnetic Contactor
Item NumberLC2D09BL
Item TypeReversing contactor;LC2D
Leadsscrew terminals
Made in USANo
ManufacturerSquare D, SCHNEIDER ELE.
Manufacturer Part NumberLC2D09BL
Max HP 200/208V 3PH2 hp
Max HP 230/240V 3PH2 hp
Max HP 460/480V 3PH5 hp
Max HP 575/600V 3PH7.5 hp
Max. operating current9A
Maximum Horse Power Rat.0.5 hp 115 V at AC 60 H.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Motor Power Kw2.2 kW 220...230 V AC 5.
Mountingfor DIN rail mounting,,.
Mounting Supportrail || plate
Mounting typePlate/Rail, Rail/Surface
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0 lbs, 1.017 kg
Nominal Coil Voltage24 VDC
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time65.45...88.55 ms closin.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.0.2 W AC-3 || 1.56 W AC.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Rated Making Capacity250 A @ 440V (Power Cir.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesLC2D, TeSys? D LC2D, LC.
Signalling Circuit Freq.25...400 Hz
Size77/90/95 mm, 77 MM,90 M.
Special Features0.5 HP 115 V AC 60 HZ 1.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsCSA C22.2 No 14, EN 609.
Sub BrandTeSys D
Sustainable Offer StatusGreen Premium product
Switching Current5 mA (Signalling Circui.
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torquepower circuit 1.7 N.m s.
Time Constant40 ms
Toxic Heavy Metal FreeYes
TypeMechanical, Reversing, .
Type of contactor3-pole reversing
UL Motor Switching (AC3)9 A
UNSPSC39121529
UPC785901549871
UPC Code785901549871
Utilisation CategoryAC-3 || AC-1
Vibration Resistance4 G (Contactor Closed),.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage0.2/1.56 W, 0.2 W AC-3-.
Width90 mm, 90mm
Working HeightUp to 9842.52 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELC2D09BL113.071In StockSCHNEIDER ELECTRIC113.07 @ 1
RS Delivers609-0289200.71216Schneider Electric200.712 @ 1
thumbzoomcappusa.com1678891303.341In StockSchneider Electric303.34 @ 1
industrialrefrigerationparts.comLC2D09BL313.731In StockSchneider Electric313.73 @ 1
thumbzoomblackhawksupply.comLC2D09BL315.561In StockSquare-D315.56 @ 1
thumbzoomGalcoLC2D09BL-SQD348.991In StockSquare D348.99 @ 1
thumbzoomZoroG0568550358.991In StockSchneider Electric2.55358.99 @ 1
thumbzoomstandardelectricsupply.com969338364.721In StockSchneider Electric364.72 @ 1
Newark89H5109373.291In StockSCHNEIDER ELECTRIC373.29 @ 1
us.rs-online.com70379424399.7711Schneider Electric399.77 @ 1
Graybar22088153407.9041In StockSquare D (Schneider Electric)407.904 @ 1
thumbzoommayerelectric.comSQDLC2D09BL408.341In StockSCHNEIDER ELECTRIC2.2374408.34 @ 1
thumbzoomsustainablesupply.comC3039462460.11In StockSchneider Electric2.55460.1 @ 1
thumbzoomNational Supply Network69662971488.031In StockSchneider Electric488.03 @ 1
thumbzoomcrescentelectric.com176486543.141In StockSchneider Electric543.14 @ 1
