mpn:
brand:
manufacturer:
MPN:
Weight:
2.20462262
Weight:
6.31 LB
Preferred Price:
232.36
Price:
232.36
Min Simple Price:
131.28
Absolute Min Price:
186.41
Min Price:
186.41
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
DA5Mjg:::LC2D18F7
sku:
DA5Mjg::FU:LC2D18F7@y0
condition:
11
seller:
TME
amzMan:
schneider electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| 3-Phase HP Rating (Max.), HP @ 3 Phase - 575V | 15 hp |
| Action, Contactor Type | Reversing |
| Application | Motor Control, Resistive Load, Resistive load;motor control |
| Aux. Contact Configuration | 1NO/1NC |
| Brand, Manufacturer | Schneider Electric |

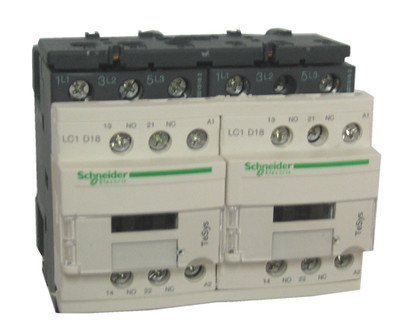

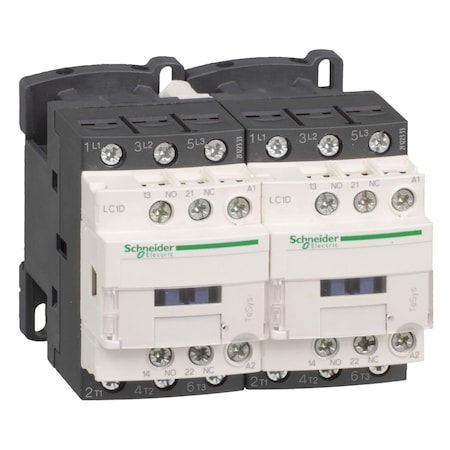

| Catalog Number | LC2D18F7 |
| Coil Power Rating | 7.5-7.5 VA 60 HZ 0.3 20 A Degrees C)-7-7 VA 50 HZ 0.3 20 A Degrees C) |
| Coil Voltage | 110 V AC 50/60 Hz, 110 Vac |
| Coil Volts | 110 V AC |
| Connection | CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1.5-6 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1.5-6 MMA?SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA?SOLID WITHOUT CABLE END |
| Contact Configuration | 1 NO + 1 NC |
| Contact Operation | 3NO |
| Contact Rating | 10 A 60 A Degrees C SIGNALLING CIRCUIT-32 A 60 A Degrees C POWER CIRCUIT |
| Country of Origin | ID - Indonesia, Indonesia |
| Depth | 86 mm |
| ECCN | EAR99 |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Features | Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar |
| Full Load Amps-Inductive | 18 A |
| Full Load Amps-Resistive | 32 A |
| Height | 77 mm |
| HP @ 1 Phase - 240V, Single-Phase HP Rating (Max.) | 3 hp |
| HP @ 3 Phase - 208V, HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 480V | 10 hp |
| IP Rating | IP20 |
| Item | IEC Magnetic Contactor |
| Item Type | Reversing contactor;LC2D |
| Made in USA | No |
| Max. Inductive Amps (AC3) | 18A |
| Max. Resistive Amps (AC1) | 32A |
| Mounting | Rail Plate |
| Non-Overlap Time | 1.5 ms |
| Number of Poles | 3 |
| Operating Cycles | 25...400 HZ,3600 CYC/H 60 A Degrees C |
| Operating Temperature | -20-60 A Degrees C,-40-70 A Degrees C AT UC |
| Series | LC2D, TeSys Deca Series |
| Series, Sub Brand | TeSys D |
| Size | 77 MM,86 MM,90 MM |
| Special Features | 1 HP 115 V AC 60 HZ 1 PHASE-3 HP 230/240 V AC 60 HZ 1 PHASE-5 HP 200/208 V AC 60 HZ 3 PHASE-5 HP 230/240 V AC 60 HZ 3 PHASE-10 HP 460/480 V AC 60 HZ 3 PHASE-15 HP 575/600 V AC 60 HZ 3 PHASE,WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Standard | DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA |
| Standards | CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30 |
| UNSPSC | 39121529 |
| UPC | 785901207450 |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 0.8 W AC-3-2.5 W AC-1 |
| Width | 90 mm |
| Working Height | Up to 9842.52 ft |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | TME | LC2D18F7 | 131.28 | 131.28 | 1 | In Stock | SCHNEIDER ELECTRIC | 131.28 @ Qty: 1+ | ||
 | kentstore.com | LC2D18F7 | 211.88 | 211.88 | 1 | 6 | Square D/Telemecanique | 211.88 @ Qty: 1+ | ||
 | kempstoncontrols.co.uk | LC2D18F7 | 236.3977395 | 236.3977395 | 1 | In Stock | Schneider | 236.3977395 @ Qty: 1+ | ||
 | gordonelectricsupply.com | LC2D18F7 | 357.0 | 357.0 | 1 | In Stock | 10 | SQUARE D | 357.0 @ Qty: 1+ | |
 | blackhawksupply.com | LC2D18F7 | 360.45 | 360.45 | 1 | In Stock | Square D | 360.45 @ Qty: 1+ | ||
 | Newark | 79C9893 | 376.63 | 376.63 | 1 | In Stock | SCHNEIDER ELECTRIC | 376.63 @ Qty: 1+ | ||
 | Zoro | G0568480 | 413.99 | 413.99 | 1 | In Stock | Schneider Electric | 1.8 | 413.99 @ Qty: 1+ | |
| standardelectricsupply.com | 2118391 | 416.75 | 416.75 | 1 | In Stock | Schneider Electric | 416.75 @ Qty: 1+ | |||
| Graybar | 22087893 | 466.0992 | 466.0992 | 1 | In Stock | Square D (Schneider Electric) | 466.0992 @ Qty: 1+ | |||
| us.rs-online.com | 71352152 | 478.43 | 478.43 | 1 | 1 | Schneider Electric | 478.43 @ Qty: 1+ | |||
 | sustainablesupply.com | C3039215 | 484.19 | 484.19 | 1 | In Stock | Schneider Electric | 1.8 | 484.19 @ Qty: 1+ | |
| industrialrefrigerationparts.com | LC2D18F7 | 512.22 | 512.22 | 1 | In Stock | Schneider Electric | 512.22 @ Qty: 1+ | |||
 | crescentelectric.com | 336683 | 620.62 | 620.62 | 1 | In Stock | Schneider Electric | 620.62 @ Qty: 1+ |
