Schneider Electric LC2D25E7

B00CONJLP6

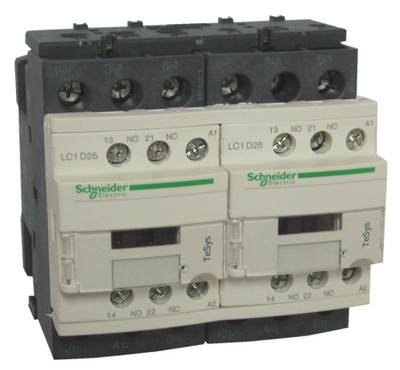

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25E7 Speeddrive 380-480Vac 60Hp,Atv212 Type12

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 25-Amp Iec LC2D25E7 Speeddrive 380-480Vac 60Hp,Atv212 Type12zoom

Attributes

Key Value
3-Phase HP Rating (Max.)20 hp
[Icw] Rated Short-Time .50 A 40 ?C - 10 min for.
[Ith] Conventional Free.10 A (at 60 ?C) for sig.
[Uc] Control Circuit Vo.48 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2 mOhm - Ith 40 A 50 Hz.
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI110229EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Technologywithout built-in suppre.
Coil Voltage48 Vac
Connections - Terminalscontrol circuit screw c.
Contact Current Rating25 A
Contact Operation3NO
Contactor Applicationmotor control || resist.
Contactor TypeReversing
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage48 V
Country of OriginFR - France
Depth92 mm
Device Presentationpreassembled with rever.
Device Short NameLC2D
ECCNEAR99
Environmental DisclosureENVPEP110229EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Heat Dissipation2-3 W 50/60 Hz
Height85 mm
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz cos ph.
Inrush Power In Va70-70 VA 60 Hz cos phi .
Insulation Resistance> 10 MOhm for signallin.
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC for signalling.
Max. Inductive Amps (AC.25A
Max. Resistive Amps (AC.40A
Maximum Horse Power Rat.3 hp at 230/240 V AC 60.
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA for signalling cir.
Minimum Switching Volta.17 V for signalling cir.
Motor Power Kw5.5 kW at 220...230 V A.
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.787 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.25 W AC-3 || 3.2 W AC.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity450 A at 440 V for powe.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Single-Phase HP Rating .3 hp
StandardsCSA C22.2 No 14 || EN 6.
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor
UNSPSC39121529
UPC Code785901466390
Utilisation CategoryAC-1 || AC-3 || AC-3e
Warranty18 months
WeeeThe product must be dis.
Width90 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELC2D25E7186.981In StockSCHNEIDER ELECTRIC186.98 @ 1
thumbzoomkentstore.comLC2D25E7232.413Square D/Telemecanique232.4 @ 1
RS Delivers609-0425336.64811Schneider Electric336.648 @ 1
thumbzoomkempstoncontrols.co.ukLC2D25E7337.49556751In StockSchneider337.4955675 @ 1
Newark33M9253399.741In StockSCHNEIDER ELECTRIC399.74 @ 1
thumbzoomRadwellLC2D25E7420.01In StockSCHNEIDER ELECTRIC SQUARE D420.0 @ 1
standardelectricsupply.com2218076462.771In StockSchneider Electric462.77 @ 1
us.rs-online.com70379437487.571In StockSchneider Electric487.57 @ 1
Graybar25086780517.57441In StockSquare D (Schneider Electric)517.5744 @ 1
thumbzoommayerelectric.comSQDLC2D25E7518.131In StockSQUARE D1.7314518.13 @ 1
