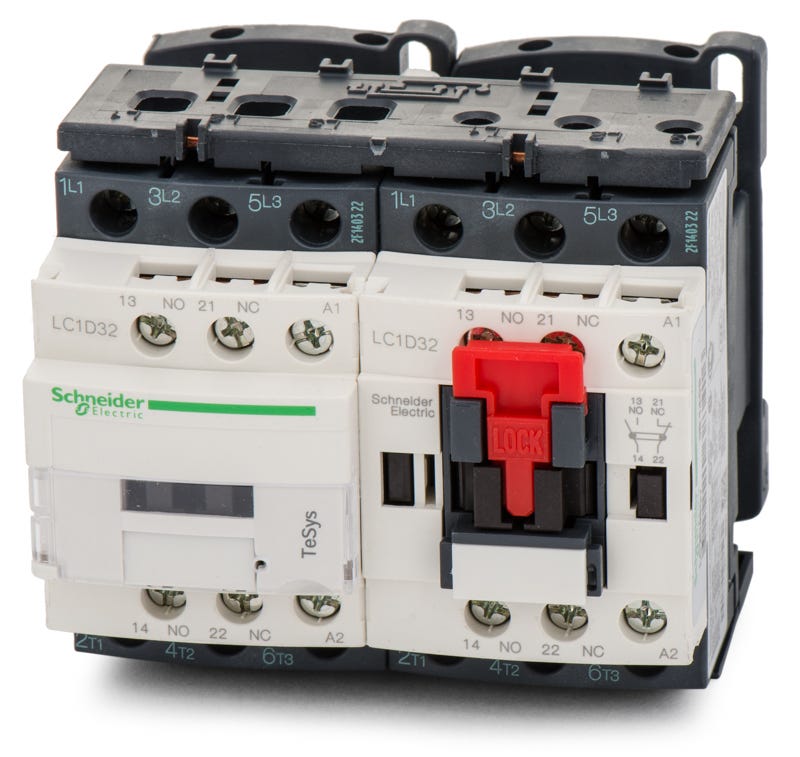

CAI - SCHNEIDER ELECTRIC LC2D32BD

CAI - SCHNEIDER ELECTRIC LC2D32BD

mpn:
LC2D32BD
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
LC2D32BD
Description:
Reversing Contactor, 32A 1NO+1NC 24VDC, Wide range, TeSys Deca Series
Weight:
0.175
Weight:
0.175 LB
Preferred Price:
529.66
Price:
529.66
Min Simple Price:
299.42
Absolute Min Price:
424.87
Min Price:
424.87
Dimensions:
[6.0, 5.0, 5.0]
qty:
21
simpleSku:
DY0NDY:::LC2D32BD
sku:
DY0NDY::T3:LC2D32BD@y0
condition:
11
seller:
superbreakers.com
amzMan:
cai - schneider electric
HazMat:
False
DropShip:
False

Attributes

Key ^Value
3-Phase HP Rating (Max.)25 hp
[Icw] Rated Short-Time Withstand Current60 A 40 ?C - 10 min for power circuit || 138 A 40 ?C - 1 min for power circuit || 260 A 40 ?C - 10 s for power circuit || 430 A 40 ?C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 ?C) for signalling circuit || 50 A (at 60 ?C) for power circuit
[Uc] Control Circuit Voltage, Coil Voltage, Coil Volts24 V DC
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Action, Contactor TypeReversing
Ambient Air Temperature For Operation-40-60 ?C || 60-70 ?C with derating
Ambient Air Temperature For Storage-60-80 ?C
Amperage, Max. Inductive Amps (AC3)32A
ApplicationMotor control;resistive load
ASINB00CON9G8S
Aux. Contact Configuration1NO/1NC
Auxiliary Contact Composition, Contact Configuration1 NO + 1 NC
Auxiliary Contact Form1NC/1NO
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Average Impedance2 mOhm - Ith 50 A 50 Hz for power circuit
Batteries Required?, Made in USANo
Brand, ManufacturerSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Catalog Number, Included Components, Item model number, Mpn, Part NumberLC2D32BD
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Coil Power Rating5.4-5.4 W 20 A Degrees C
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Coil Voltage24 Vdc
ConnectionCONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA?FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA?SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA?SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA?FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA?FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1.5-10 MMA?SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA?SOLID WITHOUT CABLE END
Connections - Terminalscontrol circuit screw clamp terminals 1 1-4 mm?flexible without cable end || control circuit screw clamp terminals 2 1-4 mm?flexible without cable end || control circuit screw clamp terminals 1 1-4 mm?flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm?flexible with cable end || control circuit screw clamp terminals 1 1-4 mm?solid || control circuit screw clamp terminals 2 1-4 mm?solid || power circuit screw clamp terminals 1 2.5-10 mm?flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm?flexible without cable end || power circuit screw clamp terminals 1 1-10 mm?flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm?flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm?solid || power circuit screw clamp terminals 2 2.5-10 mm?solid
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIGNALLING CIRCUIT-50 A 60 A Degrees C POWER CIRCUIT
Contactor Applicationmotor control || resistive load
Contactor TypeIEC
Control Circuit TypeDC standard
Control Circuit Voltage Limits0.1...0.25 Uc -40-70 ?C drop-out DC || 0.7...1.25 Uc -40-60 ?C operational DC || 1...1.25 Uc 60-70 ?C operational DC
Country of OriginFR - France
Country of Origin, Country of Origin (subject to change)France
Depth101 mm
Depth, Height, Width3.54 in
Device Presentationpreassembled with reversing power busbar
Device Short Name, SeriesLC2D
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant with Exemptions
Family NameTeSys Family
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Full Load Amps-Inductive32 A
Full Load Amps-Resistive50 A
Gtin, Upc, UPC, UPC Code785901800156
Height85 mm
Hold-In Power Consumption In W5.4-5.4 W 20 ?C
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 230V5
HP @ 1 Phase - 240V, Single-Phase HP Rating (Max.)5 hp
HP @ 3 Phase - 208V, HP @ 3 Phase - 240V10 hp
HP @ 3 Phase - 480V20 hp
HP @ 3 Phase - 575V30 hp
Hz50/60
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm for signalling circuit
Interlocking Typemechanical
Ip Degree Of ProtectionIP20 front face IEC 60529
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 550 A at 440 V for power circuit conforming to IEC 60947
ItemIEC Magnetic Contactor
Item Package Quantity1
Item TypeReversing contactor;LC2D
Max. Resistive Amps (AC1)50A
Maximum Horse Power Rating2 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 20 hp at 460/480 V AC 60 Hz for 3 phase motors || 30 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Mercury Free, Pvc Free, Reversing, Rohs Exemption InformationYes
Minimum Switching Current5 mA for signalling circuit
Minimum Switching Voltage17 V for signalling circuit
Motor Power Kw7.5 kW at 220...230 V AC 50-60 Hz || 15 kW at 380...400 V AC 50-60 Hz || 15 kW at 415 V AC 50-60 Hz || 15 kW at 440 V AC 50-60 Hz || 18.5 kW at 500 V AC 50-60 Hz || 18.5 kW at 660...690 V AC 50-60 Hz
MountingRail Plate
Mounting Supportrail || plate
Mounting TypeDIN Rail Mount ; Panel Mount, Din Rail
Net Weight1.127 kg
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Number of Poles, Phase, Poles, Pollution Degree3
Operating Altitude0...9842.52 ft (0...3000 m)
Operating Cycles25...400 HZ,3600 CYC/H 60 A Degrees C
Operating Temperature-20-60 A Degrees C,-40-70 A Degrees C AT UC
Operating Time53.55...72.45 ms closing || 16...24 ms opening
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles Description3P
Power Dissipation Per Pole2 W AC-3 || 5 W AC-1 || 2 W AC-3e
Product CertificationsUL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
Product NameTeSys D || TeSys Deca
Product Or Component Typereversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
RangeTeSys || TeSys Deca
Rated Breaking Capacity550 A at 440 V for power circuit conforming to IEC 60947
Reach RegulationReference contains Substances of Very High Concern above the threshold
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
SeriesTeSys Deca Series
Series, Sub BrandTeSys D
Signalling Circuit Frequency25...400 Hz
Size101 MM,85 MM,90 MM
Special Features2 HP 115 V AC 60 HZ 1 PHASE-5 HP 230/240 V AC 60 HZ 1 PHASE-7.5 HP 200/208 V AC 60 HZ 3 PHASE-10 HP 230/240 V AC 60 HZ 3 PHASE-20 HP 460/480 V AC 60 HZ 3 PHASE-30 HP 575/600 V AC 60 HZ 3 PHASE,BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR
StandardUL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCA
StandardsCSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1, CSA, UL
Sustainable Offer StatusGreen Premium product
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat ? 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat ? 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Time Constant28 ms
UNSPSC39121529
UNSPSC Code39120000
Utilisation CategoryAC-1 || AC-3 || AC-3e
Voltage24V
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
Wattage2 W AC-3-5 W AC-1
Width90 mm

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomsuperbreakers.comLC2D32BD299.42299.421In StockSchneider Electric299.42 @ Qty: 1+
thumbzoomNewark20K1203462.78462.781In StockSCHNEIDER ELECTRIC462.78 @ Qty: 1+
thumbzoomAmazonB00CON9G8S492.02492.021In StockSchneider Electric492.02 @ Qty: 1+
industrialautomationparts.comREL-0970-E495.0495.01In StockSCHNEIDER ELECTRIC495.0 @ Qty: 1+
thumbzoomsustainablesupply.comC1182024529.78529.781In StockSchneider Electric2.8529.78 @ Qty: 1+
thumbzoomgordonelectricsupply.comLC2D32BD550.0550.01In Stock10SQUARE D550.0 @ Qty: 1+
thumbzoomZoroG1268662550.0550.01In Stock26Schneider Electric2.8550.0 @ Qty: 1+
us.rs-online.com70747420594.8594.81In StockSchneider Electric594.8 @ Qty: 1+
thumbzoommayerelectric.comSQDLC2D32BD599.85599.851In StockSQUARE D2.4794599.85 @ Qty: 1+
Graybar22070507633.528633.5281In StockSquare D (Schneider Electric)633.528 @ Qty: 1+
thumbzoommostelectric.comLC2D32BD635.37635.371In StockSQUARE D/TELEMECANIQUE635.37 @ Qty: 1+
thumbzoomcrescentelectric.com108492876.09876.091In StockSchneider Electric876.09 @ Qty: 1+
thumbzoomRaptor SuppliesAF9HZT1018.45335151018.45335151In StockSCHNEIDER ELECTRIC1018.4533515 @ Qty: 1+
B07J2WWFT3
CAI - SCHNEIDER ELECTRIC LC2D32BD

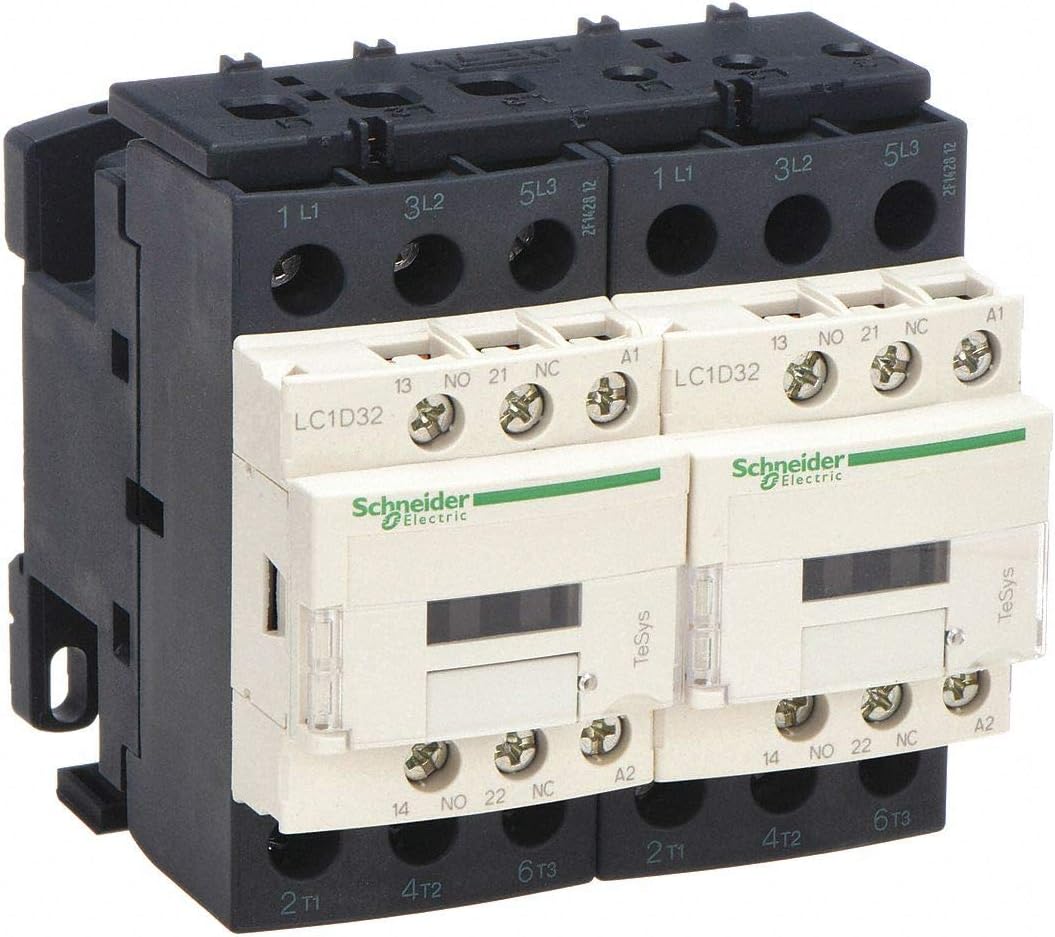

Schneider Electric 24VDC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 32 Full Load Amps-Inductive

Schneider Electric 24VDC IEC Magnetic Contactor; No. of Poles 3, Reversing: Yes, 32 Full Load Amps-Inductivezoom
