LC2D50G7

B007BN1K9E

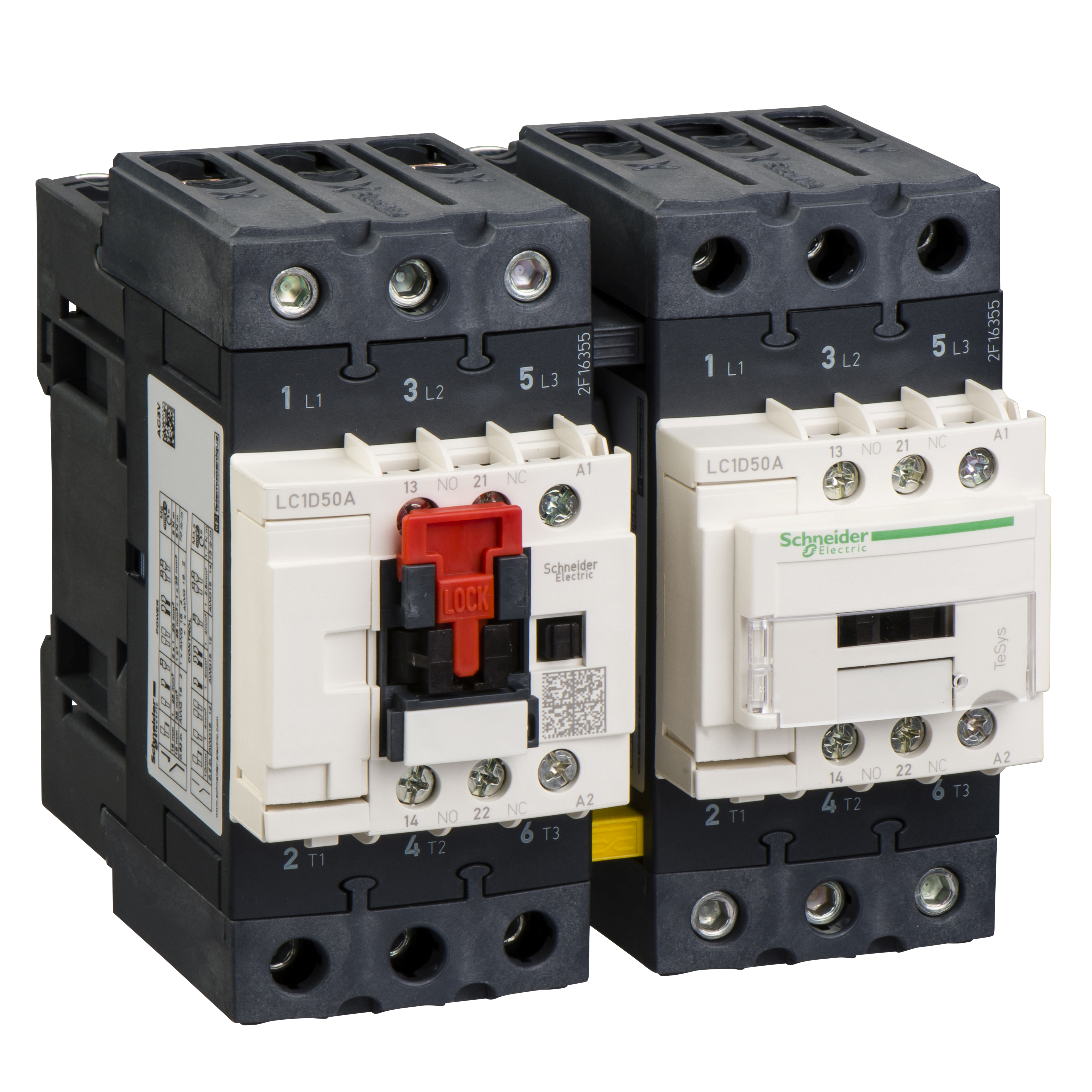

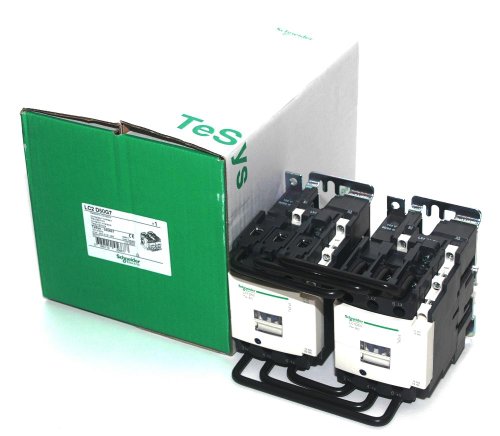

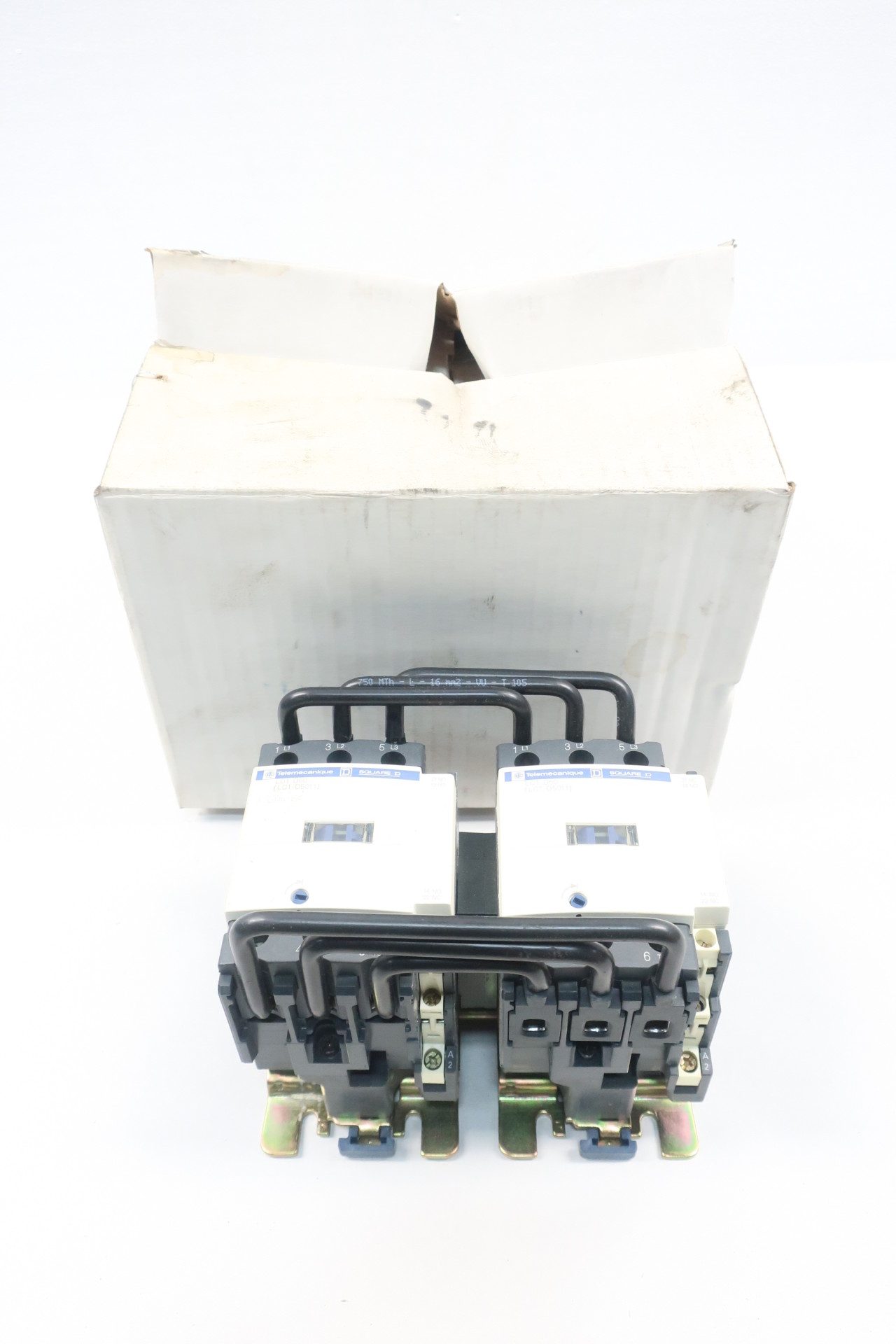

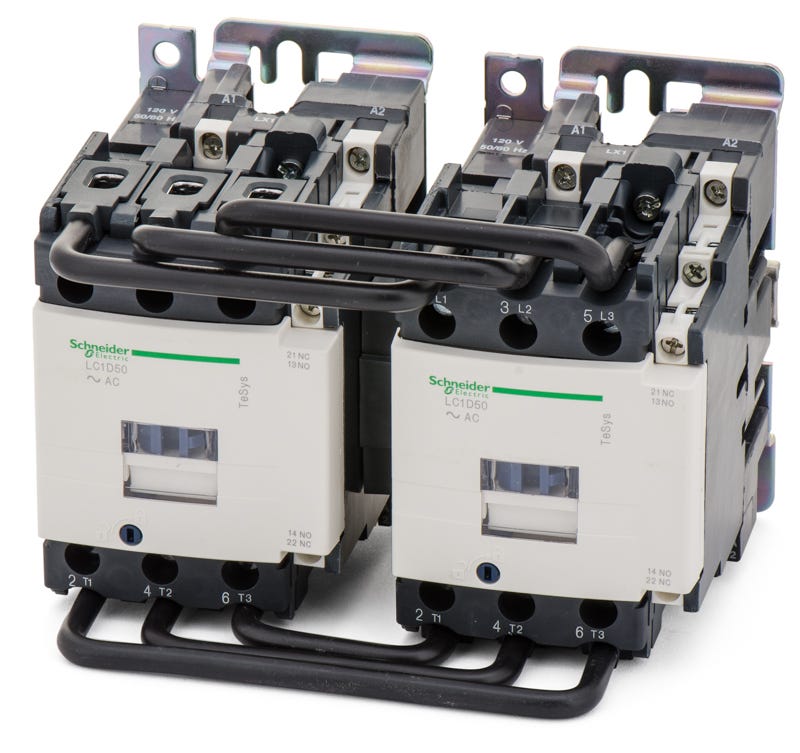

Telemecanique LC2D50G7 Contactor 120V 50A LC1D50G7 Schneider Electric

Telemecanique LC2D50G7 Contactor 120V 50A LC1D50G7 Schneider Electriczoom

Attributes

Key Value
3-Phase HP Rating (Max.)40 hp
[Ie] Rated Operational .power circuit 50 A AC A.
[Ith] Conventional Free.10 A 60 ?C control circ.
[Uc] Control Circuit Vo.120 V AC 50/60 Hz
[Ui] Rated Insulation V.control circuit 600 V C.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-5-60 ?C
Ambient Air Temperature.-60-80 ?C
Amperage50A
Applicationmotor control
Assembly Styleready assembled
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average ImpedanceIth 80 A 50 Hz power ci.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D50G7
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503009EN
Coil Power Rating200/220/245 VA Inrush, .
Coil Technologywithout built-in bidire.
Coil TypeStandard
Coil Voltage120, 120 VAC, 120 V AC .
Coil Volts120 V AC
ConnectionControl circuit 1 1-4 m.
Connection typeScrew Clamp
Connections - Terminalscontrol circuit 1 1-4 m.
Contact Configuration3NO, 3 NO;1 NO + 1 NC;M.
Contact Operation3NO
Contact Rating50 A at 575 VAC
Contact typeReversing
Contactor Applicationmotor control
Contactor TypeIEC, Reversing
Control Circuit TypeAC
Control Circuit Voltage.drop-out 0.3...0.6 Uc 5.
Country of OriginCzech Republic, CZ - Cz.
Country of Origin (subj.Czechia
Depth142 mm
Device Short NameLC2D
Dimensions132 mm H x 165 mm W x 1.
ECCNEAR99
Enclosure TypeIP2X
Environmental DisclosureENVPEP1503009EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Family SeriesSquare D Contactors
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frequency Rating50/60, 50/60 Hz
Full Load Amps-Inductive50 A
Gross Weight0 lbs
GTIN03389110456677
Gtin785901456674
Heat Dissipation6-10 W 50/60 Hz control.
Height132 mm
Hold-In Power Consumpti.20-20 VA 50 Hz 0.3 20 ?.
Inrush Power In Va200-200 VA 0.75 20 ?C) .
Insulation Resistance> 10 MOhm control circu.
Interlocking Typemechanical
International ShippingNo
Ip Degree Of ProtectionIP2x IEC 60529 || IP2x .
Irms Rated Making Capac.140 A AC control circui.
ItemIEC Magnetic Contactor
Item NumberLC2D50G7
Item TypeReversing contactor;Sta.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number117163
Max. Inductive Amps (AC.50A
Max. Resistive Amps (AC.80A
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability6000000 cycles
Mercury FreeYes
Minimum Switching Curre.5 mA control circuit
Minimum Switching Volta.17 V control circuit
Motor Power Kw15 kW 220...240 V AC 50.
MountingPlate;rail
Mounting Supportplate || rail
Mounting typeSurface
Mounting TypeDIN Rail Mount ; Panel .
MpnLC2D50G7
Net Weight2.4 kg, 0 lbs
Nominal Coil Voltage120 VAC
Non-Overlap Time1.5 ms on de-energisati.
Number of Auxiliary Con.1NO-1NC
Number of Poles3
Operating Altitude9842.52 ft (3000 m) wit.
Operating Cycles6000000, 6000000 Cycles
Operating Temperature-5 to 60, -5 to 60 deg C
Operating Time12...26 ms closing || 4.
Overvoltage CategoryIII
Permissible Ambient Air.-40-70 ?C at Uc
Phase3
Pole Contact Composition3 NO
Poles3NO, 3
Poles Description3P
Power Dissipation Per P.3.7 W AC-3 - Ith 80 A
Power factor0.75 Inrush, 0.3 Hold-In
Product CertificationsGL || UL || RINA || GOS.
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH 3)IEC 60068
Pvc FreeYes
Range Of ProductTeSys D || TeSys Deca
Rated Breaking Capacity900 A 440 V power circu.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys D Series.
Shock Resistance10 gn contactor closed .
Size5.59
SKUZO-G0568508
Special Featureswithout built-in bidire.
StandardV1 conforming to UL 94
StandardsIEC 60947-4-1 || CSA C2.
Sub BrandLC2D
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Terminal TypeScrew Clamp, Screw/Clamp
Tightening Torquecontrol circuit 1.7 N.m.
Toxic Heavy Metal FreeYes
TypeIEC Contactor, Standard
UNSPSC39121529
Upc785901456674
UPC785901456674
UPC Code785901456674
Utilisation CategoryAC-2 || AC-3 || AC-4
Vibration Resistance2 gn 5-300 Hz contactor.
Voltage120V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage30, 30 kW
WeeeThe product must be dis.
Width165 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD747603386.721In StockSQUARE D386.72 @ 1
thumbzoomsuperbreakers.comLC2D50G7539.991In StockSchneider Electric539.99 @ 1
thumbzoomgordonelectricsupply.comLC2D50G7850.01In Stock10SQUARE D850.0 @ 1
thumbzoomsustainablesupply.comC3039817853.981In StockSchneider Electric7.1853.98 @ 1
thumbzoomblackhawksupply.comLC2D50G7858.941In StockSquare-D858.94 @ 1
thumbzoomRadwellLC2D50G7900.01In StockSCHNEIDER ELECTRIC SQUARE D900.0 @ 1
thumbzoomcappusa.com4811685967.11In StockSchneider Electric967.1 @ 1
thumbzoomstandardelectricsupply.com2211258992.831In StockSchneider Electric992.83 @ 1
Newark79C99331015.821In StockSCHNEIDER ELECTRIC1015.82 @ 1
us.rs-online.com708703021036.0512Schneider Electric1036.05 @ 1
thumbzoomGalcoLC2D50G7-SQD1037.581In StockSquare D1037.58 @ 1
AmazonTPB011OPC50M1106.971In Stock2SCHNEIDER ELECTRIC1106.97 @ 1
AmazonUNKB011OPC50M1106.971In StockSCHNEIDER ELECTRIC1106.97 @ 1
Graybar220759031110.41281In StockSquare D (Schneider Electric)1110.4128 @ 1
thumbzoommayerelectric.comSQDLC2D50G71111.591In StockSQUARE D5.281111.59 @ 1
thumbzoomsimsupply.comZO-G05685081199.311In StockSchneider Electric1199.31 @ 1
thumbzoomZoroG05685081270.331In StockSchneider Electric7.11270.33 @ 1
thumbzoomcrescentelectric.com824661327.31In StockSchneider Electric1327.3 @ 1
industrialrefrigerationparts.comLC2D50G72170.231In StockSchneider Electric2170.23 @ 1
