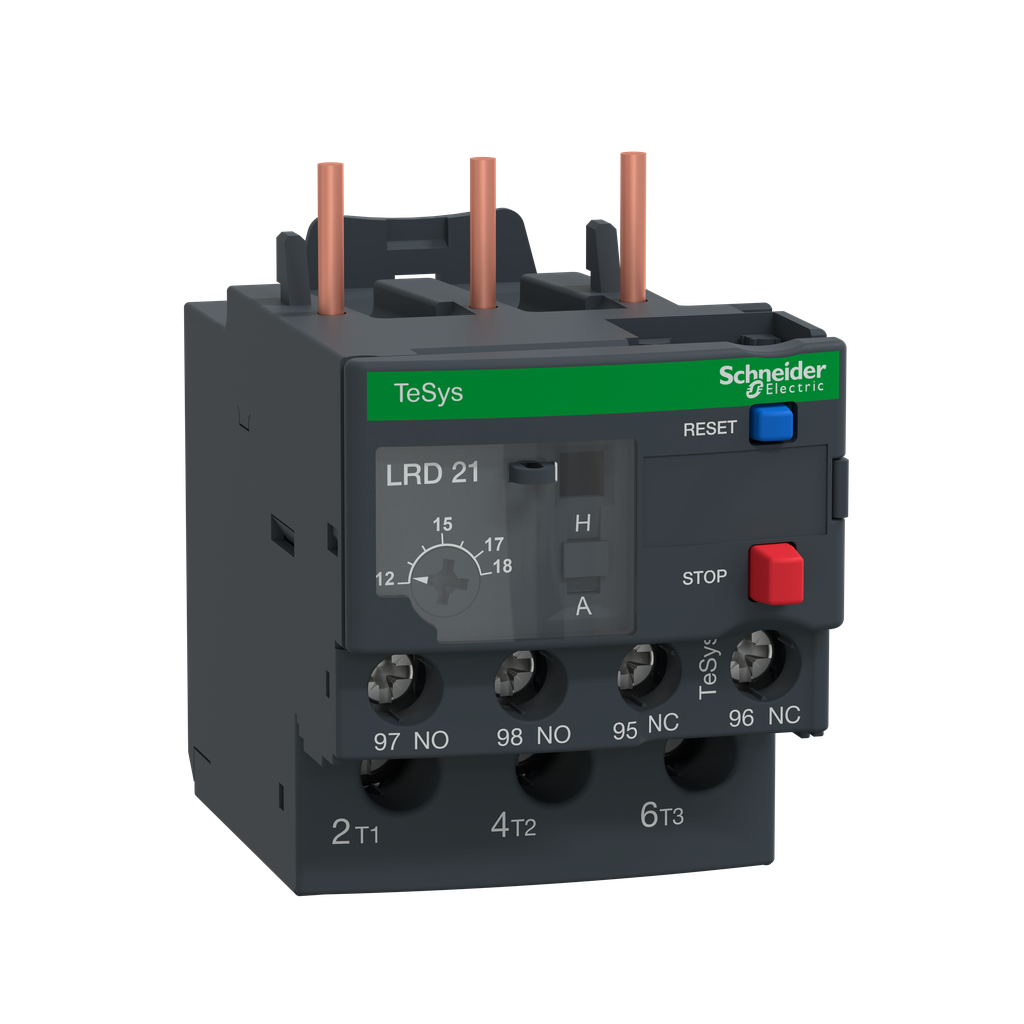

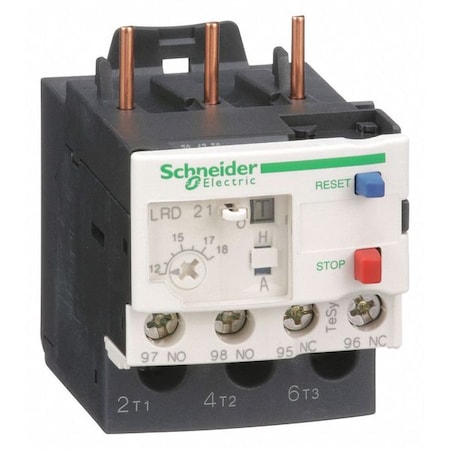

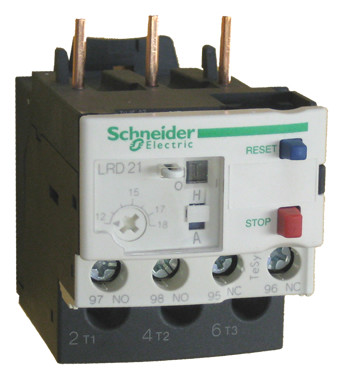

Schneider Electric IEC Style Overload Relay, 12.0 to 18.0A, 3 Poles, Manual Reset, Trip Class: 10

Schneider Electric IEC Style Overload Relay, 12.0 to 18.0A, 3 Poles, Manual Reset, Trip Class: 10zoom

Attributes

Key Value
[Ith] Conventional Free.5 A signalling circuit
[Ue] Rated Operational .690 V AC 0 to 400 Hz po.
[Ui] Rated Insulation V.power circuit 600 V CSA.
[Uimp] Rated Impulse Wi.6 kV
Ambient Air Temperature.-20-60 ?C without derat.
Ambient Air Temperature.-60-70 ?C
Ambient Temperature Ran.-4-140 ?F
Amperage Rating12-18A
ApplicationMotor protection;LC1D32.
ApprovalsATEX, CCCLLOYD, CSA, DN.
Associated Fuse Rating4 A gG signalling circu.
Auxiliary Contact Compo.1 NO + 1 NC
Body Depth - Relay2.75 in
Body Height - Relay3.62 in
Body Width - Relay1.77 in
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLRD21
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI0802006
Class Rating10
Climatic WithstandIACS E10
Connections - Terminalscontrol circuit screw c.
Contact Configuration1 NO + 1 NC
Contact Rating10A CONTROL CIRCUTRY
Control TypeRed push-button stop ||.
Control Voltage690
Country of OriginFR - France, France
Current Range12.0 to 18.0A
Current Rating12 to 16 A
Current Setting Range12-18 A
Depth70 mm, 2.756 in, 2.75"
Device Short NameLRD
Dielectric Strength1.89 kV 50 Hz IEC 60947.
ECCNEAR99
Environmental DisclosureENVPEP080206EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Family SeriesSquare D Overload Relays
FeaturesSingle Phase Sensitivit.
Flame RetardanceV1 conforming to UL 94
For Use WithLC1D18 thru LC1D32 Cont.
FunctionOverload
Gross Weight0.32 lbs
Height66 mm, 3.62"
InsulationPOWER CIRCUIT 600 V CSA.
Ip Degree Of ProtectionIP20 conforming to IEC .
ItemOverload Relay
Item - RelayIEC Style Overload Relay
Item NumberLRD21
Item Typedifferential thermal ov.
Length1.772 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number220758
Maximum Operating Tempe.60 C
Mechanical Robustnessvibrations6 Gn IEC 6006.
Mercury FreeYes
Minimum Operating Tempe.-20?C
MountingRail Plate
Mounting StyleDIN Rail, Plate
Mounting Supportplate, with specific ac.
Net Weight0.27 lbs, 0.124 kg
Network Frequency0...400 Hz
Network TypeAC || DC
Number of Circuits1
Number of Poles3
Operating Temperature-20C TO 60C WITHOUT DER.
Output Contacts1NO, 1NC
Overall Height - Relay3.62 in
Overload Relay Current .12.0 to 18.0 A, 12.0 to.
Permissible Current1.5 A 240 V AC-15 signa.
Phase Failure Sensitivi.tripping current 130 % .
Poles3
Primary TypeContactor
Product CertificationsIEC || UL || CSA || CCC.
Product CompatibilityLC1D32 || LC1D18 || LC1.
Product NameTeSys LRD || TeSys Deca
Product Or Component Ty.differential thermal ov.
RangeTeSys || TeSys Deca
Reach RegulationReference contains Subs.
Relay Applicationmotor protection
Relay TypeElectromechanical
Reset TypeMANUAL OR AUTO, Automat.
Reset Type - RelayManual
Rohs Exemption Informat.Yes
Sensing MethodBIMETALLIC
SeriesTeSys LRD Series
Size70 L x 45 W mm, 2.76
Special FeaturesRed push-button stop;Bl.
StandardUL, CSA
StandardsUL, CSA, ATEX D 94/9/CE.
Starter TypeIEC
Sub BrandTeSys LRD;TeSys Deca;LRD
Supply Voltage690 VAC
Sustainable Offer StatusGreen Premium product
Temperature Compensation-20-60 ?C
Temperature Operating R.-20 to 60?C
Terminal TypeScrew Clamp
Thermal Overload Classclass 10A IEC 60947-4-1
Thermal Protection Adju.12-18 A
Tightening Torquecontrol circuit 1.7 N.m.
Trip Class10, Class 10A
Trip Class - Overload10
Trip TypeTHERMAL - AMBIENT COMPE.
Tripping Threshold1.14 +/- 0.06 Ir IEC 60.
TypeOverload
UNSPSC39122330
UPC785901206798
UPC Code785901206798
Use WithLC1D18-D32
Use With - Contactors a.Mfr. Series LC1D18 to L.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width1.77", 45 mm
