Description:

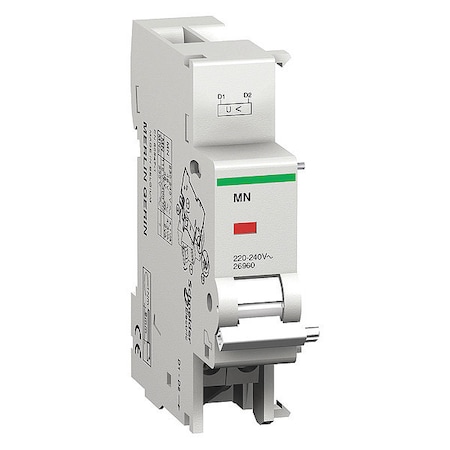

Undervoltage Release, For Use With Multi 9 Circuit Breakers, Voltage 120V AC/24V DC, Number of Poles None, Standards CSA Certified, EN 60947-2, EN/IEC 60947-1, PCT, UL Listed, UR
Attributes
| Key ^ | Value |
|---|---|
| 9 Mm Pitches | 2 |
| Accessory Type, Item | Undervoltage Release |
| Ambient Air Temperature For Operation | -25-50 2?C |
| Ambient Air Temperature For Storage | -40-85 2?C |
| Connections - Terminals | clamp terminal bottom) - 1 2.5-2.5 mm2? AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2? AWG 16) - rigid |
| Control Type | standard |
| Depth | 68 mm |
| Device Short Name | MN |
| For Use With | Multi 9 Circuit Breakers |
| Height | 82.5 mm |
| Local Signalling | action indicator |
| Mounting Mode | fixed |
| Mounting Support | DIN rail |
| Number of Poles | None |
| Pollution Degree | 3 |
| Product Certifications | UR || CSA || PCT || UL |
| Range | Multi9 |
| Range Compatibility | Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC |
| Standards | EN 60947-2 || EN/IEC 60947-1 |
| Tightening Torque | 1-1 N.m bottom |
| Voltage | 120V AC/24V DC |
| Width | 18 mm |
| Wire Stripping Length | 9 mm bottom |
