name: SCHNEIDER ELECTRIC
manufacturer:
MPN:
Attributes
| Key ^ | Value |
|---|---|
| Ambient Air Temperature For Storage | -30-70 ?C |
| Body Type | one piece moulded |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Color | body Gray RAL 7035) |
| Device Application | multi-purpose |
| Device Composition | 1 cover on enclosure || 1 rear part on enclosure || locking screws |
| Device Short Name | PLS |
| Electrical Insulation Class | class II |
| Enclosure Mounting | wall mounted |
| Enclosure Nominal Depth | 180 mm |
| Enclosure Nominal Height | 270 mm |
| Enclosure Nominal Width | 540 mm |
| Environmental Disclosure | ENVPEP110704EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Fire Resistance | 960 ?C IEC 62208 |
| Ik Degree Of Protection | IK09 IEC 62262 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Lock Type | slot screw |
| Material | Cover polycarbonate || rear polyester reinforced with fibreglass |
| Mercury Free, Rohs Exemption Information | Yes |
| Product Certifications | UL |

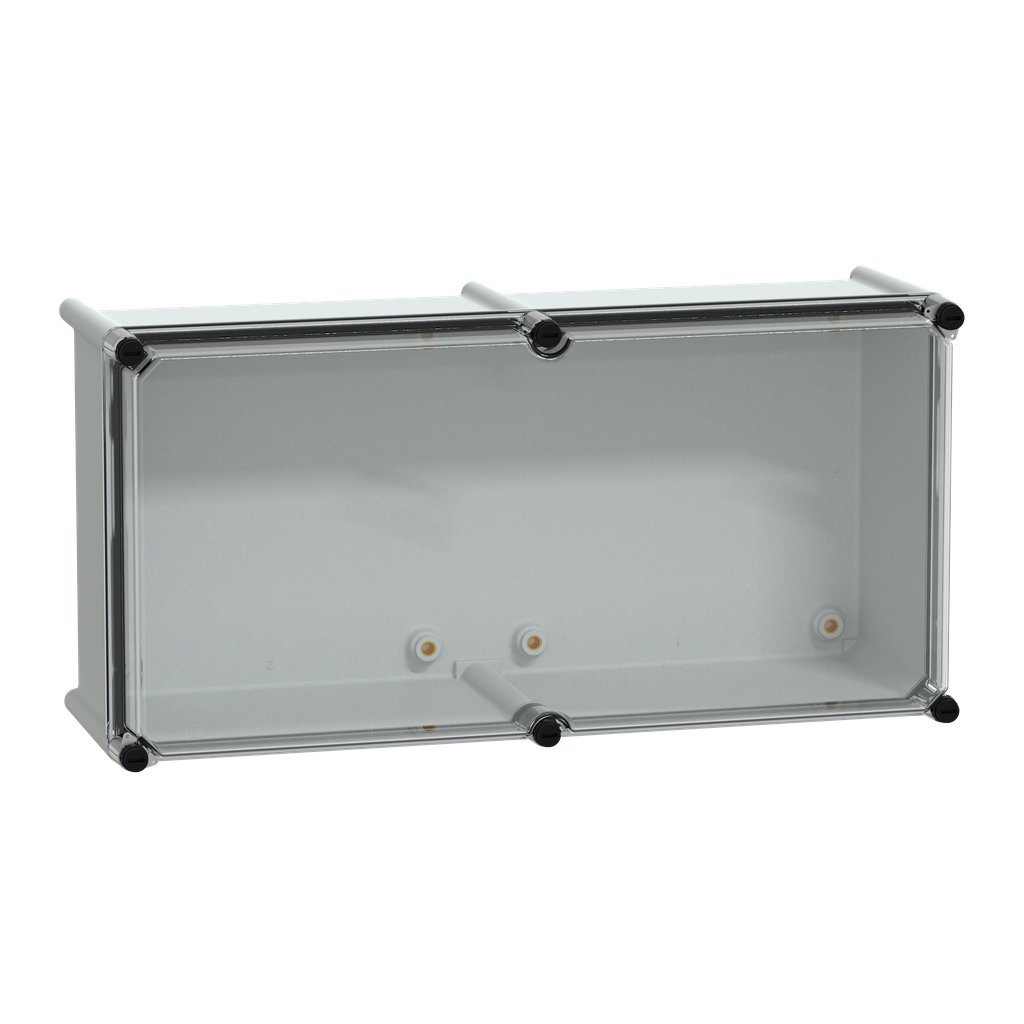

| Product Name | Thalassa PLS |
| Product Or Component Type | insulating modular box |
| Range | Thalassa |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Removable Parts | cover locking screw |
| Standards | NEMA 4X || IEC 62208 || NEMA classification 13 |
| Sustainable Offer Status | Green Premium product |
| Type Of Front Cover | low transparent cover |
