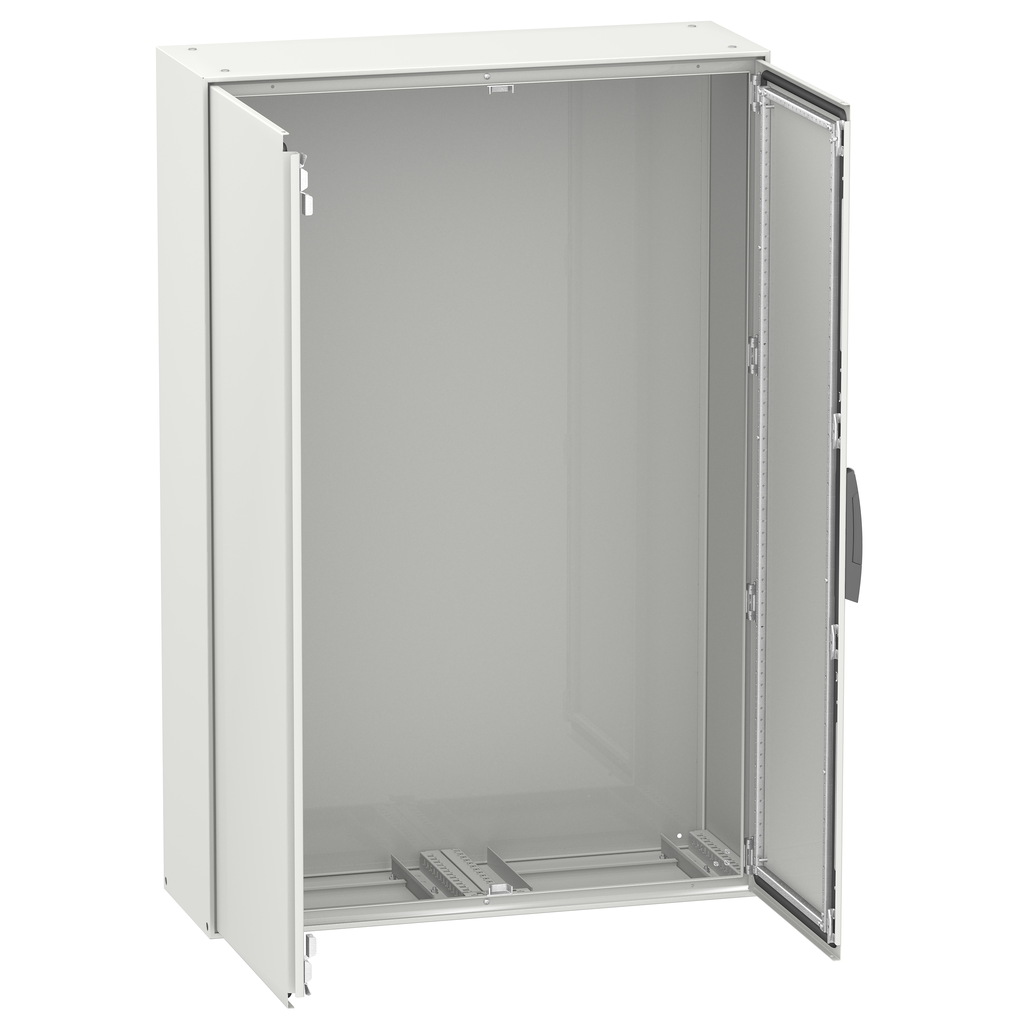

SCHNEIDER ELECTRIC NSYSM2010502DP
SCHNEIDER ELECTRICzoom
manufacturer:

Attributes

Key ^Value
Accessibility For Operationfront
Body Typefront part forming a rigid frame with welded corners || single piece body with welded rear panel
Cable Entry1 entry
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Colorenclosure Gray RAL 7035) || handle Black RAL 9005)
Device Applicationmulti-purpose
Device Composition1 body || 2 door || 1 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket || 1 mounting plate
Door Opening Sideleft 120 ?) || right 120 ?)
Door TypeSolid
Enclosure Nominal Depth500 mm
Enclosure Nominal Height2000 mm
Enclosure Nominal Width1000 mm
Environmental DisclosureENVPEP110923EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ik Degree Of ProtectionIK10 IEC 62262
Installation Accessory Typefloor-standing
Ip Degree Of ProtectionIP55 IEC 60529
Lock Type4 points lock, handle with 5 mm double bar insert
Materialmounting plate galvanised steel || body sheet steel || door sheet steel || hinge zamak
Mercury Free, Reach Free Of Svhc, Rohs Exemption InformationYes
Mounting Plate Descriptionplain
Net Weight165 kg
Number Of Doorsfront 2
Product CertificationsDNV || BV || UL
Product NameSpacial SM
Product Or Component Typecompact enclosure
RangeSpacial
Reach RegulationFree of Substances of Very High Concern above the threshold
Removable Partsdoor by screws hinge || mounting plate by screws mounting plate bracket || mounting plate bracket by screws
StandardsIEC 62208
Surface Finishepoxy-polyester powder
Sustainable Offer StatusGreen Premium product
Type Of Gland Platestandard
Warranty18 months
