CAI - SCHNEIDER ELECTRIC RPM22BD

B07J2WYVKQ

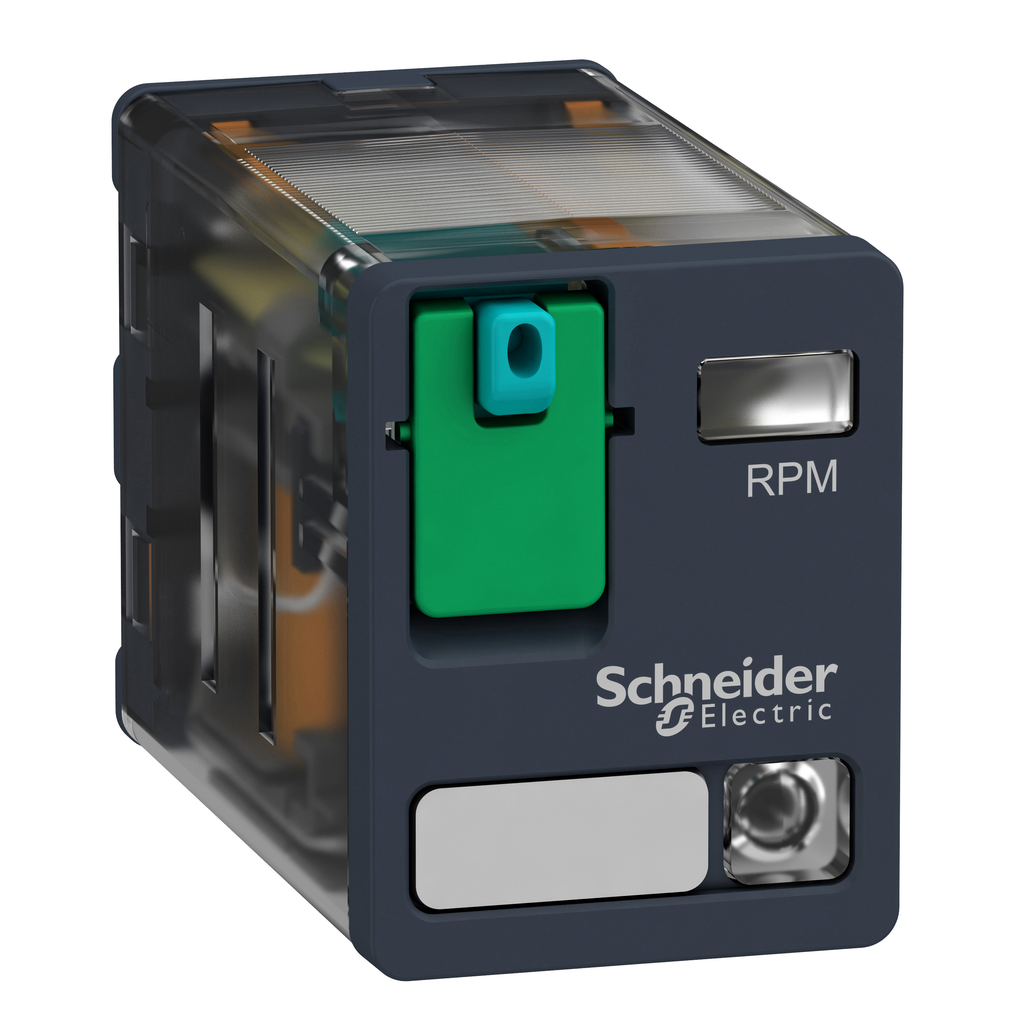

Schneider Electric 24VDC, 8-Pin Square Base General Purpose General Purpose Relay; AC Contact Rating: 15A @ 277V

Schneider Electric 24VDC, 8-Pin Square Base General Purpose General Purpose Relay; AC Contact Rating: 15A @ 277Vzoom

Attributes

Key Value
[Ie] Rated Operational .15 A 277 V AC) UL || 15.
[Ithe] Conventional Enc.15 A -40-55 ?C
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.250 V IEC || 300 V CSA .
[Uimp] Rated Impulse Wi.4 kV 1.2/50 ?s
AC Contact Rating - Rel.15 A @ 277V, 15A @ 277V
Ambient Air Temperature.-40-55 ?C
Ambient Air Temperature.-40-85 ?C
Amperage Rating15 A 277 V AC) UL || 15.
ApprovalsCE, CSA, UL
Average Coil Consumption0.85 W
Average Resistance640 Ohm at 20 ?C +/- 10.
Base Type - Plug In Rel.Square
Body Depth1.54 in
Body Depth - Relay1.06 in
Body Height1.06 in
Body Height - Relay1.82 in
Body Width0.83 in
Body Width - Relay0.83 in
BrandSchneider Electric
California Proposition .Nickel compounds, which.
Catalog NumberRPM22BD
CategoryRelays
China Rohs RegulationX
Circularity ProfileN/A
Coil Current37.5 mA
Coil Insulation-
Coil Resistance640 Ohms
Coil TypeNon Latching
Coil Voltage24VDC, 24 V DC, 24 VDC
Coil Volts24V DC
ConnectionFLAT/SPADE (FASTON TYPE)
Contact Configuration2 C/O
Contact Current Rating15 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Nickel Alloy, Si.
Contact Operation2 C/O
Contact RatingB300
Contact Rating (Current)15 A
Contact Voltage Rating300
ContactsDPDT
Contacts MaterialAgNi
Contacts Type And Compo.2 C/O
Control Typelockable test button
Control Voltage24
Country of OriginCN - China, China
Current Rating15 A
DC Contact Rating - Rel.15 A @ 28V, 15A @ 28V
DescriptionHARMONY, POWER PLUG-IN .
Detailed DescriptionGeneral Purpose Relay D.
Device Presentationcomplete product
Device Short NameRPM
Dielectric Strength1500 V AC between conta.
Digi-Key Part Number4008-RPM22BD-ND
DiodeNo
Drop-Out Voltage Thresh.>= 0.1 Uc DC
ECCNEAR99
Electrical Durability100000 cycles resistive
EnclosureIP 40 CONFORMING TO IEC.
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Relays
FeaturesPlug In Protection Modu.
Flat Pin Width0.18 in
FunctionGeneral Purpose
Gross Weight0.085 lbs
GTIN03389119401890
HP @ 120VNot Rated
Ip Degree Of ProtectionIP40 conforming to IEC .
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Item NumberRPM22BD
Item TypePlug-in relay;Flat
Load Current15 A 250 V AC || 15 A 2.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number450720
Manufacturer Product Nu.RPM22BD
Manufacturer Standard L.1 Weeks
MaterialAgNi
Max Current15 A
Maximum Switching Capac.3750 VA || 420 W
Maximum Switching Volta.250 V IEC
Mechanical Durability10000000 cycles
MfrSchneider Electric
Minimum Switching Capac.170 mW 10 mA, 17 V
MountingDIN Rail
Mounting - RelayPlug In
Mounting TypeSocket Mount, Socketable
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Net Weight0.036 kg, 0.085 lbs
Nominal Coil Voltage24 VDC
Number of Pins - Relay8
Operate Time20 ms
Operating Positionany position
Operating Temperature-40?C ~ 55?C, -40-55 A .
Operating Time20 ms at nominal voltage
Overall Depth1.82 in
Overall Height - Relay2.13 in
PackageBox
Pollution Degree3
Power Consumption - Rel.0.9 W
Primary TypePower Relays
Product CertificationsEAC || UL || CSA
Product Or Component Ty.plug-in relay
Product StatusActive
Protection CategoryRT I
Published Coil Voltage24 VDC
Push To TestLockable
Push-to-TestYes
Range Of ProductHarmony Electromechanic.
Rated Operational Volta.19.2...26.4 V DC
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Relay TypeElectromechanical, Gene.
Release Time20 ms
Reset Time20 ms at nominal voltage
Resistance650 OHMS
RoHSYes
Safety GuidedNo
Safety Reliability DataB10d = 100000
Seal Rating-
SeriesPower Series, Harmony
Series NamePower
Shape Of Pinflat
Shock Resistance15 gnin operation || 30.
SocketMfr. No. RPZF2
Socket Code - RelayD
Special FeaturesLockable Test Button ; .
StandardCSA C22.2 No 14 || EN/I.
StandardsCSA C22.2 No 14, CSA Ce.
Status IndicatorYes, LED Indicator, Mec.
Status Ledwith
Sub BrandRPM
Switching Voltage250VAC, 28VDC - Max
TerminationQC Tabs, Plug-In
Termination StylePlug In
Test Levelslevel A group mounting
UNSPSC39122326
UPC785901447863
UPC Code785901447863
Utilisation Coefficient20 %
Vibration Resistance3 gn +/- 1 mm 10-150 Hz.
Voltage Rating250 ; 28 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
