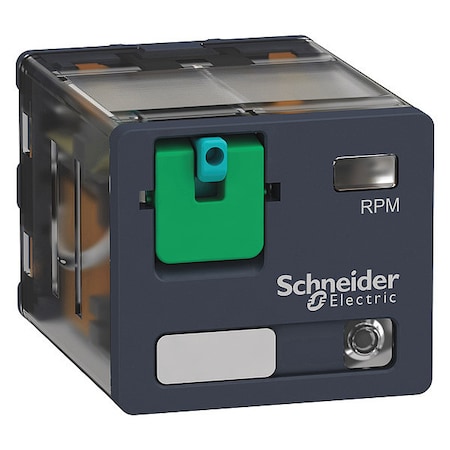

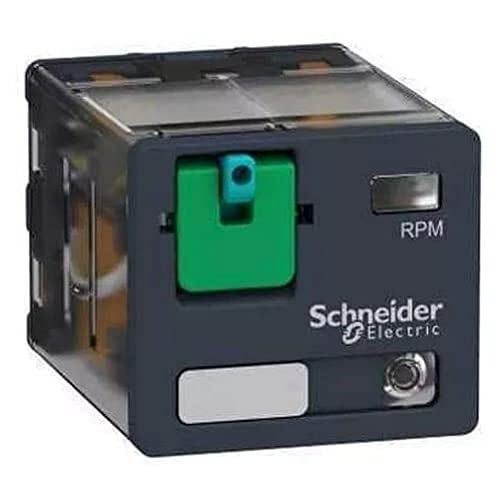

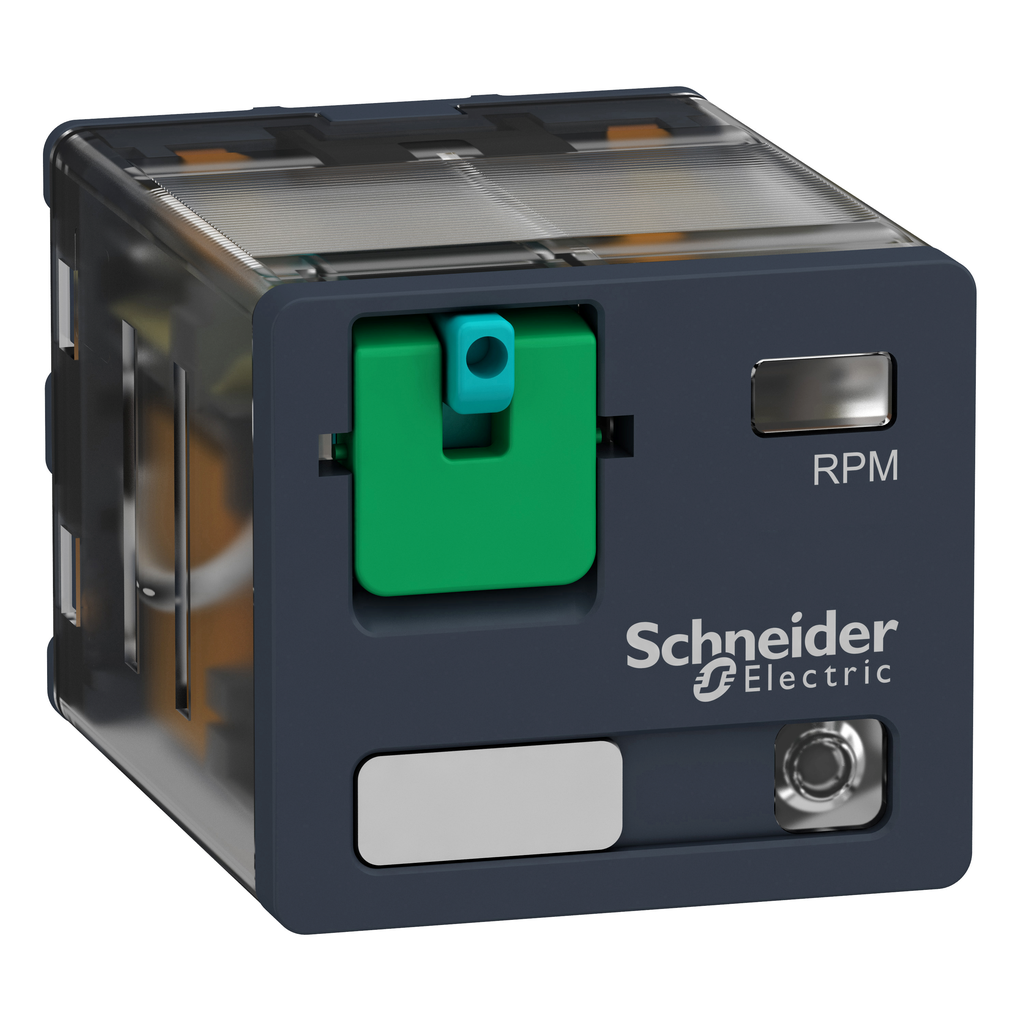

Schneider Electric RPM32BD

Schneider Electric RPM32BD

mpn:
RPM32BD
brand:
Schneider Electric
manufacturer:
Schneider Electric
MPN:
RPM32BD
Description:
3PDT Panel Mount Non-Latching Relay Plug In 15 A 24V dc
Weight:
0.007425
Weight:
0.1232 LB
Preferred Price:
24.23
Price:
24.23
Min Simple Price:
13.07
Absolute Min Price:
18.87
Min Price:
18.87
Dimensions:
[2.0, 2.0, 2.0]
qty:
21
simpleSku:
MDU2Nw:::RPM32BD
sku:
MDU2Nw::AE:RPM32BD@y0
condition:
11
seller:
Galco
amzMan:
schneider electric
HazMat:
False
DropShip:
False

Attributes

Key ^Value
[Ie] Rated Operational Current, Amperage Rating15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
[Ithe] Conventional Enclosed Thermal Current15 A -40-55 ?C
[Uc] Control Circuit Voltage, Coil Voltage24 V DC
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 ?s
AC Contact Rating - Relay15A @ 277V
Ambient Air Temperature For Operation-40-55 ?C
Ambient Air Temperature For Storage-40-85 ?C
ApprovalsCE, CSA, UL
Average Coil Consumption, Power Consumption - Relay1.5 W
Average Resistance320 Ohm at 20 ?C +/- 10 %
Base Type - Plug In RelaySquare
Body Depth1.54 in
Body Depth - Relay, Body Height1.06 in
Body Height - Relay, Overall Depth1.82 in
Body Width, Body Width - Relay1.22 in
Brand, Manufacturer, MfrSchneider Electric
California Proposition 65 : WARNING: This product can expose you to chemicals includingNickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog Number, Item Number, Manufacturer Part Number, Manufacturer Product Number, MpnRPM32BD
CategoryRelays
China Rohs RegulationX
Coil Current75 mA
Coil Insulation, Seal Rating-
Coil Resistance320 Ohms
Coil TypeNon Latching
Coil Voltage24VDC
Coil Volts24V DC
ConnectionFLAT/SPADE (FASTON TYPE)
Contact Configuration, Contact Operation, Contacts Type And Composition3 C/O
Contact Current Rating, Contact Rating (Current), Current Rating, Max Current15 A
Contact Form3PDT (3 Form C)
Contact Form, Contact Form - Relay, Contacts3PDT
Contact MaterialSilver Nickel Alloy, Silver Nickel (AgNi), Silver Alloy
Contact RatingB300
Contact Voltage Rating300
Contacts Material, MaterialAgNi
Control Typelockable test button
Country of OriginCN - China, China
Cross Reference ProductsIDEC RH3B-ULCDC24V
Current Stock22
DC Contact Rating - Relay15A @ 28V
DescriptionHARMONY, POWER PLUG-IN RELAY, 15
Detailed DescriptionGeneral Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
Device Presentationcomplete product
Device Short Name, Sub BrandRPM
Dielectric Strength1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
Digi-Key Part Number4008-RPM32BD-ND
Diode, International Shipping, Made in USA, Safety GuidedNo
Drop-Out Voltage Threshold>= 0.1 Uc DC
ECCNEAR99
Electrical Durability100000 cycles resistive
EnclosureIP 40 CONFORMING TO IEC/EN 60529, Plastic
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Family SeriesSquare D Relays
FeaturesPlug In Protection Module to Protect Against Electrical Spikes, Lighted Indicator, Test Button
Flat Pin Width0.18 in
Gross Weight, Net Weight0 lbs
GTIN03389119402057
HP @ 120VNot Rated
Ip Degree Of ProtectionIP40 conforming to EN/IEC 60529
Item TypePlug-in relay;Flat
Item, Item - RelayGeneral Purpose Relay
Lead TimeExpected to ship in 1-2 business days
Load Current15 A 250 V AC || 15 A 28 V DC
ManufacturerSquare D
Manufacturer Standard Lead Time3 Weeks
Maximum Switching Capacity3750 VA || 420 W
Maximum Switching Voltage250 V IEC
Mechanical Durability10000000 cycles
Mercury Free, Push-to-Test, Reach Free Of Svhc, RoHS, Rohs Exemption Information, Status Indicator, Toxic Heavy Metal FreeYes
Minimum Switching Capacity170 mW 10 mA, 17 V
MountingDIN Rail
Mounting - Relay, Termination StylePlug In
Mounting TypeSocketable, Panel Mount
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Net Weight0.054 kg
Nominal Coil Voltage, Published Coil Voltage24 VDC
Number of Pins - Relay11
Operate Time, Release Time20 ms
Operating Position, Special Featuresany position
Operating Temperature-40?C ~ 55?C, -40-55 A Degrees C
Operating Time, Reset Time20 ms at nominal voltage
Overall Height - Relay2.13 in
PackageBox
Pollution Degree3
Primary TypePower Relays
Product CertificationsEAC || UL || CSA
Product Or Component Typeplug-in relay
Product StatusActive
Protection CategoryRT I
Push To TestLockable
Range Of ProductHarmony Electromechanical Relays
Rated Operational Voltage Limits19.2...26.4 V DC
Reach RegulationFree of Substances of Very High Concern above the threshold
Relay TypeGeneral Purpose
Resistance400 OHMS
Safety Reliability DataB10d = 100000
SeriesHarmony
Series NamePower
Shape Of Pinflat
Shock Resistance15 gnin operation || 30 gnnot operating
SKUZO-G0860587
Standard15 GNIN OPERATION-30 GNNOT OPERATING,3 GN +/- 1 MM 10-150 HZ)5 CYCLES IN OPERATION-5 GN +/- 1 MM 10-150 HZ)5 CYCLES NOT OPERATING,EAC-ROHS-UL-CSA-REACH,IP40 EN/IEC 60529,UL 508-CSA C22.2 NO 14-EN/IEC 61810-1
Standard, StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 61810-1
StandardsCSA C22.2 No 14, CSA Certified, EAC, EN/IEC 61810-1, UL 508, UL Listed
Status Ledwith
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switching Voltage250VAC, 28VDC - Max
TerminationPlug-In
Test Levelslevel A group mounting
UNSPSC39122326
UPC, UPC Code785901572817
Utilisation Coefficient20 %
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Warranty18 months
Warranty DescriptionContractual Warranty:18 months
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomGalcoRPM32BD-SQD13.0713.071In StockSquare D13.07 @ Qty: 1+
thumbzoomZoroG086058713.6513.65198Schneider Electric0.1113.65 @ Qty: 1+
thumbzoomRadwellRPM32BD14.064.41012SCHNEIDER ELECTRIC SQUARE D14.0 @ Qty: 10+
thumbzoomTMERPM32BD15.2415.241In StockSCHNEIDER ELECTRIC15.24 @ Qty: 1+
us.rs-online.com7033506815.4315.43154Schneider Electric15.43 @ Qty: 1+
thumbzoommayerelectric.comSQDRPM32BD16.0616.061In StockSQUARE D0.118816.06 @ Qty: 1+
Graybar2507460016.497616.4976114Square D (Schneider Electric)16.4976 @ Qty: 1+
thumbzoomcrescentelectric.com10396617.6417.6414Schneider Electric17.64 @ Qty: 1+
thumbzoomNewark13M274719.0519.051In StockSCHNEIDER ELECTRIC19.05 @ Qty: 1+
RS Delivers179-731920.19620.196116Schneider Electric20.196 @ Qty: 1+
thumbzoomDigi-Key1661383520.9420.94110Schneider Electric20.94 @ Qty: 1+
thumbzoomblackhawksupply.comRPM32BD21.8121.811In StockSquare D21.81 @ Qty: 1+
thumbzoomsimsupply.comZO-G086058722.1222.12122Schneider Electric22.12 @ Qty: 1+
AmazonSCB007IAPQAE24.224.21In StockSchneider Electric24.2 @ Qty: 1+
thumbzoomsustainablesupply.comC281178724.4524.451In StockSchneider Electric0.1124.45 @ Qty: 1+
thumbzoombscsource.comRPM32BD26.5926.591In StockSquare D26.59 @ Qty: 1+
thumbzoomNational Supply Network6861844633.19152.67410In StockSquare D33.19 @ Qty: 10+
thumbzoomRaptor SuppliesAF6PXP35.095963535.09596351In StockSCHNEIDER ELECTRIC35.0959635 @ Qty: 1+
B007IAPQAE
Schneider Electric RPM32BD

Plug in Relay, 11 Pins, Square, 24Vdc

Plug in Relay, 11 Pins, Square, 24Vdczoom
