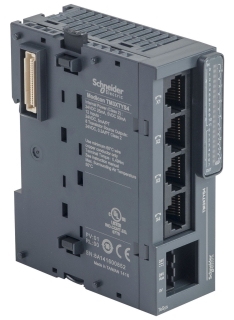

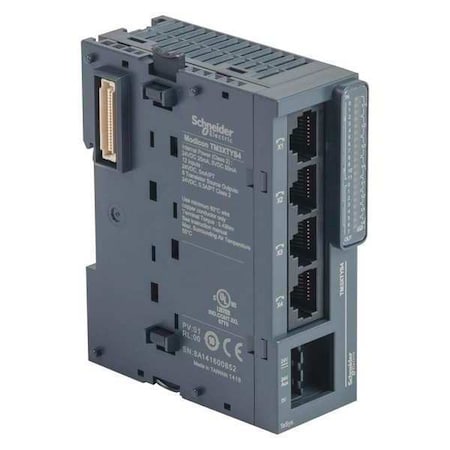

Square D/Telemecanique TM3XTYS4

B0145TFM7C

Square D Tm3Xtys4 Tm3-Tesys

Square D Tm3Xtys4 Tm3-Tesyszoom

Attributes

Key Value
Ambient Air Temperature.-10-35?C vertical insta.
ApplicationTeSys U
Approval AgencyCE, C-tick, cULus
BrandSchneider Electric
Catalog NumberTM3XTYS4
CategoryIndustrial Automation a.
Communication Port TypeRS485
ComponentAccessories
Connection Cables4 RJ45 CONNECTORS FOR C.
Country of OriginTW - Taiwan, Taiwan, Pr.
Depth85 mm
DescriptionPARALLEL INTERFACE MODU.
Detailed DescriptionInterface Module DIN Ra.
Digi-Key Part Number4008-TM3XTYS4-ND
Display3 LEDs green per channe.
ECCNEAR99
EnclosureIP20
Family NameModicon Controllers Fam.
Features-, Plate or Panel with .
For Use WithModicon Mfr. No.M221 PL.
For Use With/Related Pr.Modicon TM3 Series
Height3.54, 90 mm
Ingress ProtectionIP20
Input Current Limits5-5 mA per input
Insulationbetween the RJ45 connec.
IP RatingIP20
ItemExtension Module
Item TypeParallel Interface Modu.
Length3.35
Length UOMInch
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.TM3XTYS4
Manufacturer Standard L.5 Weeks
MarkingCE
MfrSchneider Electric
Module12 Input and 8 Output
MountingRail Plate
Mounting TypeDIN Rail
Number of Inputs12
Number of Inputs and Ty.12 - Analog
Number Of Output Channe.8
Number of Outputs8
Number of Outputs and T.8 - Analog
Operating Altitude0 to 6561.68 ft (0 to 2.
Operating TemperatureVERTICAL INSTALLATION :.
Output Signal24 V DC transistor outp.
Output Voltage24 V DC transistor outp.
PackageBox
Packaging1 per Package
PLC Input Voltage19.2 to 28.8 V
PLC Output Voltage24 Vdc
Power Required24V DC
Power Supply24 V DC external supply.
Product CertificationsCE || cULus || UKCA || .
Product Specific Applic.TeSys U
Product StatusActive
Product TypeExtension Module
Resetautomatic reset
Resistance To Fast Tran.1 kV inputEN/IEC 61000-.
Resistance To Magnetic .30 A/m 50/60 Hz EN/IEC .
SeriesModicon TM3 Series, Mod.
Shock Resistance15 gn 11 ms
Special Features3 x 2.5 mm? removable s.
StandardUL, CUL, CE
Sub BrandModicon M221;Modicon M2.
Sub ComponentParallel Interface Modu.
Termination StyleScrew Terminal
TypeInterface Module
UNSPSC32151705
UPC785901352556
UPC Code785901352556
Use WithProgrammable Logic Cont.
Vibration Resistance3.5 mm 5-8.4 Hz DIN rai.
Voltage - Supply24VDC
Weight-
Width30 mm, 1.18

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers806-7089133.1161In StockSchneider Electric133.116 @ 1
standardelectricsupply.com2339107164.01In StockSchneider Electric164.0 @ 1
thumbzoomZoroG0040209177.991In StockSchneider Electric0.51177.99 @ 1
rspsupply.comSCHNEIDER TM3XTYS4179.021In StockSchneider Electric179.02 @ 1
thumbzoomgordonelectricsupply.comTM3XTYS4186.591In Stock10SQUARE D186.59 @ 1
thumbzoomDigi-Key16612680195.441In StockSchneider Electric195.44 @ 1
thumbzoomcrescentelectric.com311220219.391In StockSchneider Electric219.39 @ 1
us.rs-online.com70596896238.211In StockSchneider Electric238.21 @ 1
thumbzoomNewark84X5918239.291In StockSCHNEIDER ELECTRIC239.29 @ 1
thumbzoomsustainablesupply.comC2926539246.861In StockSchneider Electric0.51246.86 @ 1
Graybar25666534253.0081In StockSquare D (Schneider Electric)253.008 @ 1
Grainger35ZW10254.01In Stock16SCHNEIDER ELECTRIC254.0 @ 1
