mpn:
brand:
manufacturer:
MPN:
Weight:
0.0946
Weight:
0.0946 LB
Preferred Price:
110.15
Price:
110.15
Min Simple Price:
60.192
Absolute Min Price:
85.47
Min Price:
85.47
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
jM2NTM:::XB4BA731327
sku:
jM2NTM::9X:XB4BA731327@y0
condition:
11
seller:
RS Delivers
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Action | Momentary |
| Actuator Type | Rectangular, Button, Flush |
| Ambient Air Temperature For Storage | -40-70?C |
| Bezel Material | chromium plated metal |
| Category | Switches |
| Circuit | 3PST-2NO/1NC |
| Color - Actuator/Cap | Red |
| Colour Of Marking | black marking when white caps || white marking when green, red or black caps |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Contacts Type And Composition | 1 NO + 1 NC + 1 NO |
| Country of Origin | 00 - Unknown |
| Current Rating (Amps) | 3A (AC), 220mA (DC) |
| Device Short Name | XB4 |
| ECCN | EAR99 |
| Electrical Life, Mechanical Life | 1,000,000 Cycles |
| Electrical Reliability | ? < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ? < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Features, Illumination Type, Color, Illumination Voltage (Nominal) | - |
| Head Material | Metal |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| IP Rating | 66, 69K |

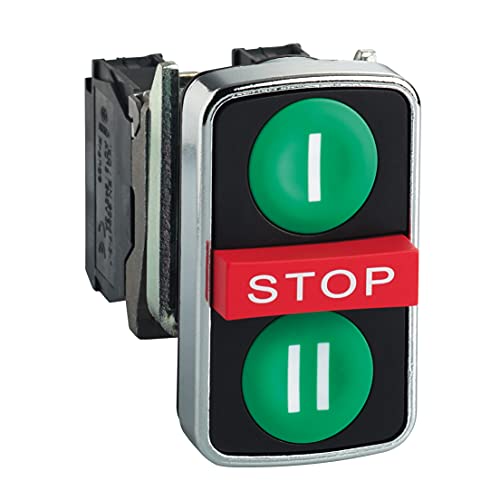

| Item, Product Type | Multihead Operators with Contacts |
| Legend | I/Stop/II |
| Legend/Background Color | White/Green, White/Red |
| Mfr | Schneider Electric |
| Mounting Diameter, Size | 22 mm |
| Mounting Type | Panel Mount, Front |
| NEMA Contact Rating Designation | A600/Q600 |
| NEMA Rating | 1, 12, 3, 4, 4X |
| Number of Heads | 3 |
| Operating Temperature | -25?C ~ 70?C |
| Package | Box |
| Panel Cutout Dimensions | Circular - 22.00mm Dia |
| Product Status | Active |
| Series | Harmony XB4 |
| Shape | Rectangular |
| Shape Of Screw Head | cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm |
| Standards | CE, CSA, RoHS, UL |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Type of Operator | (1) Extended Button, (2) Flush Buttons |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| RS Delivers | 724-9586 | 60.192 | 60.192 | 1 | In Stock | Schneider Electric | 60.192 @ Qty: 1+ | |||
 | Zoro | G4536804 | 86.99 | 86.99 | 1 | In Stock | Schneider Electric | 0.25 | 86.99 @ Qty: 1+ | |
 | Radwell | XB4BA731327 | 103.2 | 103.2 | 1 | In Stock | SCHNEIDER ELECTRIC | 103.2 @ Qty: 1+ | ||
 | gordonelectricsupply.com | XB4BA731327 | 104.59 | 104.59 | 1 | In Stock | 10 | SQUARE D | 104.59 @ Qty: 1+ | |
| Digi-Key | 16605721 | 124.04 | 124.04 | 1 | In Stock | Schneider Electric | 124.04 @ Qty: 1+ | |||
 | sustainablesupply.com | C1174436 | 127.0 | 127.0 | 1 | In Stock | Schneider Electric | 0.25 | 127.0 @ Qty: 1+ | |
 | Newark | 89T7917 | 130.13 | 130.13 | 1 | In Stock | SCHNEIDER ELECTRIC | 130.13 @ Qty: 1+ | ||
| us.rs-online.com | 72552360 | 151.32 | 151.32 | 1 | In Stock | Schneider Electric | 151.32 @ Qty: 1+ | |||
 | Raptor Supplies | AF7ZGM | 161.5799835 | 161.5799835 | 1 | In Stock | SCHNEIDER ELECTRIC | 161.5799835 @ Qty: 1+ | ||
| Graybar | 26514708 | 211.2768 | 211.2768 | 1 | In Stock | Square D (Schneider Electric) | 211.2768 @ Qty: 1+ |
