Schneider Electric XB5AA25

B0078S4NIC

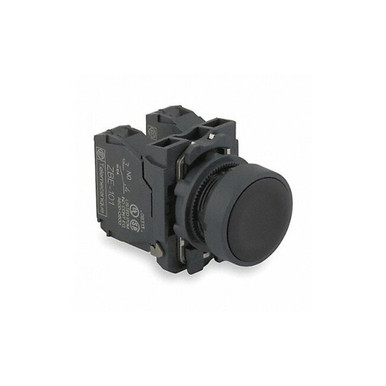

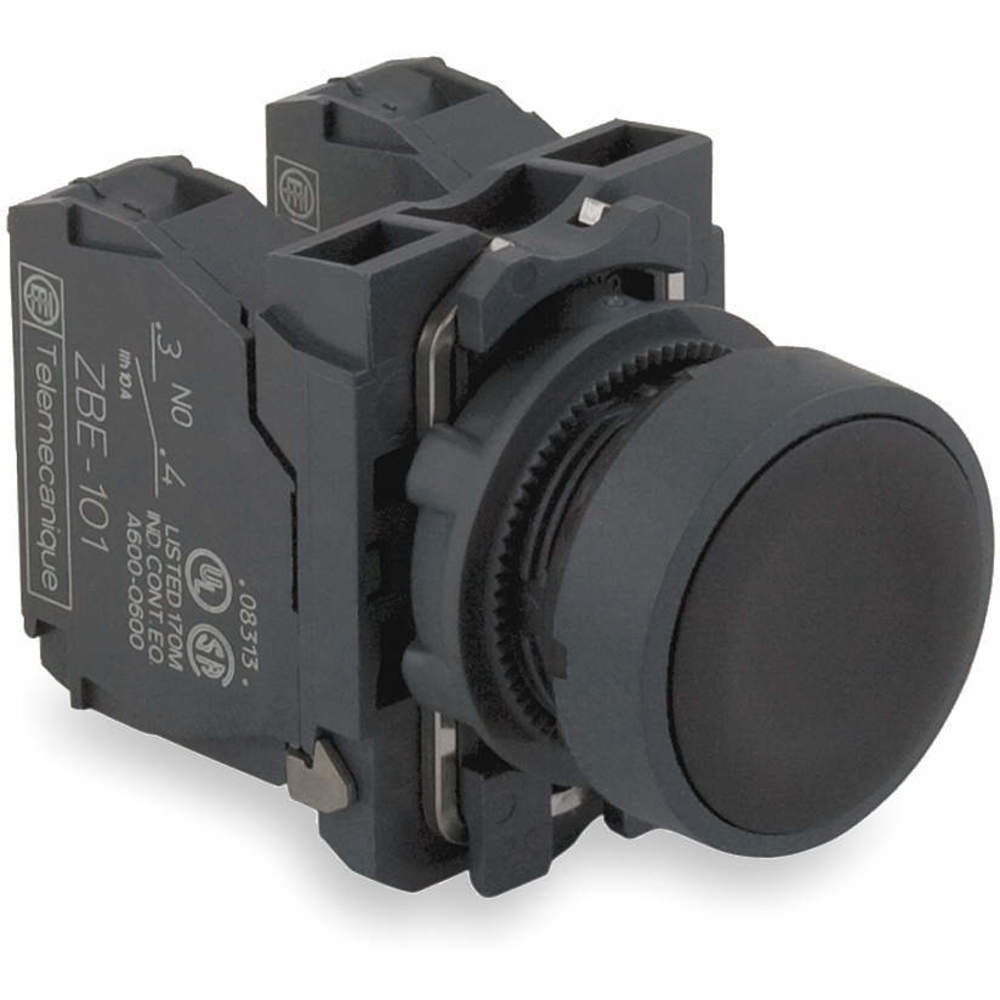

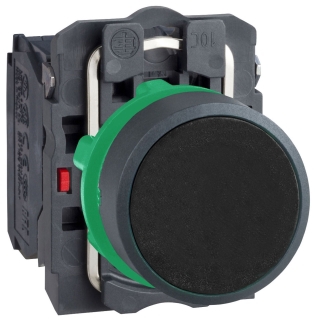

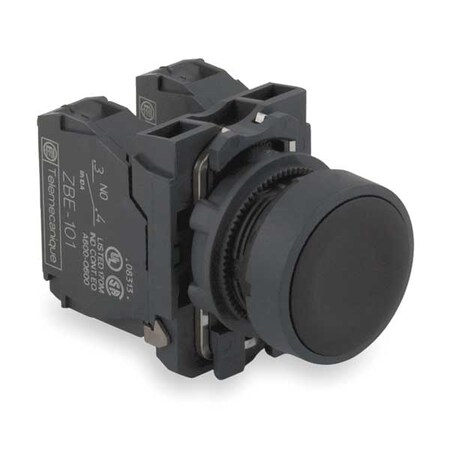

Non-Illum Push Button, 22mm, 1NO/1NC, Black

Non-Illum Push Button, 22mm, 1NO/1NC, Blackzoom

Attributes

Key Value
ActionMomentary Push, Slow-br.
Actuatorspring return;Black flu.
Actuator TypeMushroom
Amperage10A
Amperage Rating10
ApprovalsCSA, UL
Basic MaterialPlastic
BezelPlastic Round, Plastic
Bezel Materialplastic || dark grey pl.
BrandSquare D, Schneider Ele.
Catalog NumberXB5AA25
ColorBlack
ConnectionScrew clamp terminals,
Contact Configuration1 NO + 1 NC
Contact Form1NO/1NC
Contact Rating10A @ 600V AC, AC15 - D.
Contacts1NO, 1NC
Country of OriginFR - France, France
Current (A)3 A
Current Stock47
Depth52 mm
ECCNEAR99
EnclosureNEMA 4/4X/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Switches, XB5 .
Gross Weight0 lbs
Gtin00785901546375
Head MaterialPlastic
Height42 mm
IndicatorBlack
Insulation600 V 3)EN/IEC 60947-1
International ShippingNo
IP RatingIP69K, 65
ItemNon-Illuminated Push Bu.
Item NumberXB5AA25
Item TypePush-button
Lead TimeExpected to ship in 1-2.
LegendNo legend
Lens/Button ColorBlack
Lens/Button ShapeRound Flush
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberXB5AA25
MaterialPlastic;dark grey plast.
Mounting Diameter22 mm
Mounting Hole Size22
Mounting TypePanel
MpnXB5AA25
NEMA Contact Rating Des.A600/Q600
Nema RatingNEMA 1/2/4/4X/12/13
NEMA Rating1, 12, 13, 2, 3, 4, 4X
Net Weight0 lbs
Nominal Mounting Size22 mm
Number of Operators1
Operating Temperature-40-70 A Degrees C
OperationMomentary
Product SeriesXB5
Product TypeNon-Illuminated Push Bu.
SeriesXB5, Harmony XB5 Series
Size22MM ROUND, 22 mm
SKUZO-G2901026
Special FeaturesNON-ILLUMINATED
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, UL
Sub BrandXB5
SubCategoryElectrical
Terminal ConnectionPressure Plate
Terminal TypeScrew
Type of OperatorFlush Button
UNSPSC39122216
UPC785901546375
Upc785901546375
UPC Code785901546375
Voltage600V
Voltage Rating120 V
Warranty DescriptionContractual Warranty:18.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukXB5AA2523.8665961In StockSchneider23.866596 @ 1
RS Delivers178-55024.1441In StockSchneider Electric24.144 @ 1
thumbzoomsuperbreakers.comXB5AA2526.71In StockSquare D26.7 @ 1
thumbzoommostelectric.comXB5AA2537.517SQUARE D/TELEMECANIQUE37.5 @ 1
thumbzoomZoroG290102645.69169Schneider Electric0.0845.69 @ 1
thumbzoomgordonelectricsupply.comXB5AA2548.891In Stock10SQUARE D48.89 @ 1
thumbzoomGalcoXB5AA25-SQD50.71In StockSquare D50.7 @ 1
Newark20K462253.521In StockSCHNEIDER ELECTRIC53.52 @ 1
thumbzoomblackhawksupply.comXB5AA2554.551In StockSquare D54.55 @ 1
thumbzoomRadwellXB5AA2560.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE60.0 @ 1
thumbzoomsustainablesupply.comC118378662.631In StockSchneider Electric0.0862.63 @ 1
Graybar9980438262.721In StockSquare D (Schneider Electric)62.72 @ 1
thumbzoomsimsupply.comZO-G290102662.76147Schneider Electric62.76 @ 1
thumbzoomcrescentelectric.com8090970.071In StockSchneider Electric70.07 @ 1
thumbzoomNational Supply Network6967186570.461In StockSchneider Electric70.46 @ 1
us.rs-online.com7033209577.391In StockSchneider Electric77.39 @ 1
thumbzoomRaptor SuppliesAF9JZG93.64510351In StockSCHNEIDER ELECTRIC93.6451035 @ 1
