CAI - SCHNEIDER ELECTRIC XB5AA45

B07J5LMNYX

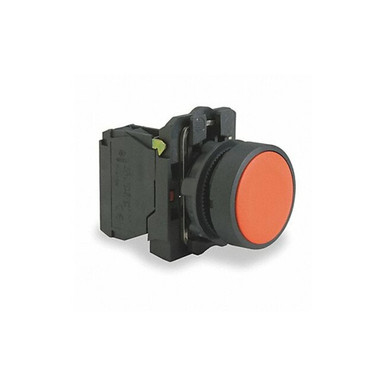

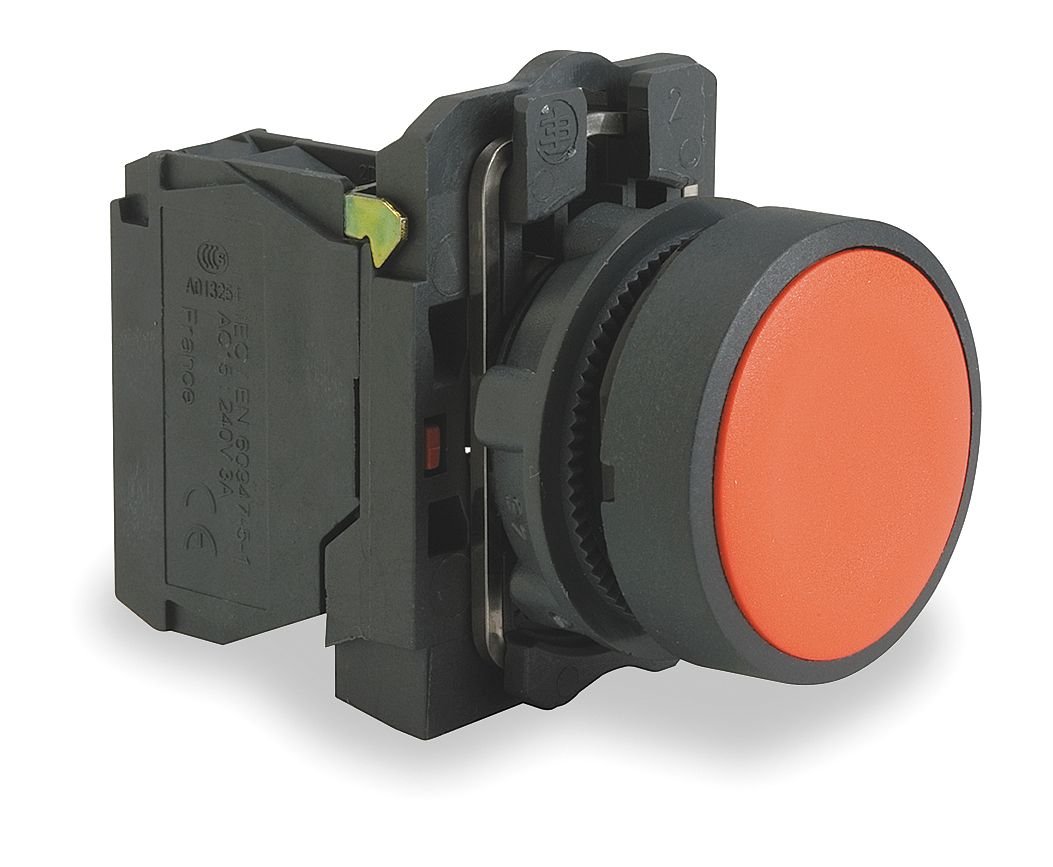

Schneider Electric Non-Illuminated Push Button, Type of Operator: Flush Button, Size: 22mm, Action: Momentary Push

Schneider Electric Non-Illuminated Push Button, Type of Operator: Flush Button, Size: 22mm, Action: Momentary Pushzoom

Attributes

Key Value
ActionMomentary Push, Slow-br.
ActuationMomentary
Actuatorspring return;Red flush.
Actuator TypeRound, Button, Flush
Amperage Rating10, 3A
Basic MaterialPlastic
BezelPlastic
Bezel Materialplastic || dark grey pl.
BrandSchneider Electric
Catalog NumberXB5AA45
CategorySwitches
CircuitDPST-NO/NC
ColorRed
Color - Actuator/CapRed
ConnectionScrew clamp terminals,
Connection TypeScrew Clamp Terminals, .
Contact Configuration1 NO + 1 NC
Contact Form1NO/1NC
Contact Operation1 NO + 1 NC
Contact Rating10A @ 600V AC, AC15 - D.
Country of OriginFR - France, France
Current Rating (Amps)6A (AC), 550mA (DC)
Current Stock47
Depth52 mm
DescriptionHARMONY XB5, PUSH BUTTO.
Detailed DescriptionPushbutton Switch DPST-.
Diameter22 mm
Digi-Key Part Number4008-XB5AA45-ND
ECCNEAR99
Electrical Life1,000,000 Cycles
EnclosureNEMA 4/4X/13
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
Features-
Head MaterialPlastic
Head TypeStandard
Height42 mm
IEC RatingIP66 IEC 60529 || IP67 .
Illumination Type, Color-
Illumination Voltage (N.-
IndicatorRed
Ingress ProtectionIP66/IP67/IP69/IP69K - .
Insulation600 V 3)EN/IEC 60947-1
International ShippingNo
IP Rating65
ItemNon-Illuminated Push Bu.
Item TypePush-button
Knob StyleRed Flush, Unmarked
Lead TimeExpected to ship in 1-2.
LegendNo legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB5AA45
Manufacturer Standard L.4 Weeks
MaterialPlastic;dark grey plast.
Mechanical Life10,000,000 Cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting TypePanel Mount, Front
MpnXB5AA45
NEMA Contact Rating Des.A600/Q600
NEMA Rating1, 12, 13, 2, 3, 4, 4X
Number of Operators1
Operating Temperature-40-70 A Degrees C, -40.
Operator ShapeRound
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Product StatusActive
SeriesHarmony XB5, Harmony XB.
Short-Circuit Protection10 A cartridge fuse gG .
Size2.05, 22 mm
SKUZO-G0637463
Special FeaturesNON-ILLUMINATED
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, UL
Sub BrandXB5
SubCategoryElectrical
Switch FunctionOn-Off, Off-On
Terminal ConnectionPressure Plate
Termination StyleScrew Terminal
TypeStandard
Type of OperatorFlush Button
UNSPSC39122216
UPC785901498179
UPC Code785901498179
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Warranty DescriptionContractual Warranty:18.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukXB5AA4523.240881In StockSchneider23.24088 @ 1
thumbzoommostelectric.comXB5AA4537.513SQUARE D/TELEMECANIQUE37.5 @ 1
standardelectricsupply.com223488144.361In StockSchneider Electric44.36 @ 1
thumbzoomZoroG063746346.15179Schneider Electric0.0846.15 @ 1
Newark13M355353.521In StockSCHNEIDER ELECTRIC53.52 @ 1
Mouser996-XB5AA4553.9912Schneider Electric53.99 @ 1
thumbzoomDigi-Key1661382055.0113Schneider Electric55.01 @ 1
thumbzoomAmazonSCB0078QXT0258.21In StockSchneider Electric58.2 @ 1
thumbzoomRadwellXB5AA4560.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE60.0 @ 1
thumbzoomsustainablesupply.comC118379162.631In StockSchneider Electric0.0862.63 @ 1
thumbzoomsimsupply.comZO-G063746363.31147Schneider Electric63.31 @ 1
Graybar2507036365.28481In StockSquare D (Schneider Electric)65.2848 @ 1
us.rs-online.com7033718868.39167Schneider Electric68.39 @ 1
thumbzoomcrescentelectric.com39765570.071In StockSchneider Electric70.07 @ 1
thumbzoomRaptor SuppliesAF9JZM93.64510351In StockSCHNEIDER ELECTRIC93.6451035 @ 1
