CAI - SCHNEIDER ELECTRIC XB5AVG4

B07J2X1SS1

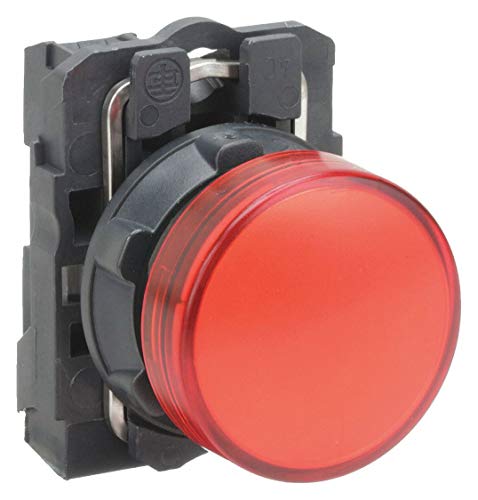

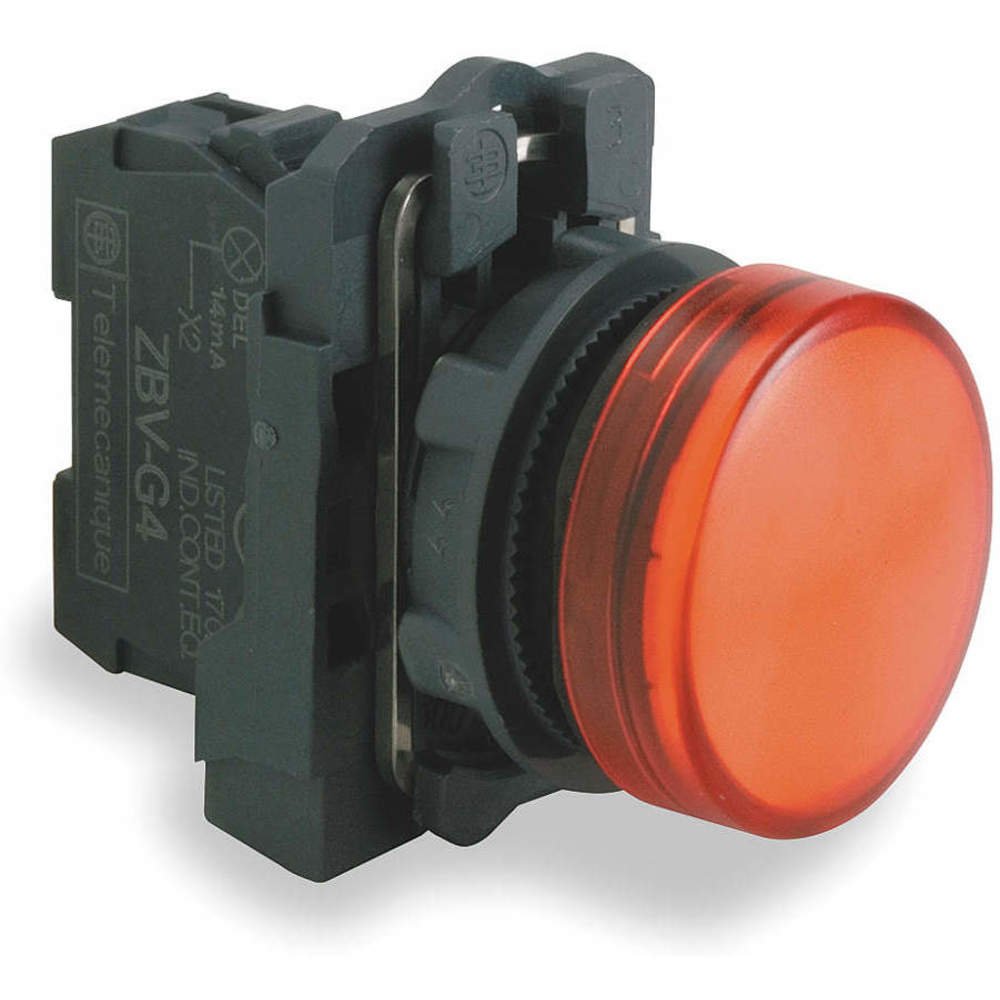

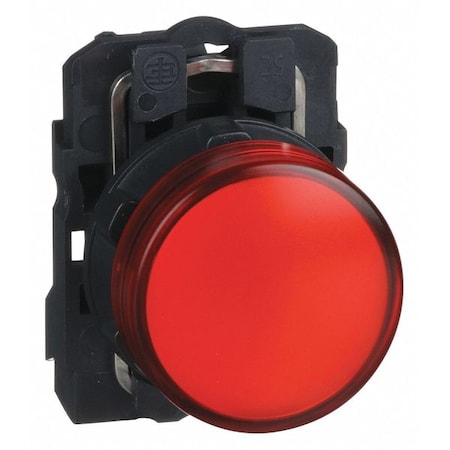

Schneider Electric Pilot Light Complete, 22mm, 110 to 120VAC Voltage, Lamp Type: LED, Terminal Connection: Screw Clamp

Schneider Electric Pilot Light Complete, 22mm, 110 to 120VAC Voltage, Lamp Type: LED, Terminal Connection: Screw Clampzoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.4 kV IEC 60947-1
[Us] Rated Supply Volta.110...120 V AC 50/60 Hz
Ambient Air Temperature.-40-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage Rating14
ApplicationSIGNALLING
ApprovalsCSA, UL
Average Life100000 hr
Basic MaterialPlastic
BezelDark Grey Plastic
Bezel MaterialDark Grey Plastic
Body MaterialPlastic
BrandSchneider Electric
Bulb Baseintegral LED
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.Red
Catalog NumberXB5AVG4
CategoryOptoelectronics
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
ColorRed
Color FamilyRed
ColourRed
Compatibility CodeXB5
ConnectionScrew clamp terminals,
Contact Form(X1-X2)PL
Country of OriginFR - France, France
Current14mA
Current Consumption14 mA
Depth54 mm
DescriptionHARMONY, 22MM PILOT LIG.
Detailed DescriptionLED Panel Indicator 110.
Device Presentationcomplete product
Device Short NameXB5
Digi-Key Part Number4008-XB5AVG4-ND
ECCNEAR99
Electromagnetic Compati.8 kV (in free air (in i.
Electromagnetic Emissionclass B IEC 55011
Environmental ConditionsNEMA 4/4X/13
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Family NameHarmony XB4 / XB5 Family
Family SeriesSquare D Switches, Harm.
Features-
FinishBLACK PLASTIC
Fixing Collar MaterialPlastic
Gcr BridgeXB5AVCUST04
Gross Weight0.1 lbs
GTIN00785901384052, 0338911.
Head Typestandard
Height42 mm
Ik Degree Of ProtectionIK05 IEC 50102
IlluminationIlluminated
Illumination ColorRed
Important MessageA change in appearance .
Ingress ProtectionIP66, IP67, IP69, IP69K.
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 .
IP Rating66, IP66
ItemPilot Light Complete
Item NumberXB5AVG4
Item Typepilot light
Lamp Color-
Lamp Module TypeFull Voltage
Lamp TypeLed
Length54 mm
Lens ColorRed
Lens ShapeFlat
Lens Size30.00mm Dia
Lens StyleRound with Convex Top
Lens Transparency-
Lens/Button ColorRed
Light Sourceuniversal LED
Light Source ColourRed
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number582656
Manufacturer Product Nu.XB5AVG4
Manufacturer Standard L.5 Weeks
Mercury FreeYes
MfrSchneider Electric
Millicandela Rating-
MountingPanel Mount
Mounting Diameter22 mm
Mounting Hole Size0.87 in ; 22 mm
Nema Degree Of Protecti.NEMA 13 || NEMA 4X
NEMA Rating13, 4, 4X, NEMA 4X, NEM.
Net Weight0.0624 lbs, 0.038 kg
Nominal Mounting Size22 mm
Operating Temperature-40-70 A Degrees C
Operator Additional Inf.with plain lens
Operator Size (mm)22 mm
Overvoltage Categoryclass II IEC 60536
PackageBox
Panel Cutout Dimensions0.87" (22.00mm)
Panel Cutout ShapeRound
Product CertificationsUL Listed || CSA
Product Or Component Ty.pilot light
Product SeriesHarmony XB5
Product StatusActive
Product TypePilot Light Complete
Protective TreatmentTH
Range Of ProductHarmony XB5
RatingsAC
Reach RegulationReference contains Subs.
Resistance To Electroma.10 V/m IEC 61000-4-3
Resistance To Electrost.6 kV on contact (on met.
Resistance To Fast Tran.2 kV IEC 61000-4-4
Resistance To High Pres.7000000 Pa 55 ?C 0.1 m
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.1
SeriesHarmony XB5, Harmony XB.
Service Life100000 h at rated volta.
ShapeRound
Shape Of Signaling Unit.Round
Shock Resistance50 gn 18 ms) half sine .
Signalling Typesteady
Size22 mm, 2.13
Special FeaturesIP67-IP66 CONFORMING TO.
StandardUL LISTED, CSA, CE
StandardsUL E164353 CCN NKCR - C.
Sub BrandXB5
Supply Voltage110-120 VAC
Supply Voltage Limits100-132 V AC
Surge Withstand1 kV IEC 61000-4-5
Sustainable Offer StatusGreen Premium product
Terminal ConnectionScrew Clamp
Terminal TypeScrew
Terminals Description I.(X1-X2)PL
TerminationScrew
Termination StyleScrew Terminal
TypeSteady Signal, Led
UNSPSC39121534
UPC785901384052
UPC Code785901384052
Vibration Resistance5 gn 12-500 Hz)IEC 6006.
Viewing Angle-
Voltage110 to 120V AC, 110V ~ .
Voltage Rating120 V, 110...120 V AC 5.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
WeeeThe product must be dis.
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukXB5AVG429.35278451In StockSchneider29.3527845 @ 1
RS Delivers609-628729.64120Schneider Electric29.64 @ 1
thumbzoommostelectric.comXB5AVG448.211In StockSQUARE D/TELEMECANIQUE48.21 @ 1
thumbzoomNewark80C659655.641In StockSCHNEIDER ELECTRIC55.64 @ 1
thumbzoomZoroG139957156.99115Schneider Electric0.156.99 @ 1
us.rs-online.com7033668058.4117Schneider Electric58.41 @ 1
thumbzoomgordonelectricsupply.comXB5AVG463.091In Stock10SQUARE D63.09 @ 1
thumbzoomblackhawksupply.comXB5AVG467.381In StockSquare D67.38 @ 1
thumbzoommayerelectric.comSQDXB5AVG469.961In StockSQUARE D0.083669.96 @ 1
thumbzoomGalcoXB5AVG4-SQD71.511In StockSquare D0.171.51 @ 1
Grainger6HL8271.6511160SCHNEIDER ELECTRIC71.65 @ 1
thumbzoomDigi-Key1661352174.411In StockSchneider Electric74.41 @ 1
AmazonTPB0078RIE4W74.91In Stock15Schneider Electric74.9 @ 1
thumbzoomRadwellXB5AVG475.013SCHNEIDER ELECTRIC TELEMECANIQUE75.0 @ 1
grainger.caTLQXB5AVG476.978984361In StockSCHNEIDER ELECTRIC0.176.97898436 @ 1
Graybar9953452377.459212Square D (Schneider Electric)77.4592 @ 1
thumbzoomNational Supply Network6953598785.241In StockSchneider Electric85.24 @ 1
thumbzoommidwestapplianceparts.comXB5AVG4-SQ-P85.631In StockSquared85.63 @ 1
thumbzoomcrescentelectric.com3787590.09154Schneider Electric90.09 @ 1
thumbzoomRaptor SuppliesAG7EUH106.91922151In StockSCHNEIDER ELECTRIC106.9192215 @ 1
