CAI - SCHNEIDER ELECTRIC XB5AW3565

B00819QZBK

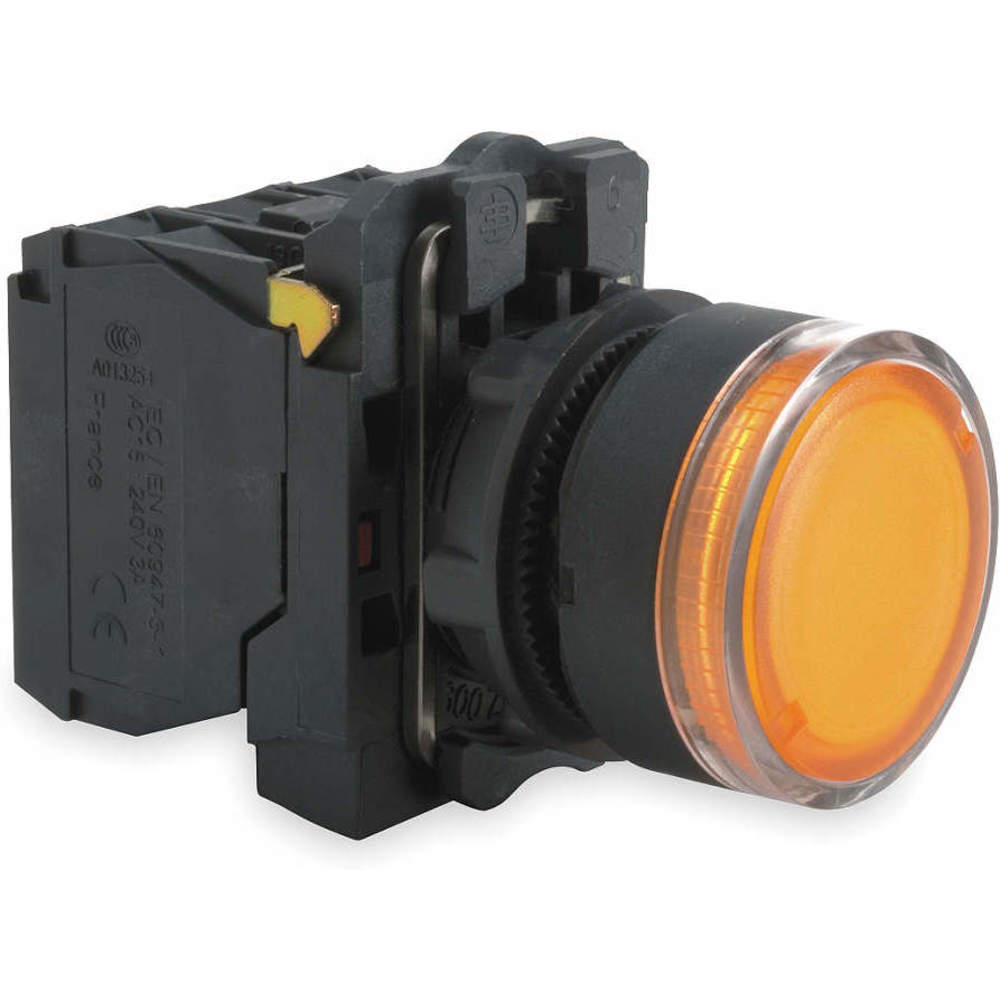

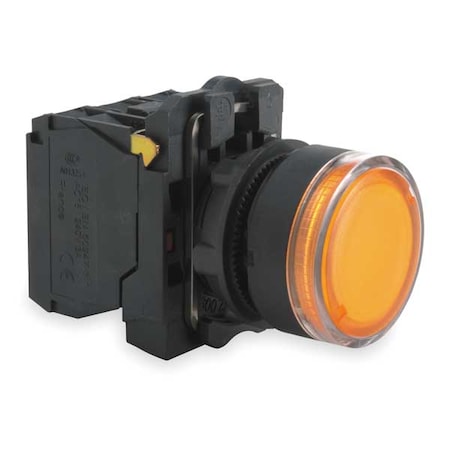

Schneider Electric Illuminated Push Button 22mm Orange

Schneider Electric Illuminated Push Button 22mm Orangezoom

Attributes

Key Value
ActionSlow-break, Maintained .
Actuatorspring return;Orange fl.
Actuator TypeRound, Button, Flush
Basic MaterialPlastic
BezelDouble-insulated Plastic
BrandSchneider Electric
Catalog NumberXB5AW3565
CategorySwitches
CircuitDPST-NO/NC
ColorOrange
Color - Actuator/CapOrange
ConnectionScrew clamp terminals,
Contact Configuration1 NO + 1 NC
Contact Form1NO/1NC
Contact Rating10A @ 600V AC, AC15 - D.
Country of OriginCzech Republic
Country of Origin (subj.Czechia
Current Rating (Amps)6A (AC), 550mA (DC)
Electrical Life1,000,000 Cycles
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Features-
Head MaterialPlastic
Illumination Type, ColorLED, Orange
Illumination Voltage (N.250 VAC
IndicatorBA 9S,BULB NOT INCLUDED
Ingress ProtectionIP66 - Dust Tight, Wate.
Insulation600 V 3)EN/IEC 60947-1
IP Rating66
ItemIlluminated Push Button
Item TypeIlluminated push-button
Lamp Module TypeFull Voltage
Lamp Module Voltage250V DC
Lamp TypeLed
Lamp Voltage250V DC
Made in USANo
ManufacturerSchneider Electric
MaterialDark grey plastic
Mechanical Life10,000,000 Cycles
MfrSchneider Electric
Mounting TypePanel Mount, Front
NEMA Rating13, 4, 4X
Operating Temperature-40?C ~ 70?C, -40-55 A .
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Product StatusActive
Product TypeIlluminated Push Button
SeriesHarmony XB5
Size22 mm, 22 MM,30 MM,42 M.
Special FeaturesWITH PLAIN LENS
Standard1000000 CYCLES, AC-15, .
StandardsCSA C22-2 No 14, EN/IEC.
Sub BrandXB5
Switch FunctionOn-Off, Off-On
Terminal ConnectionScrew Clamp
Termination StyleScrew Terminal
TypeStandard, Illuminated
Type of OperatorFlush Button
UPC785901384632
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comXB5AW356586.591In Stock10SQUARE D86.59 @ 1
Newark80C662389.581In StockSCHNEIDER ELECTRIC89.58 @ 1
thumbzoomRadwellXB5AW3565100.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE100.0 @ 1
Digi-Key16605481102.331In StockSchneider Electric102.33 @ 1
Graybar22088201103.74561In StockSquare D (Schneider Electric)103.7456 @ 1
thumbzoomZoroG1809263108.791In StockSchneider Electric0.1108.79 @ 1
thumbzoomcrescentelectric.com1296157123.881In StockSchneider Electric123.88 @ 1
thumbzoomRaptor SuppliesAG7EUN158.3061481In StockSCHNEIDER ELECTRIC158.306148 @ 1
