XB5AW36G5

B00HKIGA6I

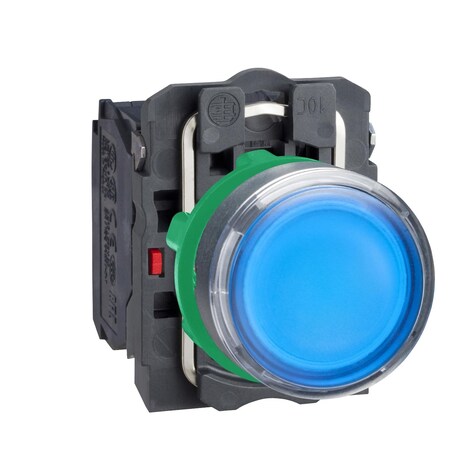

SCHNEIDER ELECTRIC XB5AW36G5 PUSHBUTTON LED 120VAC 22MM XB5B +OPTIONS

SCHNEIDER ELECTRIC XB5AW36G5 PUSHBUTTON LED 120VAC 22MM XB5B +OPTIONSzoom

Attributes

Key Value
[Ith] Conventional Free.10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Wi.6 kV EN/IEC 60947-1
ActionSlow-break
ActuationSpring Return
Actuatorspring return;Blue flus.
Actuator TypeRound, Button, Flush
Bezel Materialdark grey plastic
BrandSchneider Electric
Cap/Operator Or Lens Co.Blue
Catalog NumberXB5AW36G5
CategorySwitches
CircuitDPST-NO/NC
ColorBlue
Color - Actuator/CapBlue
ConnectionScrew clamp terminals,
Contact Configuration1 NO + 1 NC
Contact RatingAC15 - DC13
Country of OriginFrance
Current Rating (Amps)6A (AC), 550mA (DC)
Depth57 mm
DescriptionHARMONY XB5, ILLUMINATE.
Detailed DescriptionPushbutton Switch DPST-.
Digi-Key Part Number4008-XB5AW36G5-ND
Electrical Life1,000,000 Cycles
Electrical Reliability? < 10exp(-6) 5 V, 1 mA.
Electromagnetic Emissionclass B IEC 55011
EnclosureNEMA 13-NEMA 4X
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Family NameHarmony XB4 / XB5 Family
Features-
Gross Weight0 lbs
Height42 mm
Ik Degree Of ProtectionIK05 IEC 50102
Illumination Type, ColorLED, Blue
Illumination Voltage (N.110 ~ 220 VAC
IndicatorINTEGRAL LED,PROTECTED .
Ingress ProtectionIP66/IP67/IP69/IP69K - .
Insulation600 V 3)EN/IEC 60947-1
ItemIlluminated push button.
Item Typeilluminated push-button
Light Sourceuniversal LED
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.XB5AW36G5
Manufacturer Standard L.1 Weeks
Materialdark grey plastic
Mechanical Life10,000,000 Cycles
MfrSchneider Electric
Mounting Diameter22 mm
Mounting TypePanel Mount, Front
Operating Temperature-40-70 A Degrees C, -40.
Overvoltage Categoryclass II IEC 60536
PackageBox
Panel Cutout DimensionsCircular - 22.00mm Dia
Positive Openingwith EN/IEC 60947-5-1 a.
Product Or Component Ty.illuminated push-button
Product StatusActive
Protective TreatmentTH
Resistance To Electrost.6 kV on contact (on met.
Resistance To High Pres.7000000 Pa 55?C 0.1 m
SeriesHarmony XB5, Harmony XB.
Shape Of Screw Headcross Philips no 1 || c.
Shape Of Signaling Unit.round
Special FeaturesWITH PLAIN LENS
Standard1000000 CYCLES, AC-15, .
StandardsEN/IEC 60947-5-1 || CSA.
Sub BrandXB5
Switch FunctionOn-Off, Off-On
Terminals Description I.(13-14)NO || (21-22)NC
Termination StyleScrew Terminal
Tightening Torque0.8-1.2 N.m EN 60947-1
TypeStandard, Illuminated
UPC785901384786
UPC Code785901384786
Voltage Rating110...120 V AC 50/60 Hz
Voltage Rating - AC120 V
Voltage Rating - DC125 V
Warranty DescriptionContractual Warranty:18.
Width30 mm
