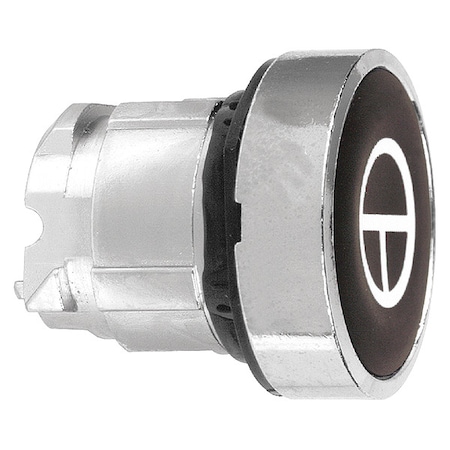

Square D ZB4BA245

Square D ZB4BA245

mpn:
ZB4BA245
brand:
SCHNEIDER ELECTRIC
manufacturer:
SCHNEIDER ELECTRIC
MPN:
ZB4BA245
Weight:
0.0638
Weight:
0.42 LB
Preferred Price:
17.5
Price:
17.5
Min Simple Price:
8.75
Absolute Min Price:
13.04
Min Price:
13.04
Dimensions:
[3.0, 2.0, 2.0]
qty:
21
simpleSku:
DY0NDY:::ZB4BA245
sku:
DY0NDY::YO:ZB4BA245@y0
condition:
11
seller:
TME
amzMan:
square d
HazMat:
False
DropShip:
False

Attributes

Key ^Value
(Select First, Then Apply Filters) Compatible SeriesSchneider, Harmony XB4
Action, TypeMomentary
Action, Type Of OperatorSpring Return
Actuatorspring return;Black flush, T white)
Actuator colour, Color, Indicatorblack
Actuator TypePushbutton, Round
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
Ambient Air Temperature For Storage-40-70?C
Application, Item, Product Type, Type of switchpush-button
Basic Material, Head MaterialMetal
Bezel Material, MaterialChromium Plated Metal
Brand, Manufacturer, MfrSCHNEIDER ELECTRIC
Button marking, LegendT
Button shapeflat
Cad Overall Depth28 mm
Cad Overall Height, Cad Overall Width29 mm
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog Number, Manufacturer Product NumberZB4BA245
CategorySwitches
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Country of OriginFR - France, France
DescriptionHEAD FOR NON ILLUMINATED PUSH BU
Detailed DescriptionConfigurable Switch Body Pushbutton, Round Non-Illuminated
Device Presentationbasic element
Device Short Name, Sub BrandZB4
Digi-Key Part Number4008-ZB4BA245-ND
ECCNEAR99
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
EnclosureNEMA 13-NEMA 4X
Environmental DisclosureENVPEP1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Features1000000 Cycles, Green Premium Product, Mercury Free, Pro Active Compliance
Head Typestandard
Ik Degree Of ProtectionIK06 IEC 50102
IlluminationNon-Illuminated, ZBVB,
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 || IP69 || IP69K
IP ratingIP66
IP Rating66, 67, 69, 69K
Item Type, Product Or Component Typehead for non-illuminated push-button
Legend/Background ColorWhite/Black
Made in USANo
Manufacturer series, Range Of Product, SeriesHarmony XB4
Manufacturer Standard Lead Time3 Weeks
Mechanical Durability10000000 cycles
Mercury Free, Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal FreeYes
Mounting Diameter, Size22 mm
Mounting hole diameter?22mm
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
NEMA Rating13, 4X
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-70 A Degrees C
Operator Profileblack flush, T white)
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Product CertificationsGL || LROS (Lloyds register of shipping) || CSA || BV || DNV || UL Listed
Product StatusActive
Protective TreatmentTH
Reach RegulationFree of Substances of Very High Concern above the threshold
Related itemsZB4BZ009,
RequiresContact Block(s)
Sale Per Indivisible Quantity, Stable positions number1
SeriesHarmony
Shape Of Signaling Unit Headround
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Size0.87
Special FeaturesCHROMIUM PLATED METAL,HEAD FOR NON-ILLUMINATED PUSH-BUTTON
Standard30 GN 18 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27-50 GN 11 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27,5 GN 2-500 HZ)IEC 60068-2-6,GL-LROS (LLOYDS REGISTER OF SHIPPING)-CSA-BV-DNV-UL LISTED-RINA,IK06 IEC 50102,IP66 IEC 60529-IP67-IP69-IP69K,JIS C8201-5-1-EN/IEC 60947-5-5-UL 508-CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60947-1-EN/IEC 60947-5-4-JIS C8201-1
StandardsJIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1, BV, CSA C22.2 No 14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, JIS C8201-1, JIS C8201-5-1, LROS (Lloyds register of shipping), RINA, UL 508
Sustainable Offer StatusGreen Premium product
Switch standard22mm
Switches featureswith symbol
Type of OperatorFlush Button
UNSPSC39122216
UPC785901712497
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Warranty18 months
Warranty DescriptionContractual Warranty:18 months

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomTMEZB4BA2458.758.751In StockSCHNEIDER ELECTRIC8.75 @ Qty: 1+
Graybar2507070711.70411.7041In StockSquare D (Schneider Electric)11.704 @ Qty: 1+
thumbzoomZoroG346002213.7913.791In StockSchneider Electric0.0613.79 @ Qty: 1+
thumbzoomRadwellZB4BA24514.9314.931In StockSCHNEIDER ELECTRIC14.93 @ Qty: 1+
thumbzoommayerelectric.comSQDZB4BA24516.2816.281In StockSQUARE D16.28 @ Qty: 1+
thumbzoomgordonelectricsupply.comZB4BA24516.2916.291In Stock10SQUARE D16.29 @ Qty: 1+
thumbzoomDigi-Key1661346020.9320.931In StockSchneider Electric20.93 @ Qty: 1+
thumbzoomcrescentelectric.com580421.6921.6912Schneider Electric21.69 @ Qty: 1+
Newark20K492321.7121.711In StockSCHNEIDER ELECTRIC21.71 @ Qty: 1+
us.rs-online.com7255239521.8121.811In StockSchneider Electric21.81 @ Qty: 1+
B00CONLCYO
Square D ZB4BA245

Square D Zb4Ba245 Blk Flsh Pb Mrkd W/Jog

Square D Zb4Ba245 Blk Flsh Pb Mrkd W/Jogzoom
