mpn:
brand:
manufacturer:
MPN:
Description:

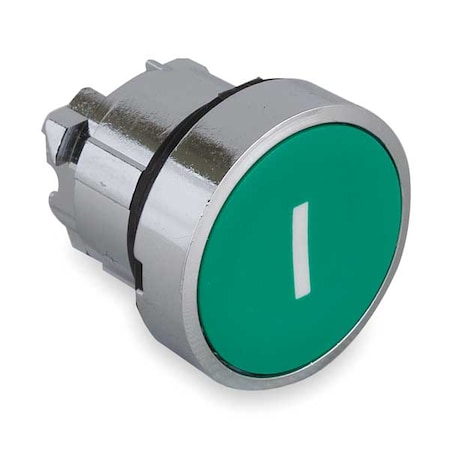

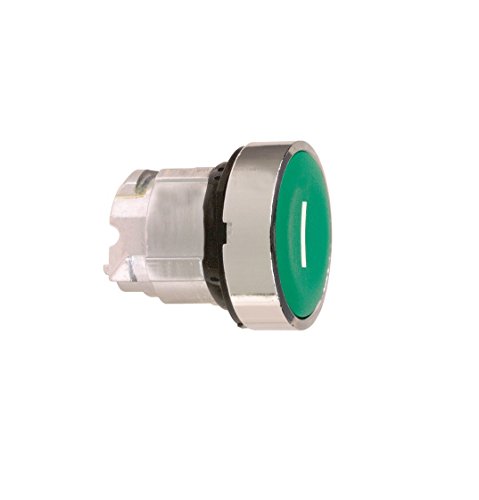

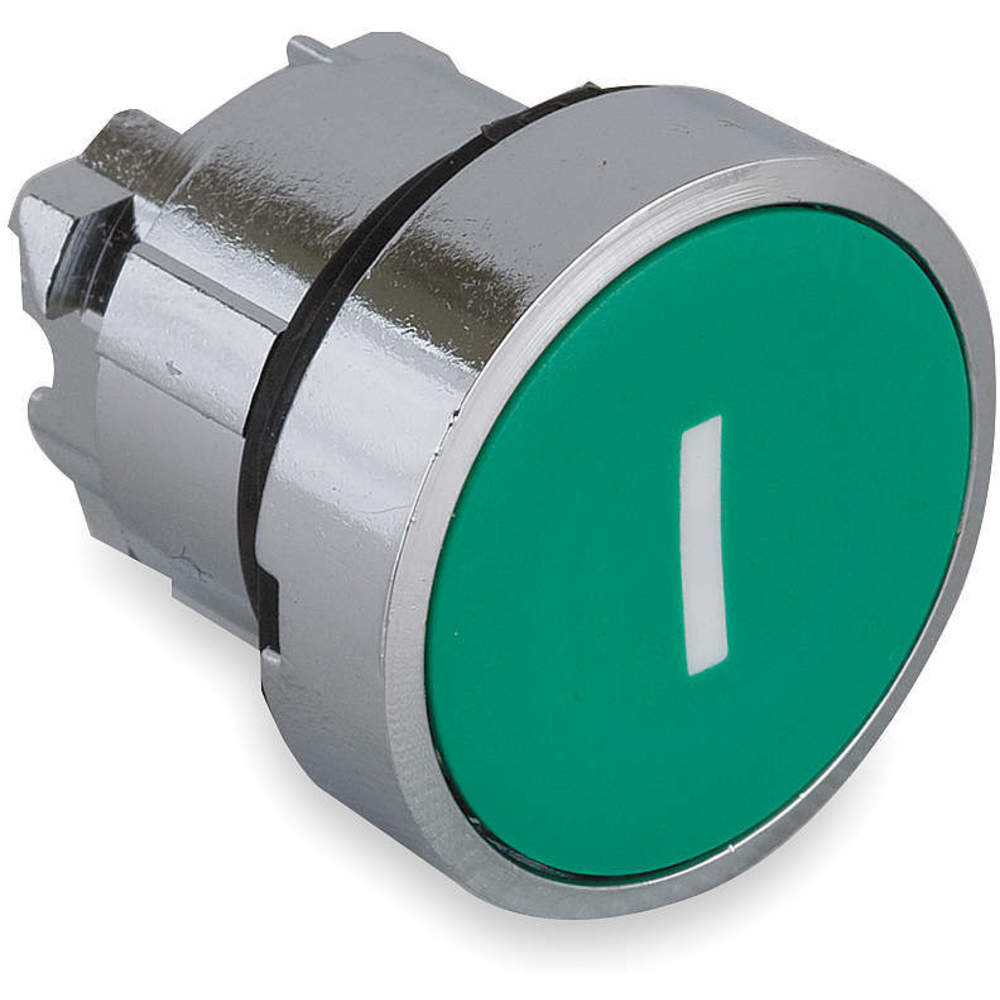

Green Push Button Head, Spring Return, 22mm Cutout, Electric XB4 Series
Weight:
0.08
Weight:
0.06 LB
Preferred Price:
17.32
Price:
17.32
Min Simple Price:
8.65
Absolute Min Price:
12.91
Min Price:
12.91
Dimensions:
[6.0, 4.0, 1.0]
qty:
21
simpleSku:
DA4NjE:::ZB4BA331
sku:
DA4NjE::84:ZB4BA331@y0
condition:
11
seller:
TME
amzMan:
schneider electric
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| (Select First, Then Apply Filters) Compatible Series | Schneider, Harmony XB4 |
| Action | Momentary Push |
| Action, Actuation | Spring Return |
| Actuator | spring return;Green flush, I white) |
| Actuator Type | Pushbutton, Round, Mushroom |
| Ambient Air Temperature For Operation | -40-70?C |
| Application | PUSH-BUTTON |
| Basic Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Brand, Manufacturer, Mfr | Schneider Electric |
| Cad Overall Depth | 28 mm |
| Cad Overall Height, Cad Overall Width | 29 mm |
| Catalog Number, Item Number, Manufacturer Product Number | ZB4BA331 |
| Category | Switches |
| Color, Indicator | Green |
| Country of Origin | FR - France, France |
| Description | HARMONY XB4, PUSH BUTTON HEAD, M |
| Detailed Description | Configurable Switch Body Pushbutton, Round Non-Illuminated |
| Digi-Key Part Number | 4008-ZB4BA331-ND |
| ECCN | EAR99 |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Enclosure | NEMA 13-NEMA 4X |
| Environmental Conditions | IP 65 |
| Family Name | Harmony XB4 Family |
| Family Series | Square D Miscellaneous |
| Gross Weight, Net Weight | 0 lbs |
| GTIN | 03389110887518 |
| Head Material | Aluminum-Zinc Alloy |
| Head Type | standard |
| Illumination | Non-Illuminated |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| IP Rating | 66, IP66 |
| Item Type | Head for non-illuminated push-button |
| Item, Product Type | Push Button operator |
| Legend | I |
| Legend/Background Color | White/Green |
| Made in USA | No |
| Manufacturer | Square D |
| Manufacturer Standard Lead Time | 3 Weeks |
| Material | Chromium plated metal |
| Mounting Diameter, Size | 22 mm |
| Mounting Hole Size | 22 |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Operators | 1 |
| Operating Temperature | -40-70 A Degrees C |
| Operation, Type | Momentary |
| Package | Box |
| Panel Cutout Dimensions | 22mm (Round) |
| Primary Type | Pushbutton |
| Product Status | Active |
| Requires | Contact Block(s) |
| Series | Harmony XB4, Harmony, ZB4 Series |
| Shape Of Signaling Unit Head | round |
| Size | 0.87 |
| Special Features | CHROMIUM PLATED METAL,HEAD FOR NON-ILLUMINATED PUSH-BUTTON |
| Standard | 30 GN 18 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27-50 GN 11 MS) HALF SINE WAVE ACCELERATION IEC 60068-2-27,5 GN 2-500 HZ)IEC 60068-2-6,IK06 IEC 50102,IP66 IEC 60529-IP67-IP69-IP69K,RINA-UL LISTED-CSA-GL-BV-DNV-LROS (LLOYDS REGISTER OF SHIPPING),UL 508-EN/IEC 60947-5-5-EN/IEC 60947-5-1-CSA C22.2 NO 14-JIS C8201-5-1-EN/IEC 60947-5-4-EN/IEC 60947-1-JIS C8201-1 |
| Standards | CE, CSA, RoHS, UL |
| Sub Brand | ZB4 |
| Termination | Screw |
| Type of Operator | Flush Button |
| UNSPSC | 39122216 |
| UPC, UPC Code | 785901380238 |
| Warranty Description | Contractual Warranty:18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | TME | ZB4BA331 | 8.65 | 8.65 | 1 | 9 | SCHNEIDER ELECTRIC | 8.65 @ Qty: 1+ | ||
 | kempstoncontrols.co.uk | ZB4BA331 | 11.352276 | 11.352276 | 1 | In Stock | Schneider | 11.352276 @ Qty: 1+ | ||
| RS Delivers | 656-7199 | 11.616 | 11.616 | 1 | 5 | Schneider Electric | 11.616 @ Qty: 1+ | |||
 | mostelectric.com | ZB4BA331 | 12.35 | 12.35 | 1 | In Stock | SQUARE D/TELEMECANIQUE | 12.35 @ Qty: 1+ | ||
 | Zoro | G9515536 | 12.39 | 12.39 | 1 | In Stock | Schneider Electric | 0.1 | 12.39 @ Qty: 1+ | |
 | Galco | ZB4BA331-SQD | 16.13 | 16.13 | 1 | In Stock | Square D | 16.13 @ Qty: 1+ | ||
 | gordonelectricsupply.com | ZB4BA331 | 16.29 | 16.29 | 1 | In Stock | 10 | SQUARE D | 16.29 @ Qty: 1+ | |
 | Digi-Key | 16613136 | 19.89 | 19.89 | 1 | 9 | Schneider Electric | 19.89 @ Qty: 1+ | ||
| steinerelectric.com | 173231 | 20.34 | 20.34 | 1 | In Stock | Square D? | 20.34 @ Qty: 1+ | |||
| Graybar | 99495953 | 20.832 | 20.832 | 1 | In Stock | Square D (Schneider Electric) | 20.832 @ Qty: 1+ | |||
 | crescentelectric.com | 173751 | 21.69 | 21.69 | 1 | 2 | Schneider Electric | 21.69 @ Qty: 1+ | ||
 | Newark | 17C7069 | 21.79 | 21.79 | 1 | In Stock | SCHNEIDER ELECTRIC | 21.79 @ Qty: 1+ | ||
 | sustainablesupply.com | C1211779 | 23.24 | 23.24 | 1 | In Stock | Schneider Electric | 0.1 | 23.24 @ Qty: 1+ | |
| us.rs-online.com | 70008985 | 23.65 | 23.65 | 1 | 3 | Schneider Electric | 23.65 @ Qty: 1+ | |||
 | blackhawksupply.com | ZB4BA331 | 24.18 | 24.18 | 1 | In Stock | Square D | 24.18 @ Qty: 1+ | ||
 | National Supply Network | 69536233 | 31.8 | 31.8 | 1 | In Stock | Schneider Electric | 31.8 @ Qty: 1+ | ||
 | Raptor Supplies | AG7EWE | 36.604386 | 36.604386 | 1 | In Stock | SCHNEIDER ELECTRIC | 36.604386 @ Qty: 1+ | ||
| industrialrefrigerationparts.com | ZB4BA331 | 47.06 | 47.06 | 1 | In Stock | Schneider Electric | 47.06 @ Qty: 1+ |
