Description:

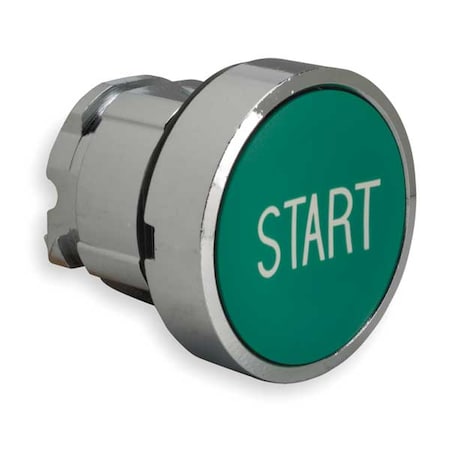

Push Button Operator, 22 mm, Momentary Push, Type of Operator Flush Button, Basic Material Metal, Head Material Aluminum-Zinc Alloy, Bezel Material Chrome Die Cast Aluminum, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating 66, Legend START, Legend/BACKGROUND Color White/Green, Standards CE, CSA, RoHS, UL
Attributes
| Key ^ | Value |
|---|---|
| Action | Momentary Push |
| Basic Material | Metal |
| Bezel Material | Chrome Die Cast Aluminum |
| Cad Overall Depth | 28 mm |
| Cad Overall Height, Cad Overall Width | 29 mm |
| Color | Green |
| Device Short Name | ZB4 |
| Head Material | Aluminum-Zinc Alloy |
| Head Type | standard |
| IP Rating | 66 |
| Item, Product Type | Push Button operator |
| Legend | START |
| Legend/Background Color | White/Green |
| Mounting Diameter, Size | 22 mm |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Number of Operators | 1 |
| Operator Profile | green flush, START white) |
| Standards | CE, CSA, RoHS, UL |
| Type of Operator | Flush Button |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
